XDMA550BT INSTALLATION

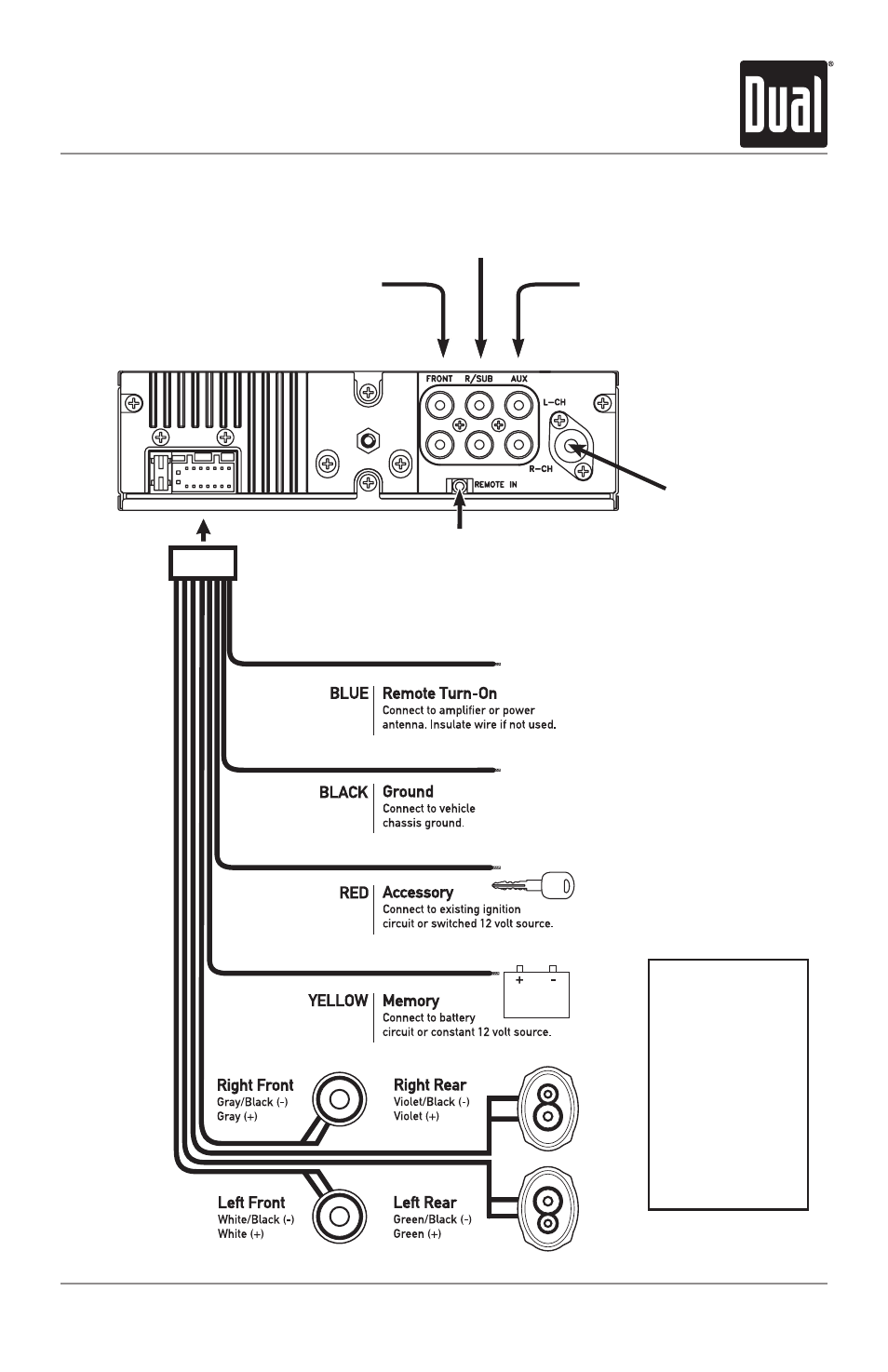

Wiring Diagram
Rear RCA Auxiliary Input
Connect a portable device
Antenna Input
Connect the vehicle antenna
Rear/Sub RCA Output
Connect an external amp
Front RCA Output
Connect an external amp
Steering Wheel Interface Input
(PAC SWI-PS sold separately)
FUSE
When replacing the
fuse, make sure new
fuse is the correct type
and amperage. Using
an incorrect fuse could
damage the radio.
The XDMA550BT uses
one 10 amp ATM fuse
located beside the wiring
connector.
