6
A
ORANGE
BRAKE
BLUE
ORANGE/BLACK
BLUE/BLACK AMP CONTROL
POWER ANTENNA
ILLUMINATION CONTROL
YELLOW
BLACK
A
CAMERA
CAMERA

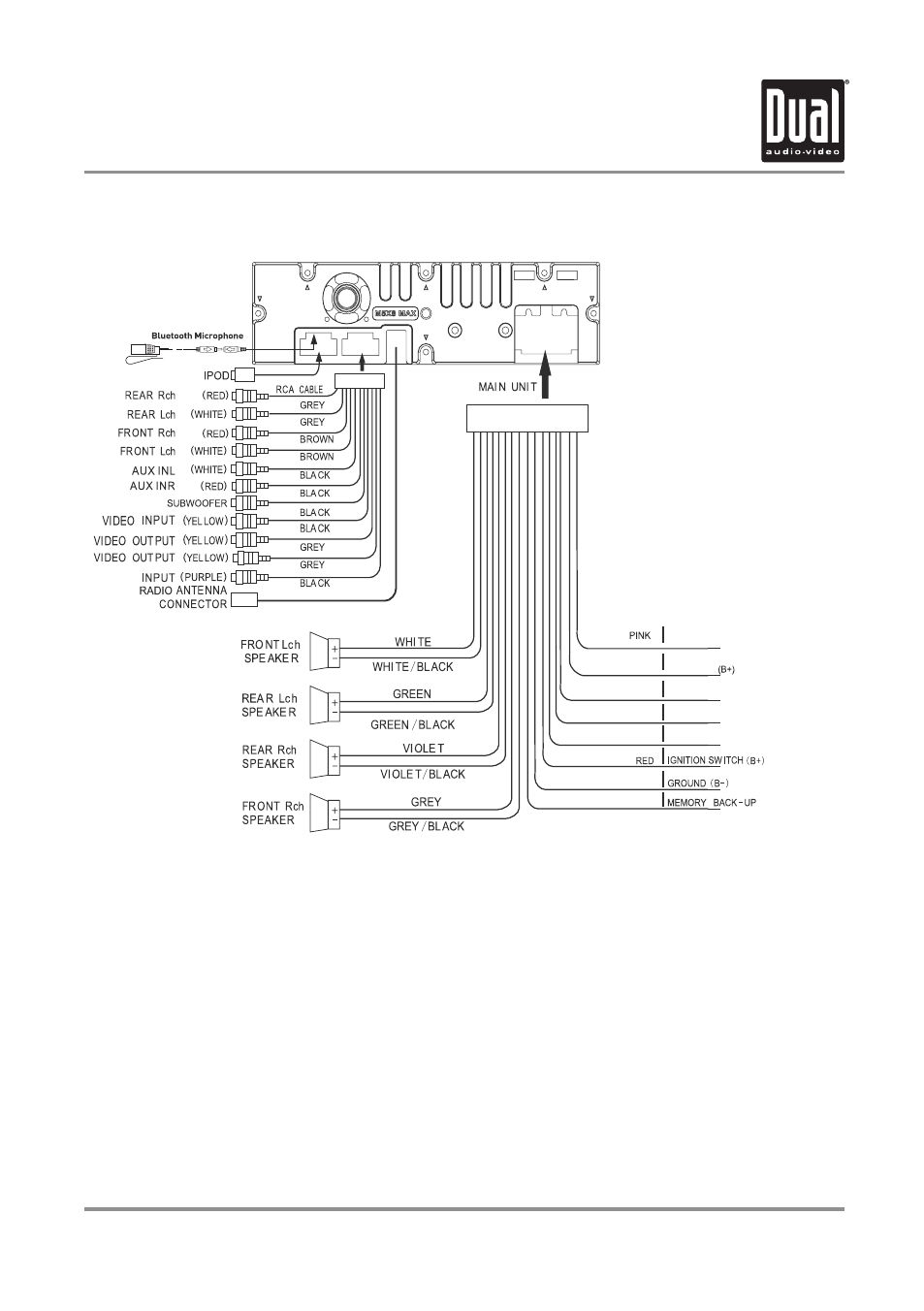

Wiring Diagram - Inputs/Outputs
XDVD1175BT INSTALLATION
Wiring Notes:
Subwoofer output
The Subwoofer preamp audio output (black jacket with green RCA) is active in all audio modes.
Rear camera input
A rear view camera (not included) can be used with the Camera input. Refer to page 29 for details.
Connecting an iPod/iPhone device
To play music from an iPod/iPhone device, connect the included iPod connection cable to the XDVD1175BT. Once
connected, playback will begin automatically.
Note:
When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could damage
the unit. The XDVD1175BT uses (1) 15 amp ATC mini style fuse located on the back of the unit.
