Page 5: Power/ground wire size
5
REMOTE AMP
TURN-ON (REM)
+12V POWER
(BAT+)
18” MAX
VEHICLE GROUND
(GND)
SUBWOOFER (2 OHM MINIMUM)
Single subwoofer connection shown. See page 6 for additional details.
Remote Bass Control
Fuse Rating
When replacing fuses, make sure new fuse
is the correct type and amperage. Using an
incorrect fuse could damage the amplifier.
35 amp ATO x 2
Main Power Connections
Connect +12V, GND and REM wires accordingly. A suitable fuse MUST be installed on the
+12V lead within 18" of the battery for protection of the vehicle’s electrical system.

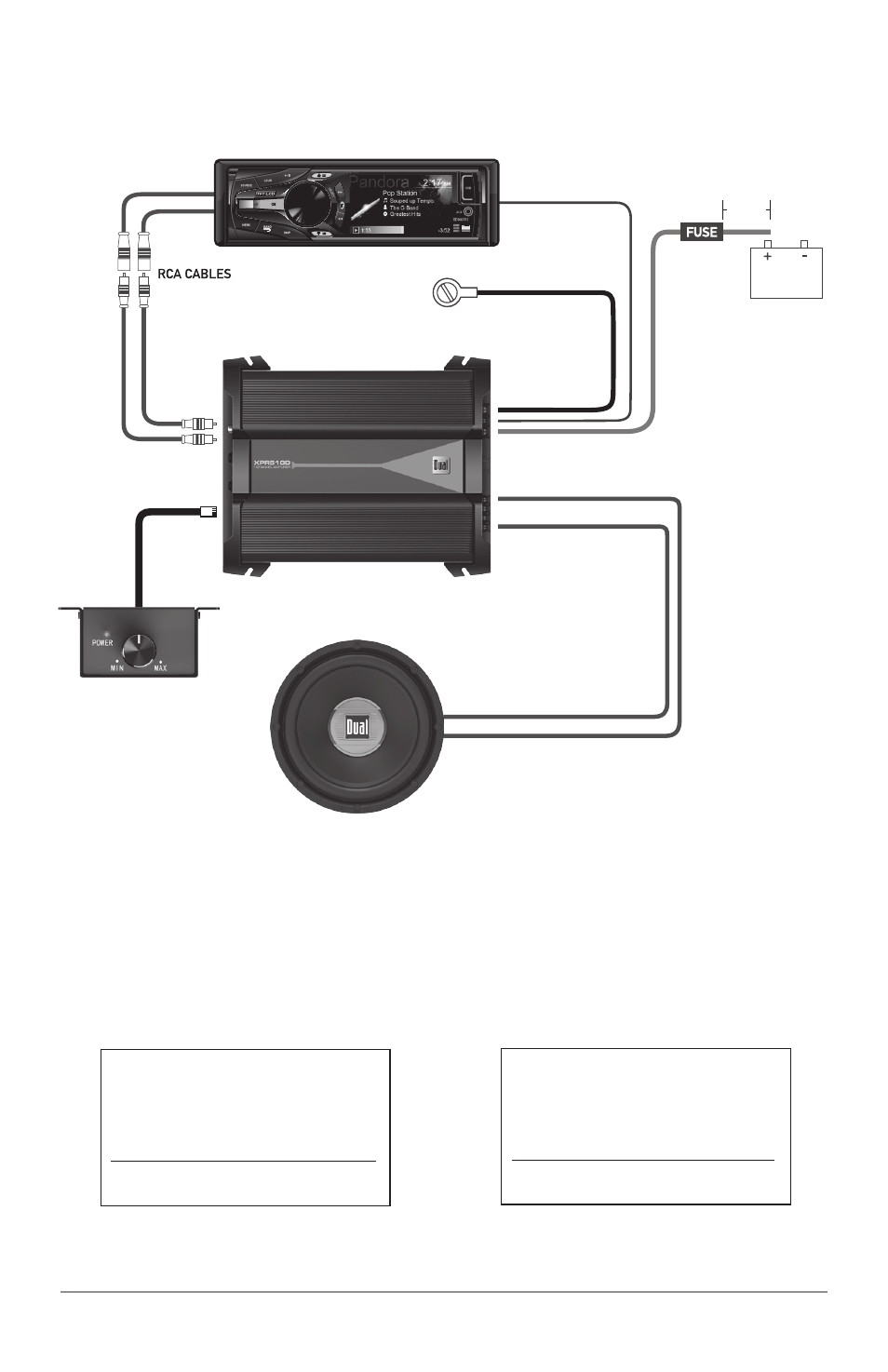

Typical Wire Routing
Power/Ground Wire Size
For optimum performance, use only the wire
size listed below or larger. Make sure to use
the same size power and ground wire.
4 awg
