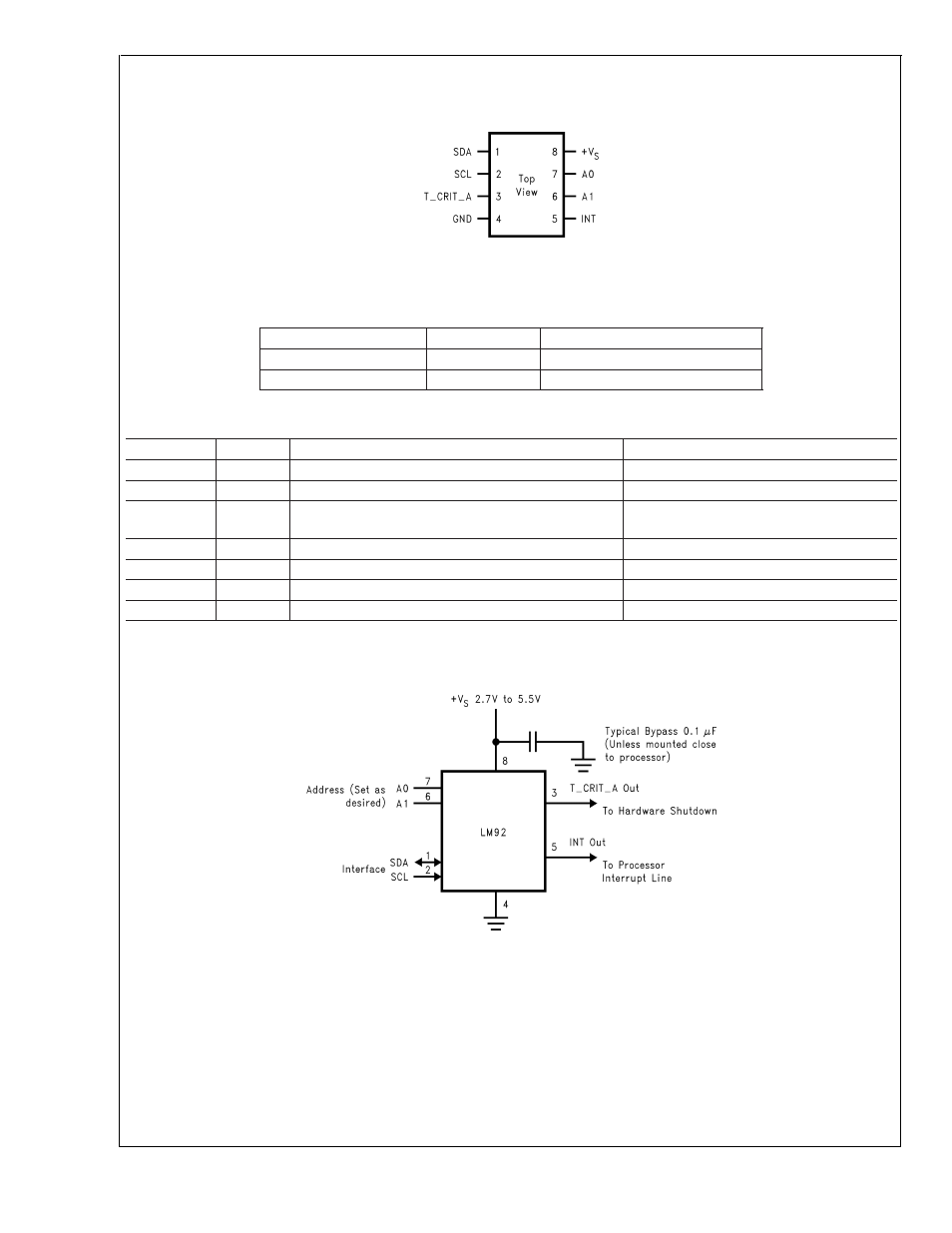

Connection Diagram
Ordering Information
Order Number Supply Voltage Supplied As
LM92CIM 2.7V to 5.5V
LM92CIMX 2.7V to 5.5V 2500 Units on Tape and Reel
Pin Descriptions
Label Pin # Function Typical Connection
SDA 1 Serial Bi-Directional Data Line. Open Drain Output From Controller
SCL 2 Serial Bus Clock Input From Controller
T_CRIT_A 3 Critical Temperature Alarm Open Drain Output Pull Up Resistor, Controller Interrupt Line
or System Hardware Shutdown
GND 4 Power Supply Ground Ground
INT 5 Interrupt Open Drain Output Pull Up Resistor, Controller Interrupt Line
+V
S
8 Positive Supply Voltage Input DC Voltage from 2.7V to 5.5V
A0–A1 7,6 User-Set Address Inputs Ground (Low, “0”) or +V
S
(High, “1”)
Typical Application
SO-8
DS101051-2
LM92
See NS Package Number M08A
DS101051-3
