LUM-512HMU308
LED displays
1/1
16
×
32 dot matrix unit
LUM-512HMU308
The LUM-512HMU308 is a 16
×
32 dot matrix display which can be used in a wide range of applications, including
alphabet, numeric, symbol and graphical displays. A large display can be easily created by arranging a number of these
dot matrix displays in an array, and they can be applied to a variety of display purposes. A custom LSI controller has
display data memory for two screens, and data for each screen can be written and displayed in turn.
!Applications
Light source for displays
!
! ! !Features
1) 16
×
32 dot matrix.
Shape of emitting section : "2.0 ×
2.5
2) Dimensions : 64mm
×
128mm
3) Achieved high brightness by using chip
LEDs with inner lens.
4) Three-color display is possible
(red, green, and orange).
5) 1 / 16 duty dynamic scan method.
6) Ultra-thin shape of 11.3mm, light weight
of 95g and wide directional
characteristics of 100 degrees.

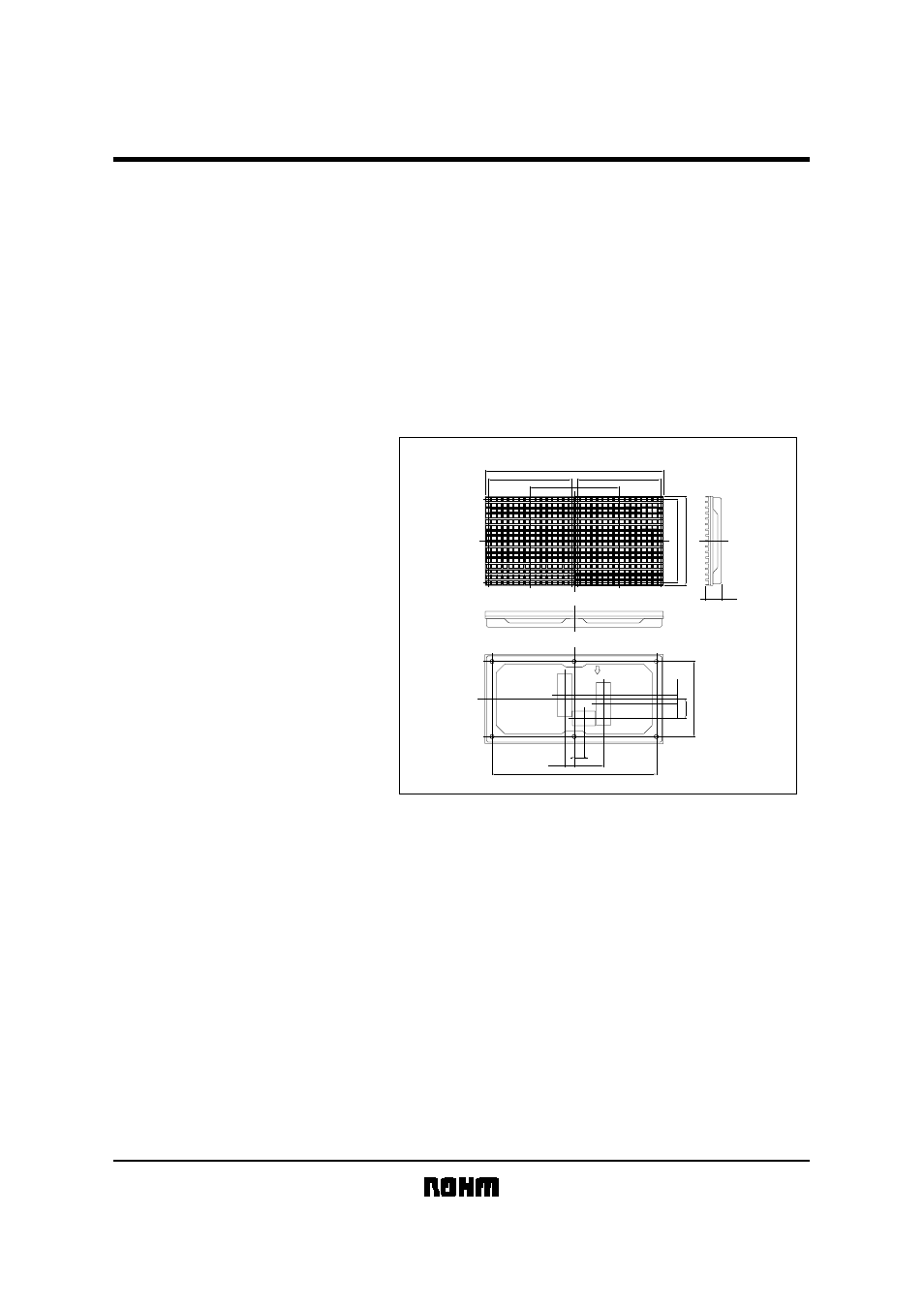

! ! ! !External dimensions (Units : mm)
(2.7)
(3.6)
(14)
(7)
(21) (6.8)
11.3
P4.0X15=60
64
64
P3.98X15=59.7 P3.98X15=59.7
128
54
118
1 6
11
3
1
13
CN3
CN1
CN2
! ! ! !Specifications
For specifications, refer to “LUM unit series”.
(www.rohm.com/products/databook/dp/pdf/lum-unit.pdf)
