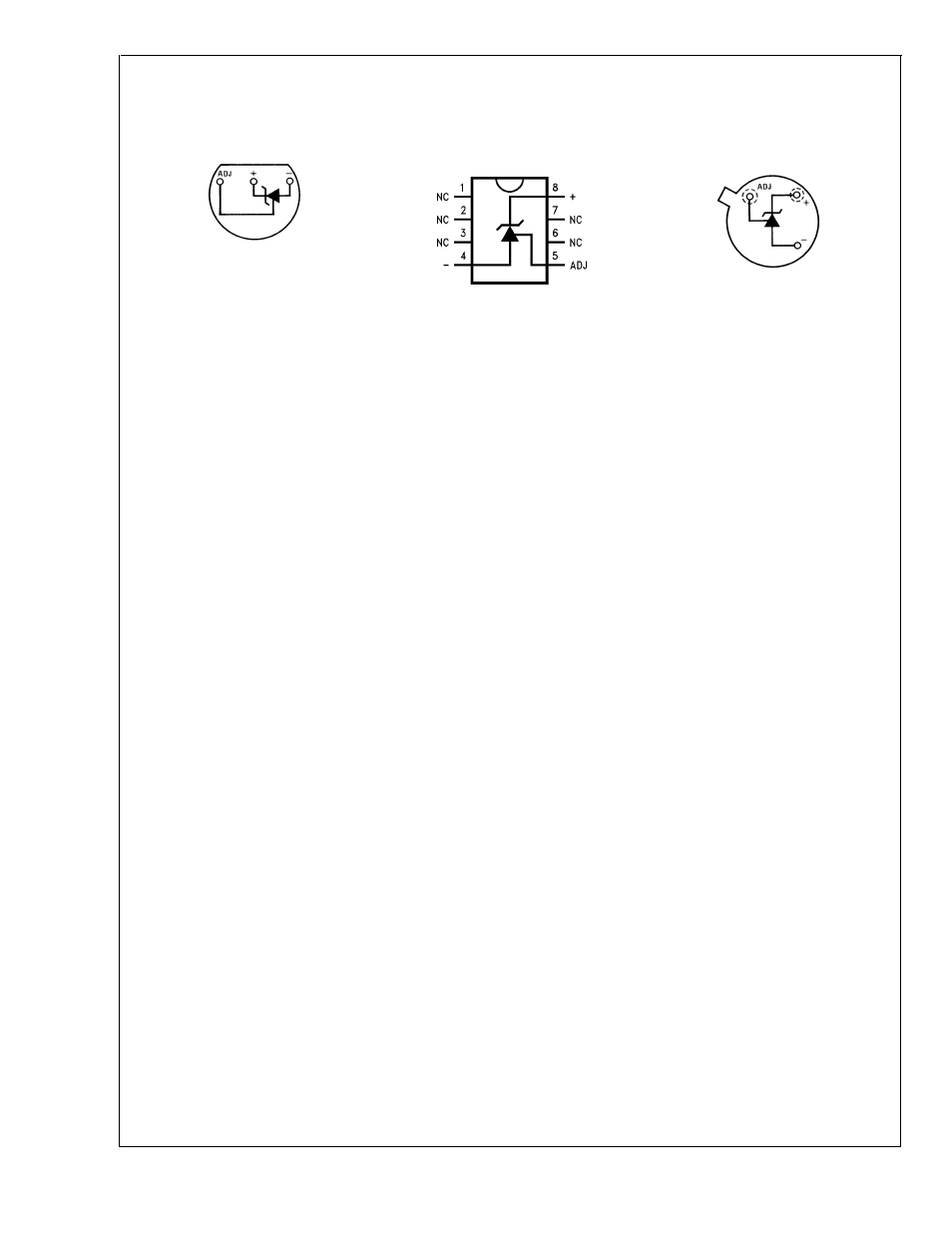

Connection Diagrams

TO-92

Plastic Package

DS005698-8

Bottom View

Order Number LM335Z

or LM335AZ

See NS Package

Number Z03A

SO-8

Surface Mount Package

DS005698-25

Order Number LM335M

See NS Package

Number M08A

TO-46

Metal Can Package*

DS005698-26

*Case is connected to negative pin

Bottom View

Order Number LM135H,

LM135H-MIL, LM235H,

LM335H, LM135AH,

LM235AH or LM335AH

See NS Package

Number H03H

LM135/LM235/LM335,

LM135A/LM235A/LM335A
