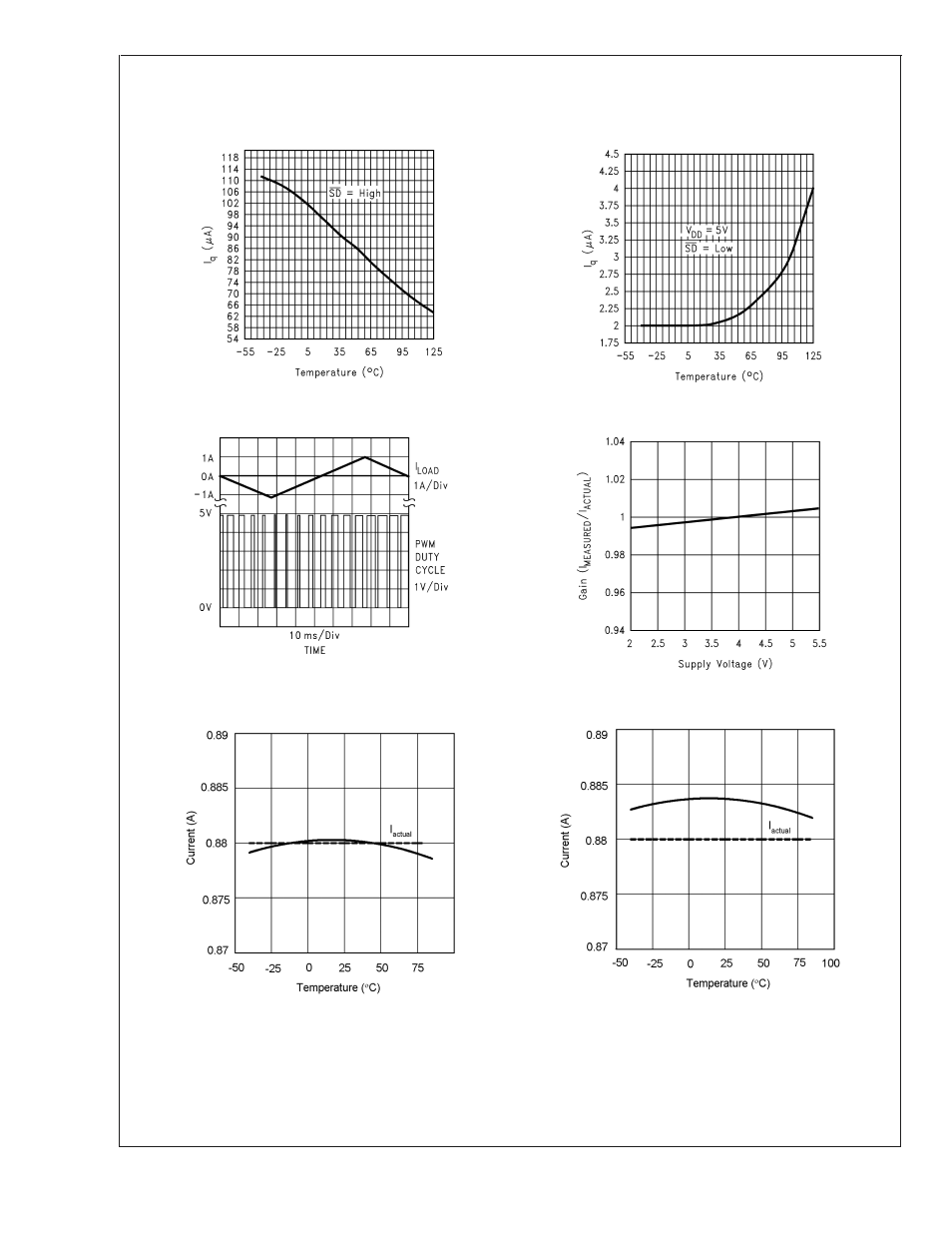

Typical Performance Characteristics
Supply bypass capacitor is 0.1 µF and filter capacitor is
0.1 µF. (Continued)
Operating Current vs Temperature
Shutdown Current vs Temperature
10124919
10124921
Current vs PWM Duty Cycle
Accuracy vs Supply Voltage
10124922
10124928
Accuracy vs Temperature (LM3822-1.0)
Accuracy vs Temperature (LM3822-2.0)
10124936
10124935
Note 10: These curves represent a statistical average such that the noise is insignificant.
LM3822
www.national.com
6
