MAX1444
10-Bit, 40Msps, +3.0V, Low-Power
ADC with Internal Reference
14 ______________________________________________________________________________________
duce the highest level of signal integrity. Consider
using a split ground plane arranged to match the physi-
cal location of the analog ground (GND) and the digital
output driver ground (OGND) on the ADC's package.
The two ground planes should be joined at a single
point so that the noisy digital ground currents do not
interfere with the analog ground plane. The ideal loca-
tion of this connection can be determined experimen-
tally at a point along the gap between the two ground
planes that produces optimum results. Make this con-
nection with a low-value, surface-mount resistor (1
Ω to
5 Ω), a ferrite bead, or a direct short. Alternatively, all
ground pins could share the same ground plane if the
ground plane is sufficiently isolated from any noisy, dig-
ital systems ground plane (e.g., downstream output
buffer or DSP ground plane). Route high-speed digital
signal traces away from sensitive analog traces. Keep
all signal lines short and free of 90° turns.
INPUT
300 Ω
-5V
+5V
0.1 µF
0.1 µF
0.1 µF
C IN
22pF
C IN
22pF
R ISO
50 Ω
R ISO
50 Ω
-5V
600 Ω
300 Ω
300 Ω
IN+
IN-
LOWPASS FILTER
COM
600 Ω
+5V
-5V
0.1 µF
600 Ω
300 Ω
600 Ω
300 Ω
0.1 µF
0.1 µF
0.1 µF
+5V
0.1 µF
300 Ω
MAX4108
MAX1444
MAX4108
MAX4108
LOWPASS FILTER

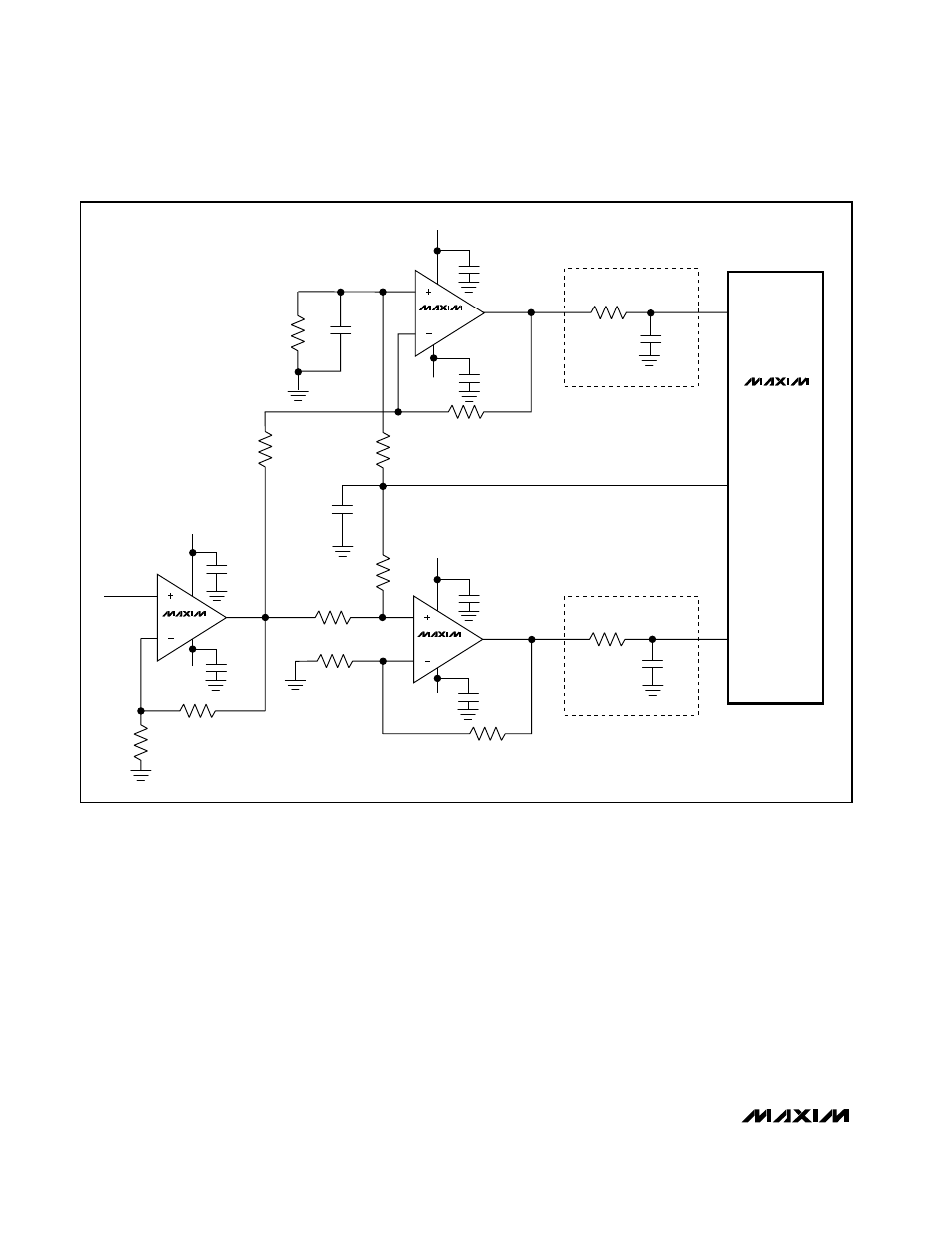

Figure 7. Typical Application Circuit for Single-Ended to Differential Conversion
