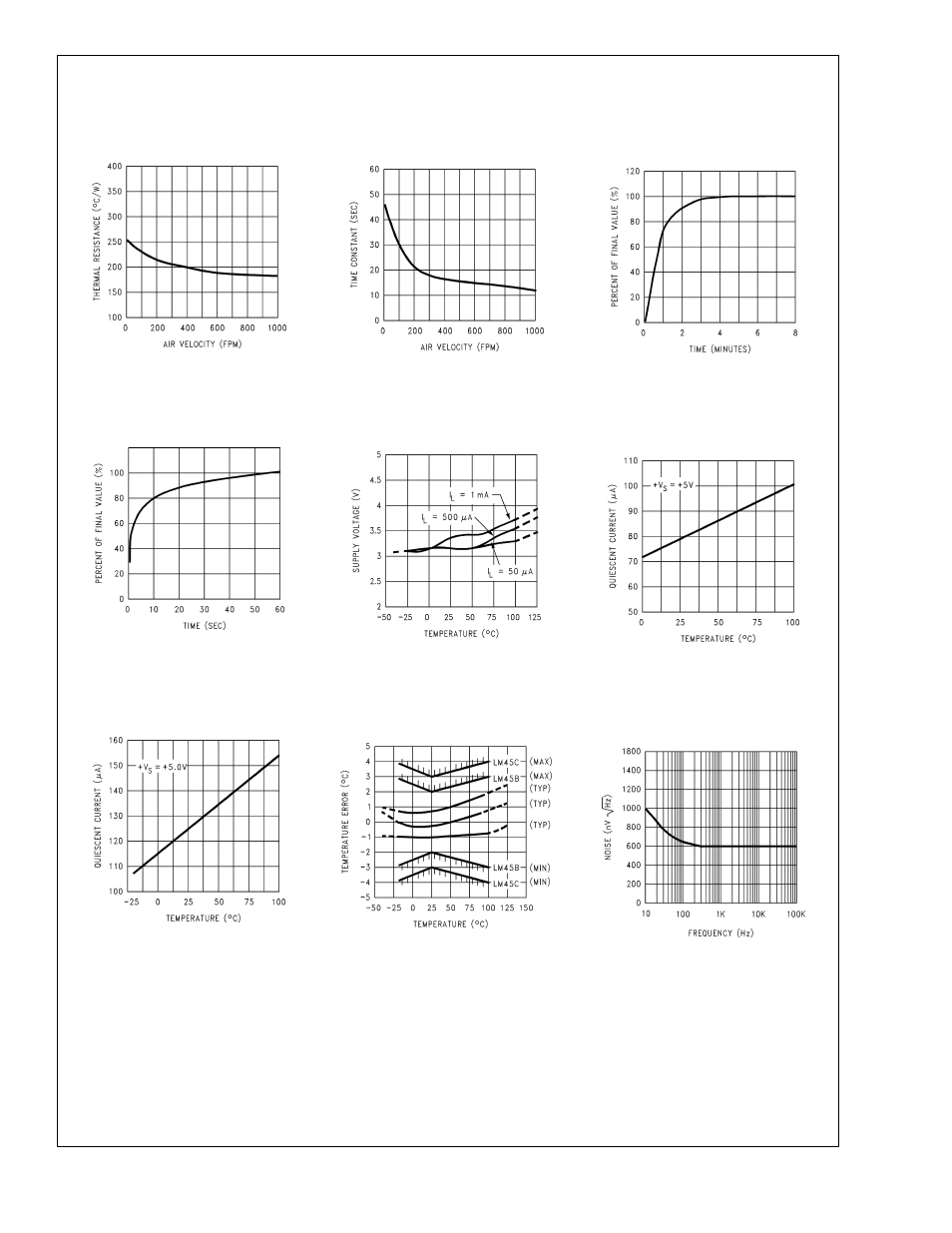

Typical Performance Characteristics
To generate these curves the LM45 was mounted to a printed
circuit board as shown in Figure 3.
Thermal Resistance
Junction to Air
DS011754-24
Thermal Time Constant
DS011754-25
Thermal Response in Still Air
with Heat Sink (
Figure 3)
DS011754-26
Thermal Response
in Stirred Oil Bath
with Heat Sink
DS011754-27
Start-Up Voltage
vs Temperature
DS011754-28
Quiescent Current
vs Temperature
(In Circuit of
Figure 1)
DS011754-29
Quiescent Current
vs Temperature
(In Circuit of
Figure 2)
DS011754-30
Accuracy vs Temperature
(Guaranteed)
DS011754-31
Noise Voltage
DS011754-32
