DS60
4 of 4 102299

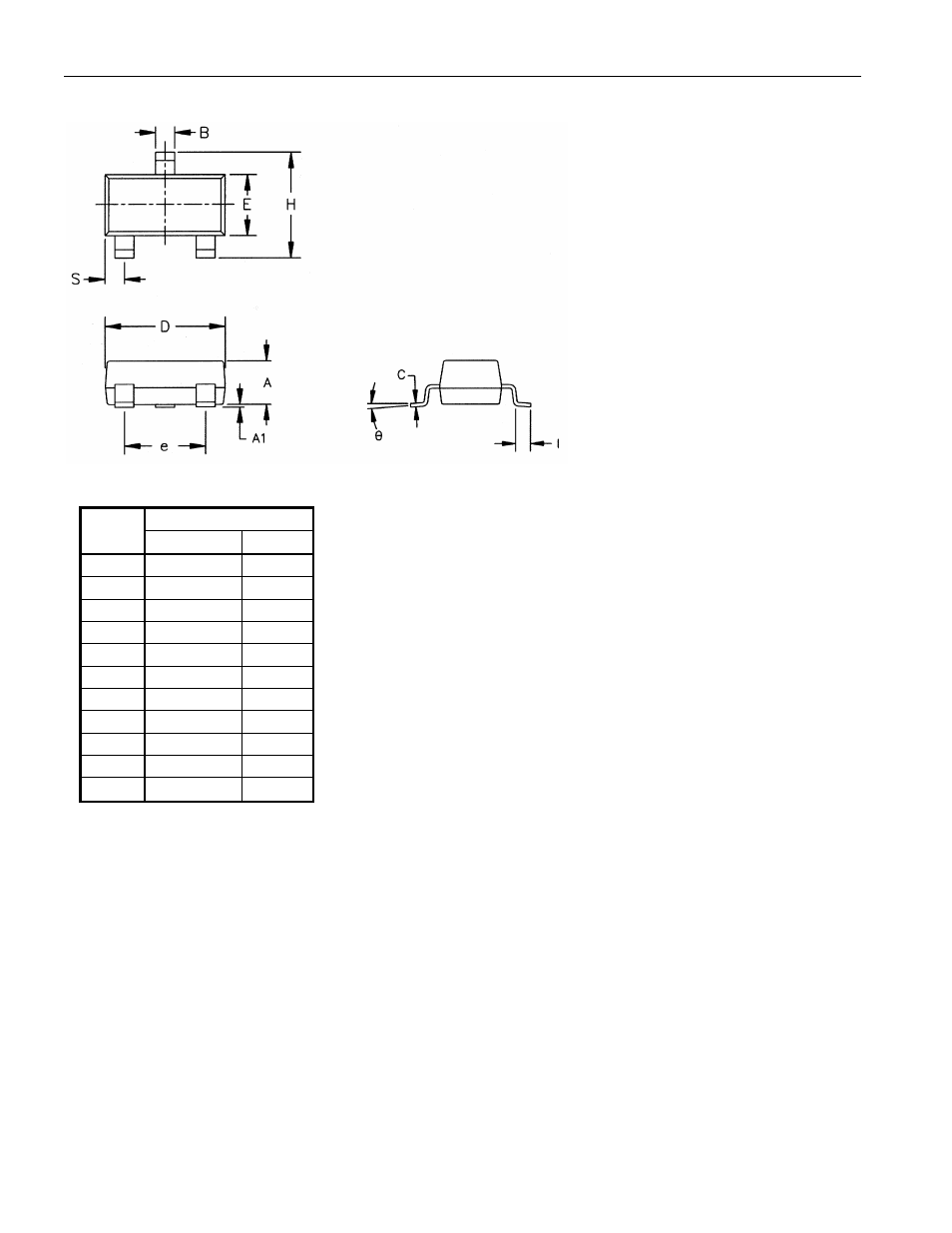

DS60 PHYSICAL DIMENSIONS
INCHES
LTR
MIN MAX
A 0.030 0.040
A1 0.001 0.006
B 0.015 0.022
C 0.003 0.008
D 0.100 0.120
E 0.040 0.060
e 0.070 0.085
H 0.080 0.100
I 0.005 0.015
S 0.015 0.025
Θ
0° 8°
56-G2017-001
NOTES:
1. PACKAGE OUTLINE EXCLUSIVE OF ANY MOLD
FLASHES DIMENSION.
2. PACKAGE OUTLINE EXCLUSIVE OF BURR
DIMENSION.
