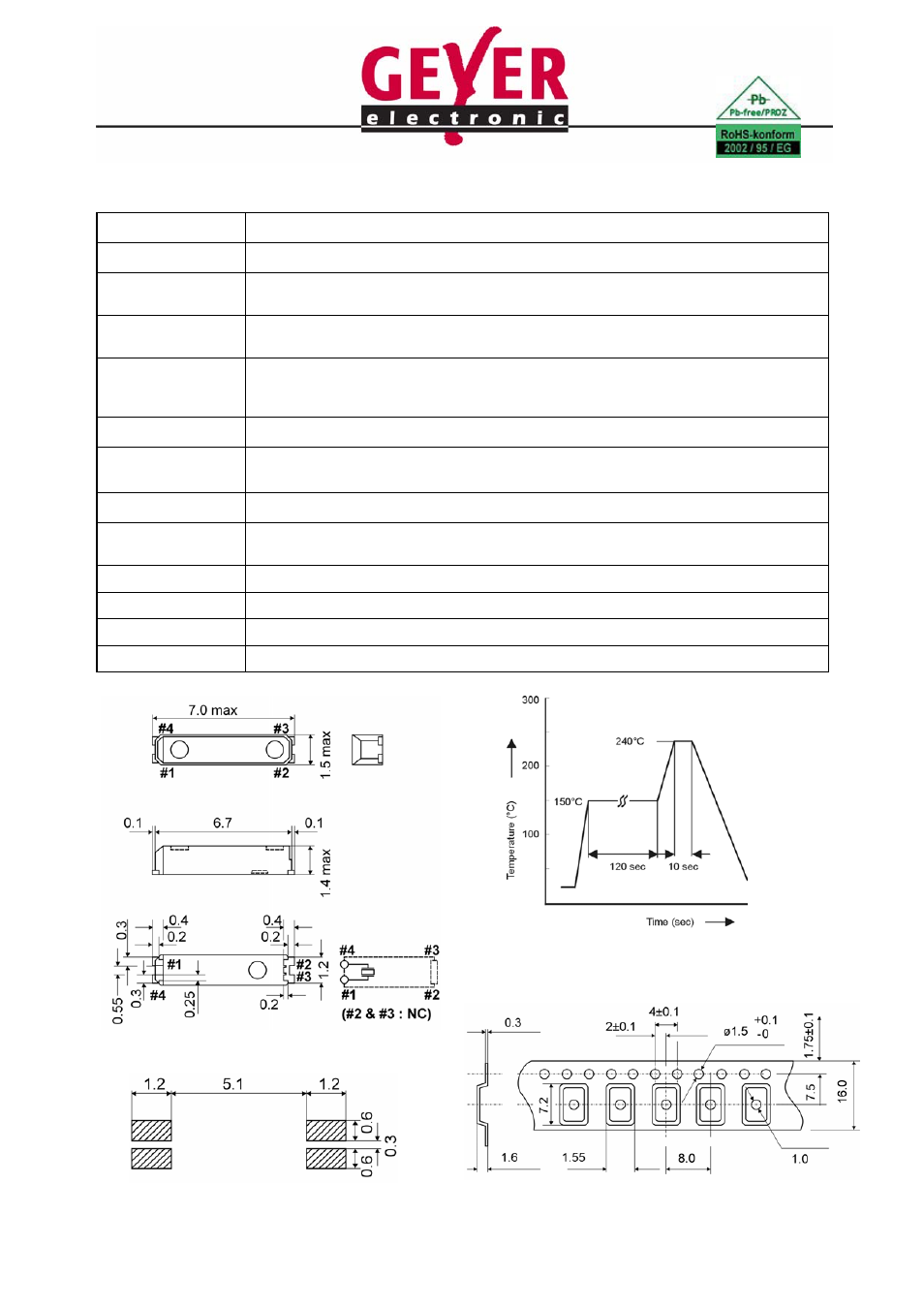

Rainbow Electronics KX-327 L - Manual

GEYER ELECTRONIC Lochhamer Schlag 5 82166 Gräfelfing/München
Tel. 089/546868-0 Fax 089/546868-91 [email protected]
05.07.2005
QUARTZ CRYSTALS
32,768 kHz SMD-version
model KX – 327L
frequency 32,768 kHz
operating temperature standard -20° ~ +70°C
available -40° ~ +85°C (= KX-327LT)
frequency tolerance
at +25°C
± 20 ppm
temperature tolerance
at -20° ~ +70°C
-40° ~ +85°C
-0,035 ppm/°C 2 typ
load capacitance CL 12,5 pF, available 7pF
series resonance
R1 max.
65k Ohm
aging ( first year ) ± 3 ppm
shunt capacitance
Co typical
0,8 pF
drive level in mW 0,01
lead-free started from date code May, 2005
contents of reel 3000 pcs.
order no. 12.87110 ~ 12.87149
reel diameter 330 mm
soldering condition
suggested soldering pad
