Regulator ICs
Reference voltage power supply
BA3933
The BA3933 is a monolithic reference voltage power supply IC for use in CD radio cassette players.
F
Applications
CD radio cassette players, mini-component stereo audio systems
F Features
1) With 7.5V output for audio power supply, 5V output
for microcontrollers, 5V output for radio 5 and 7.5V
outputs for CD players, 9V output for motor drivers,
the IC is best suited for CD radio cassette players.
2) Precise power supply (5V
±
0.1V) can be obtained by
using external reference voltage input (only AUDIO
output has an internal reference voltage system).
3) Zero standby current. (Typ.)
4) Output current limit circuit protects the IC against
short-circuiting damage.
5) Compact SIP-M12 package allows a large power dis-
sipation (3W: no heat sink).
6) Thermal protection circuit prevents heat damage to
the IC.

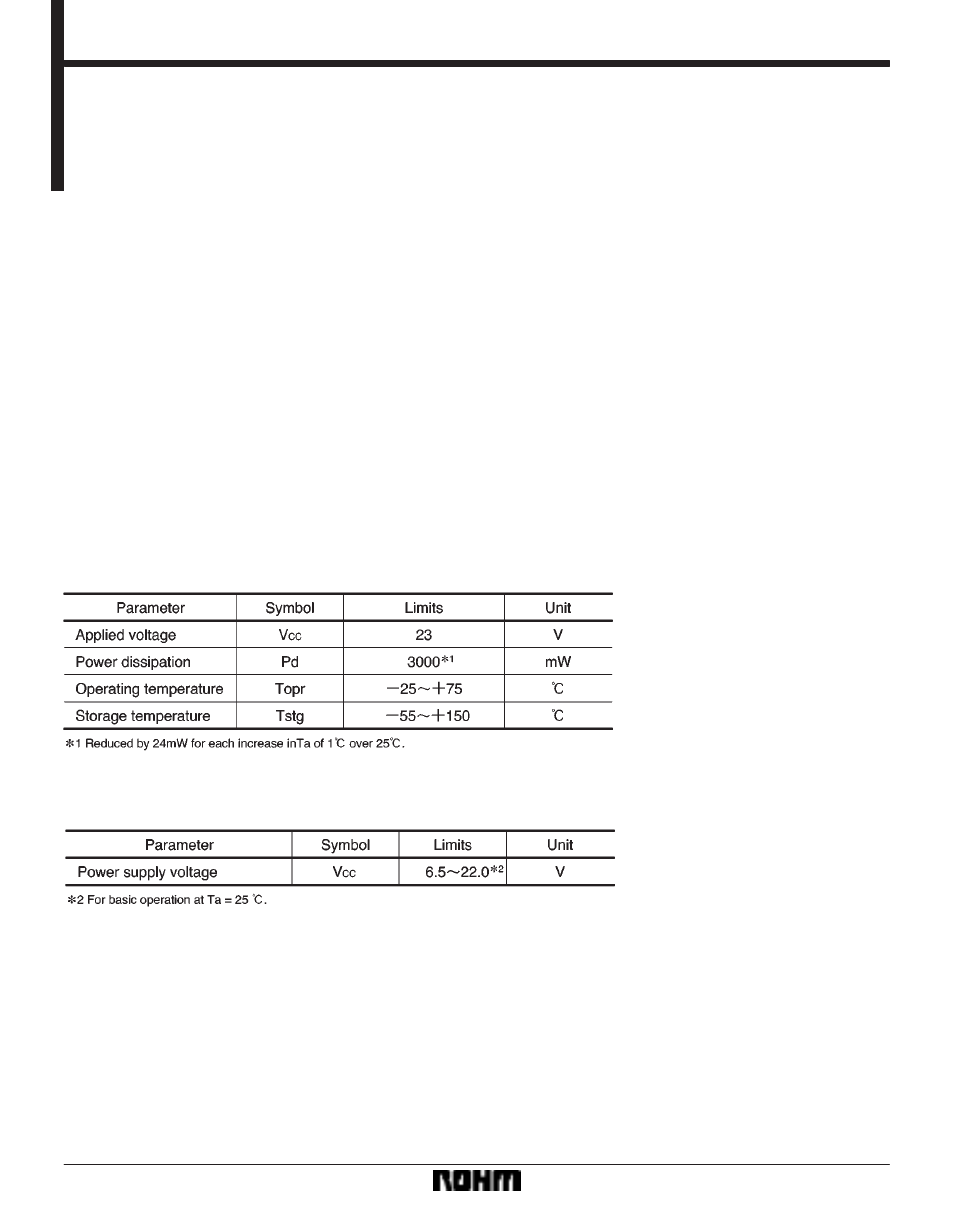

F Absolute maximum ratings (Ta = 25 _ C)
F Recommended operating conditions (Topr = 25 _ C)
