12
Bypass modes and Kill-Dry on/off
Unscrew the back-plate and look for the two small dip-switches in the upper left corner.
The upper dip-switch (closest to the DC 9V in connection), switches between True Bypass mode
(default) and Buffered Bypass mode.
True Bypass – is a hardwire bypass that gives absolutely no coloration of tone when the pedal
is bypassed. Using True Bypass on all pedals is a perfect choice in setups with a few pedals and
relatively short cables before and after the pedals.
Buffered Bypass – If you use a long cable between your guitar and the first pedal, if you use many
pedals on your board and if you use a long cable from your board to the amp, then the best solution

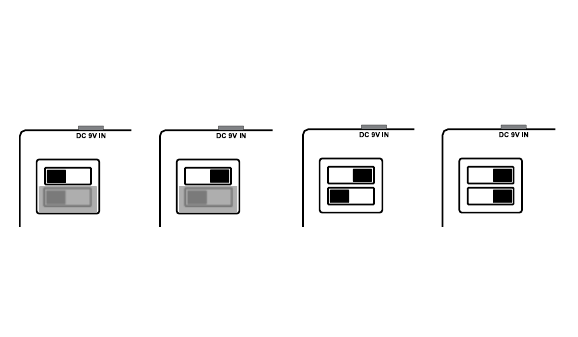

True Bypass Buffered Bypass Kill-Dry - off Kill-Dry - on
