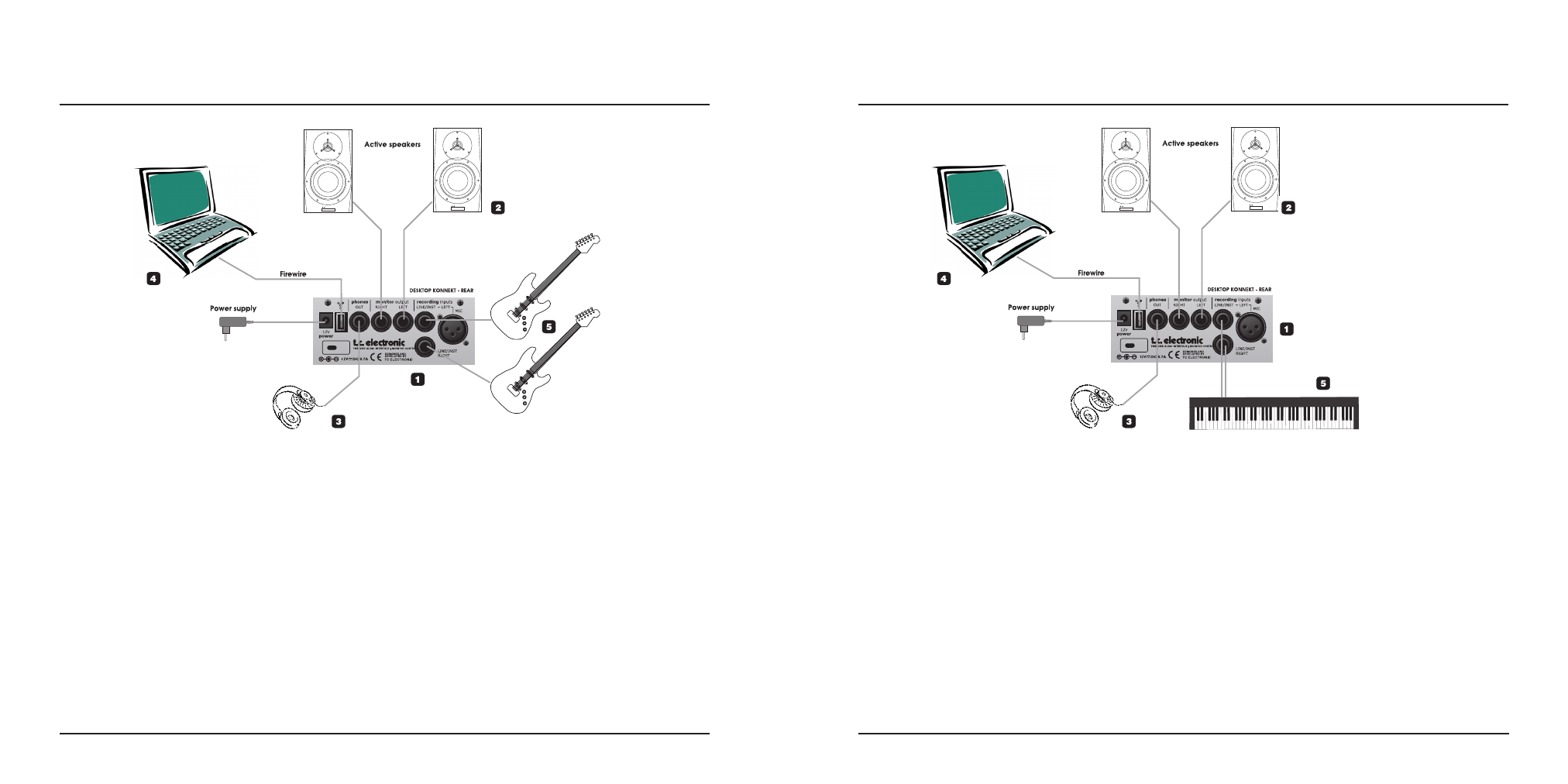

TYPICAL SETUPS: DUAL INSTRUMENT TYPICAL SETUPS: STEREO IN
9 8
Separate level control is ideal such as when you are
in the control-room and a singer in the recording room
needs a different headphone level.
Linked level control is ideal if you record yourself
in front of the computer using headphones, simply
because of using the big volume knob is more
comfortable.
4 Computer
Use the Desktop Konnekt 6 with a laptop or desktop
computer with a FireWire interface. Please read the
“System requirements” section in this manual for
information on minimum requirements.
5 Instruments
Connect a guitar, a bass or a line level instrument
here.
1 Desktop Konnekt 6 – Rear Panel
This is the rear panel view of the Desktop Konnekt 6.
2 Active Monitors
In this setup, we use a set of active monitors
connected to the Monitor outputs. Of course, you
can also connect your Desktop Konnekt 6 to a pair
of channels on a mixer or directly to a hi-fi amplifier
instead.
3 Headphones
Use this jack to connect a set of headphones. You
have a couple of choices when it comes to controlling
the level of the headphones output. By default, the
PHONES knob on the front panel controls the phones
level. However, via the Setup page it is possible to link
the phones level to the big volume knob on the front
panel.
Separate level control is ideal such as when you are
in the control-room and a singer in the recording room
needs a different headphone level.
Linked level control is ideal if you record yourself
in front of the computer using headphones, simply
because of using the big volume knob is more
comfortable.
4 Computer
Use the Desktop Konnekt 6 with a laptop or desktop
computer with a FireWire interface. Please read the
“System requirements” section in this manual for
information on minimum requirements.
5 Stereo Source
Here, we have connected a keyboard as a stereo
source.
1 Desktop Konnekt 6 – Rear Panel
This is the rear panel view of the Desktop Konnekt 6.
2 Active Monitors
In this setup, we use a set of active monitors
connected to the Monitor outputs. Of course, you
can also connect your Desktop Konnekt 6 to a pair
of channels on a mixer or directly to a hi-fi amplifier
instead.
3 Headphones
Use this jack to connect a set of headphones. You
have a couple of choices when it comes to controlling
the level of the headphones output. By default, the
PHONES knob on the front panel controls the phones
level. However, via the Setup page it is possible to link
the phones level to the big volume knob on the front
panel.
