Page 13
13

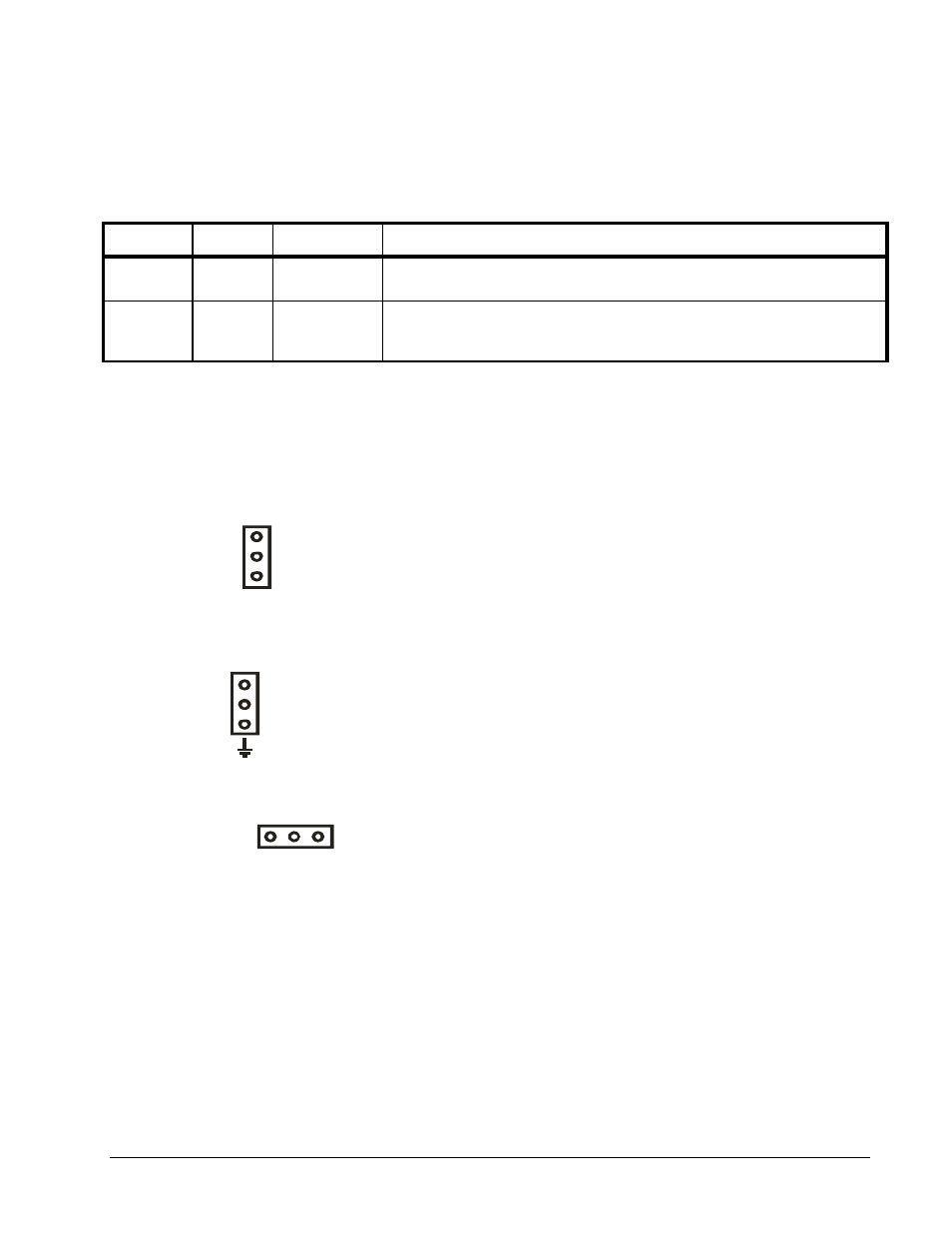

LEDs
The front-edge of the card features LEDs that display the status of the input signals.
Descriptions are provided in the following table:
LED
Color
Location
Display and Description
SYNCH
Green
Top of the
card
When illuminated there is a valid analog signal at the input.
NO
SYNCH
Green
Second
from the
top
When illuminated there is not a valid analog signal at the input.
Table 1. Status LED Descriptions
Jumper Settings
HI Z
TERM
Selects the input termination, either high impedance or 75 Ohms.
BAL
Selects between a balanced and differential input configuration.
ON
CLAMP
OFF
Turns clamping circuit on or off.
