Remote control, Dashboard control system software – Cobalt Digital COMPASS 9257 1x9 MADI Audio Distribution Amplifier User Manual
Page 13
9257 Owner’s Manual
••••
(V 1.2)
Page 13
Remote Control
DashBoard Control System Software
The DashBoard Control System enables you to monitor and control openGear
®
frames and controller
cards from a computer. The DashBoard software and manual can be downloaded from the Cobalt
Digital Inc. website.
Using the Menus
You must first install the DashBoard Control System software on your computer. Refer to the
DashBoard User Manual for software installation procedures and for using the DashBoard interface.
DashBoard Display

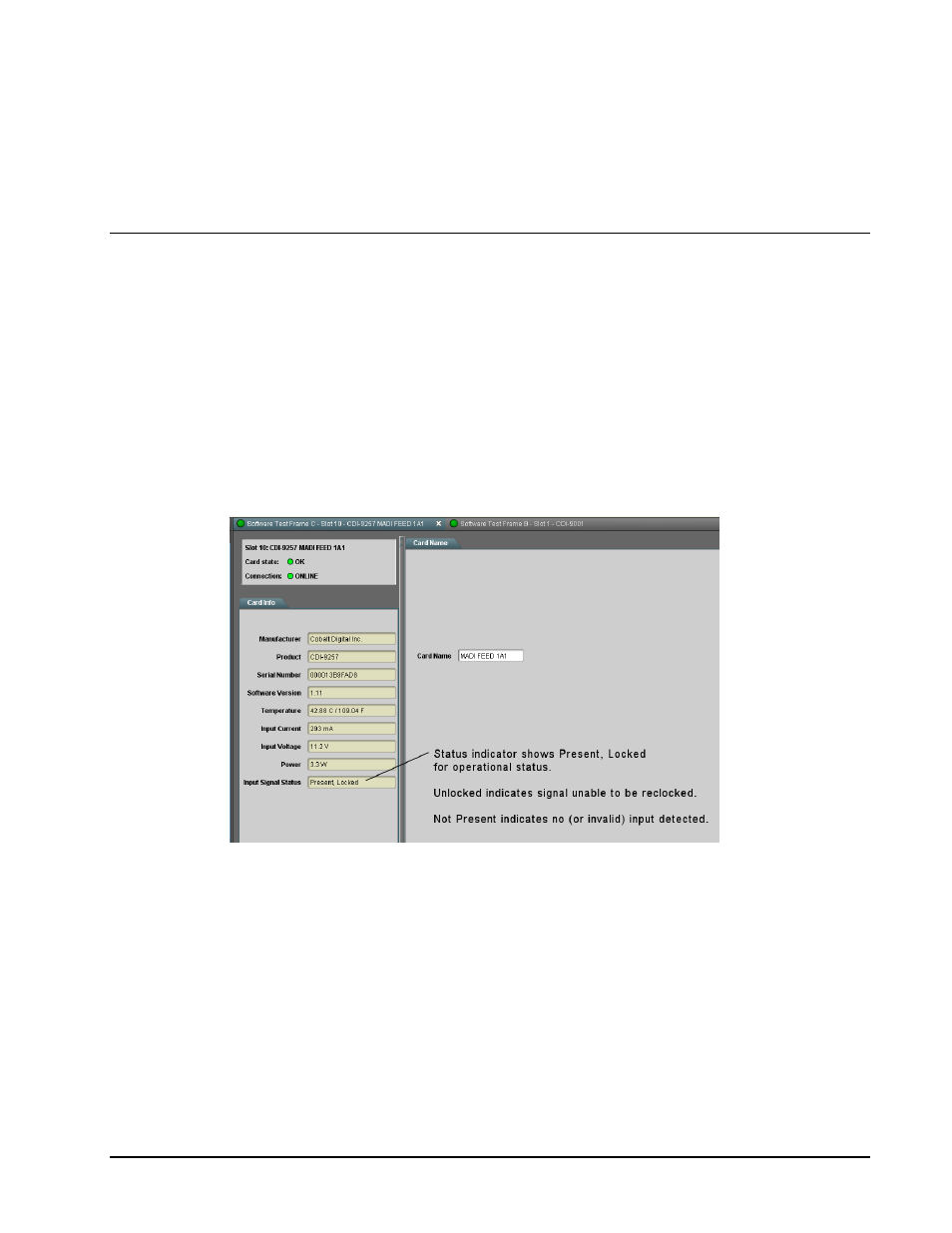

Shown below is an example of the 9257 card display in DashBoard. The Input Signal Status field
shows status as described in the illustration.
