Functional block diagram – Cobalt Digital COMPASS 9003 Dual 3G_HD_SD Reclocking Distribution Amplifier User Manual
Page 7
9003 Owner’s Manual
••••
(V 1.6)
Page 7
4)
Failover mode: Input 1 Æ Output A&B, until Input 1 loses lock, then Input 2 -> Outputs A&B
if input 1 is restored the card uses it again.
The 9003 can equalize and reclock incoming SDI signal using up to 300m of cable at 270 Mbps, up to
120m of cable at 1.585 Gbps, and up to 100m of cable at 3 Gbps (1694A cable).

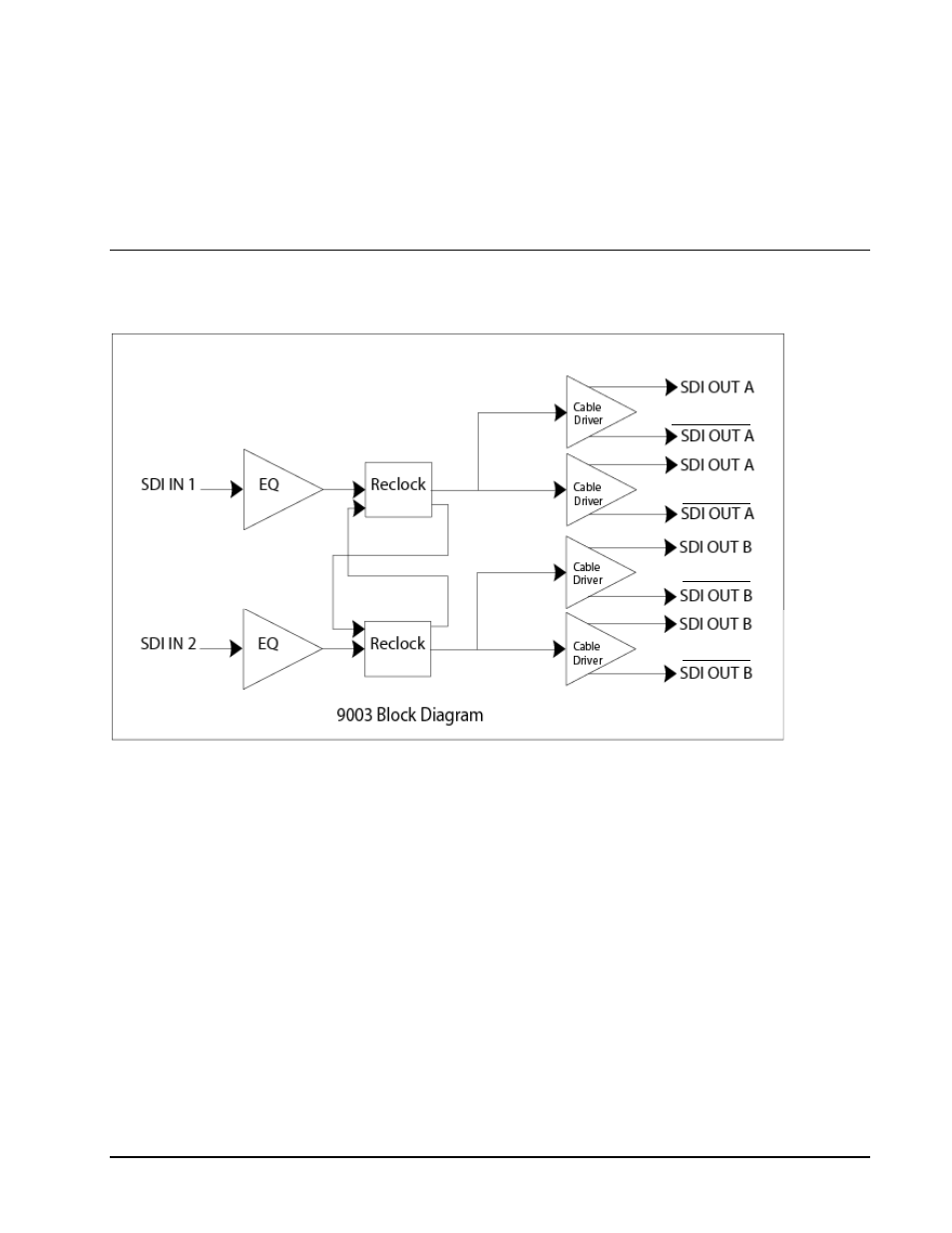

Functional Block Diagram
