UNPACKING
When you open the shipping container, you will find
that the ShrimpPro is fully assembled and ready to
cut medium-sized shrimp (16/20 to 36/40). In the
carton, you will also find two Depth Cut Rollers,
differing in width. If you wish to cut small or large
shrimp, you must replace the already mounted
medium Roller (Item number 4 in the exploded view
drawing of Page 7) with the appropriate alternate
(the wider Roller for larger shrimp and the narrow
one for small shrimp). The procedure for
replacement is given on page 3.
Two 9/16
” open end wrenches, used for Cutting
Blade replacement or cleaning, and a bottle
of lubricant with a dropper top are also packed with
the ShrimpPro. This is a food-grade lubricant which
is approved for incidental contact with food.
Examine the ShrimpPro for possible shipping
damage. Remove the Cutting Guard and inspect
cutting area components (see exploded view
drawing). The Cutting Guard (Item number 2)
may be removed by first unscrewing the Depth
Adjustment Knob (Item 1) and then pulling the
Guard away from and off of the machine.
When removing the Guard, make sure that the
Adjustment Knob Washer (Item 3) remains on
the Guard (Item 2). If any damage is noted,
immediately notify both the shipping company
and the manufacturer.
•
READ ALL INSTRUCTIONS
•
NEVER immerse the power unit in water or
other liquid. Severe electrical shock can result.
•
CLOSELY SUPERVISE nearby children when
using ShrimpPro.
•
DO NOT operate the ShrimpPro outdoors.
•
DO NOT attempt to operate the ShrimpPro if
the unit has been dropped or if power cord or
power plug have been damaged. Return it for
repair. (See SERVICE.) There are no user
serviceable parts.
•
DO NOT operate when wearing loose clothing
or accessories (bracelet, neck chain, necktie,
scarf, etc.). These could be caught by the
rotating Discs and cause injury. Loose hair
should be pulled back and secured.
•
MAKE SURE that the power cord is unplugged
before removing Cutting Guard.
•
AVOID touching the moving Discs. They could
grab your fingers and draw them into the cutter.
•
THE SHRIMPPRO is equipped with a power
cord with a three-blade plug. Plug this ONLY
into a matching 120 volt A.C. three-blade outlet.
DO NOT cut off the third blade or attempt to
use with a two-blade extension cord. If you are
too far from the outlet, use a three-wire
extension cord of adequate power rating (see
specifications), obtainable at almost any
hardware store.
•
UNPLUG the machine when not in use, before
attempting to clean, when changing Blades or
when making any adjustments to the Discs.
Pull only on the plug, never on the cord.
•
MAKE SURE that the power switch is in the
‘OFF’ position before plugging-in or unplugging
the power cord.
•
DO NOT attempt to use with unauthorized
attachments or for any application other than
that for which the unit was designed. Such
use could create a hazardous situation or
cause personal injury to the user.
•
DO NOT operate on or near hot surfaces or
appliances used for cooking.
•
DO NOT let power cord hang over edge of
table or counter.
•
WHEN NOT IN USE, store the unit in a safe
place where it will not be a hazard to
passers-by.
•
ALWAYS store with Cutting Guard securely
attached so that the blade is covered for safety.
•
NEVER attempt to lift ShrimpPro by its Cutting
Guard. Always lift from under the base.
SAVE THESE INSTRUCTIONS
INSTRUCTIONS FOR USE & CARE
IMPORTANT SAFEGUARDS

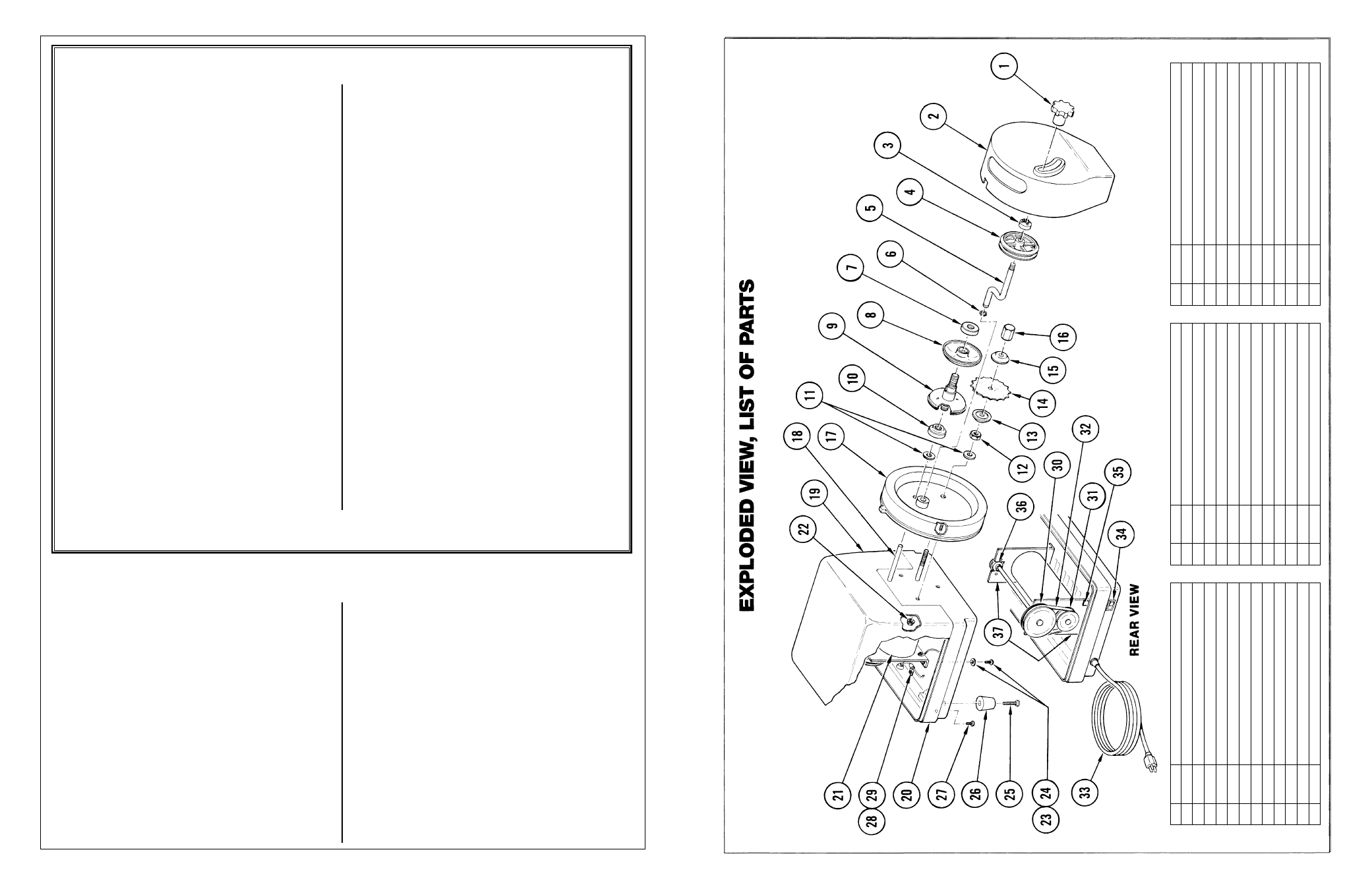

7
1
2
3
4
5
6
7
8
9
10
11
47137
55981
45184
46959
46960
46961
55970
46328
56017
55979
55974
56016
45409
Depth Adjustment
Knob
Cutting Guard
Cutting Guard W
asher
Depth Cut Roller (Medium)
Depth Cut Roller (Large)
Depth Cut Roller (Small)
Idler Shaf
t
Ret
ainer S
pring
Jam Nut
Female Feeder Disc
Male Feeder Disc
Pipe Thread
Nut
Shaf
t Seal
12
13
14
15
16
17
18
19
20
21
22
23
24
45073
55976
55977
55976
56009
55969
55961
55973
55968
47488
46069
46698
45180
Hex Nut, 3/8 - 16
Blade Support W
asher
Cutting Blade
Blade Support W
asher
Blade Holder Nut
Front Plate
Feeder Disk Shaf
t
T
op Housing
Bottom Housing
Motor
Thread Cutting Nut
Screw
, #10 - 32 x 3/8”
W
asher
, #10 Lock
25
26
27
28
29
30
31
32
33
34
35
36
37
46666
46949
46665
46663
46958
46955
46956
46957
47481
47482
55983
46953
55960
Screw
, #10 - 16 x 1”
Leg
Screw
, #8 x 3/4”
Screw
, #10 x 3/8”
Cable Clamp
Drive Pulley (Large)
Drive Pulley (Small)
Drive Belt
Cordset
Power Switch
Rectifier
Bearing
Mounting Bracket
Part
s List
