Peak Handrail Assembly

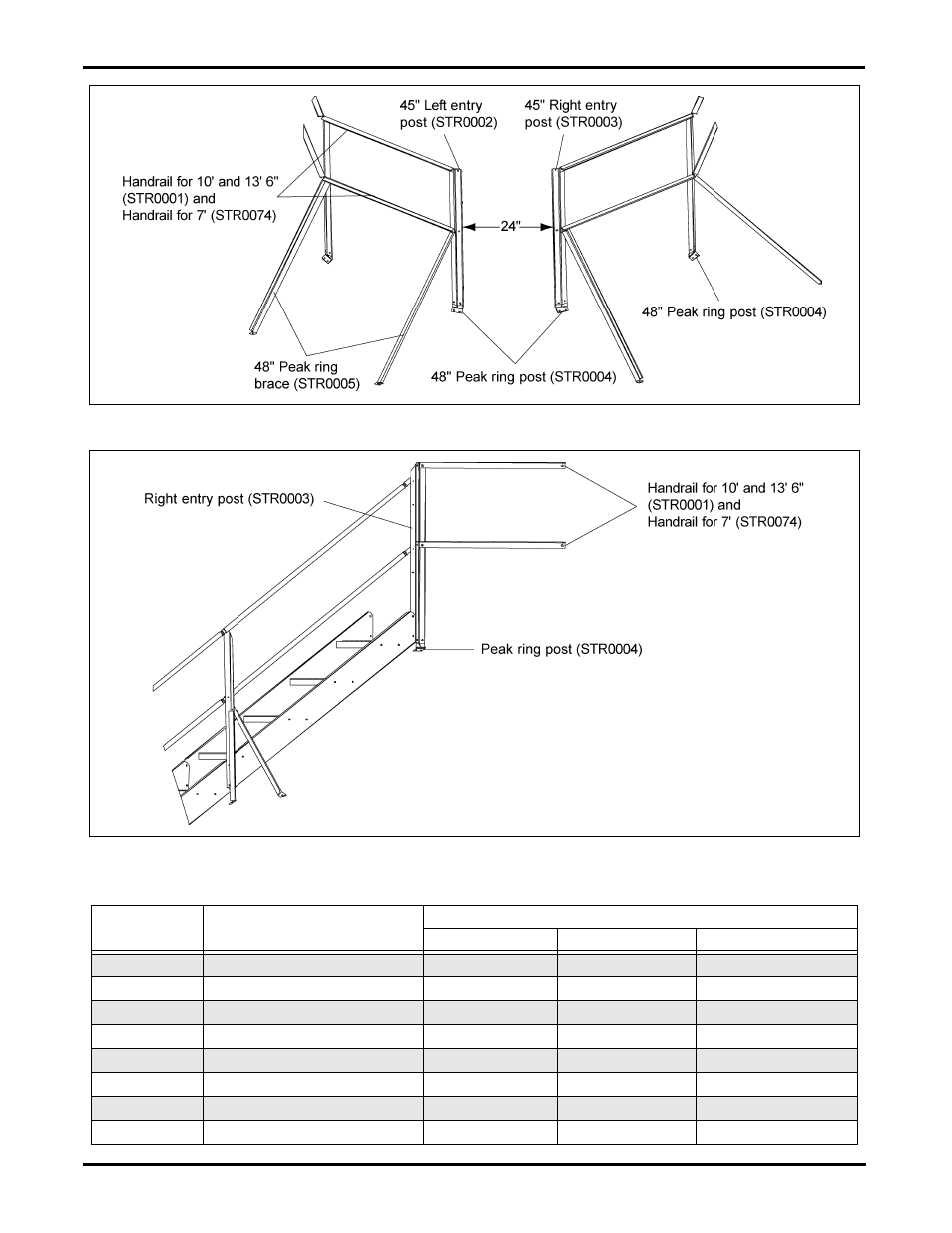

Figure 2

Figure 3

Parts Chart for 7', 10' and 13' 6" Diameter Handrail

Part #

Description

Qty

For 7' (STR1013)

For 10' (STR1014)

For 13' 6" (STR1015)

STR0001

42" Handrail

-

16

22

STR0002

Entry Post Right 45"

1

1

1

STR0003

Entry Post Left 45"

1

1

1

STR0004

Peak Ring Post 48"

8

9

12

STR0005

Peak Ring Brace 48"

8

9

12

STR0006

10' Hardware Package

1

1

-

STR0007

13' 6" Hardware Package

-

-

1

STR0074

7' Handrail - 33"

14

-

-

NOTE: The peak ring brace is omitted when stairs are used.
