PNEG-1829 48' Dura-Lok Plank and Support Manual
6. Layouts

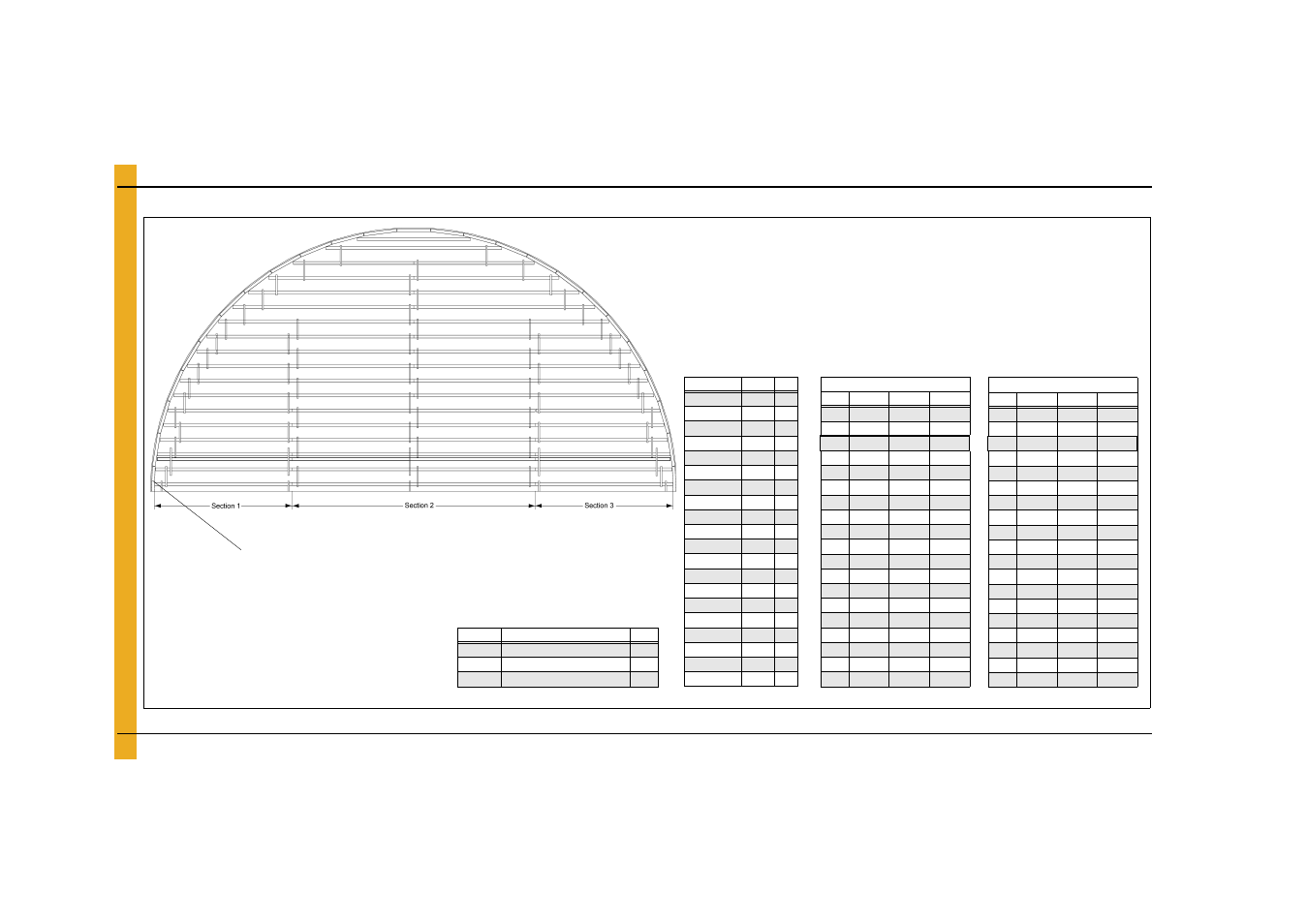

48'-16" Monorail Spacing Layout
Figure 6C 48' Diameter Bin with 16" Monorail Spacing
NOTE: Forty nine (49) total outer perimeter 3' monorail
pieces. See
for leg support details.
* NOTE: This special monorail run is used to support the
floor plank at the split.
Part #
Description
Qty
FL-404-16
16" Monorail Tie Bar
150
FL-7411
Monorail Strap 1-1/2" x 30" x 0.061"
60
S-280
#10-16 x 5/8" Zinc Self-Drilling Screw
750
Bill of Materials
Part #
Length
Qty
A-22MONO
264
14
A-21.75MONO
261
4
A-21.17MONO
254
4
A-20.5MONO
246
4
A-19.67MONO
236
4
A-18.75MONO
225
4
A-17.67MONO
212
4
A-16.42MONO
197
4
A-15.92MONO
191
2
A-15MONO
180
4
A-13.17MONO
158
4
A-12.5MONO
150
4
A-12.42MONO
149
4
A-12.25MONO
147
8
A-12MONO
144
4
A-11.67MONO
140
4
A-11.25MONO
135
4
A-10.92MONO
131
4
A-10.25MONO
123
2
A-3MONO
36
67
48' Diameter 16" Spacing
Measurement in Inches
Rail #
Section 1
Section 2
Section 3
1
150
264
150
2
149
264
149
* 3
147
264
147
4
147
264
147
5
144
264
144
6
140
264
140
7
135
264
135
8
261
261
0
9
254
254
0
10
246
246
0
11
236
236
0
12
225
225
0
13
212
212
0
14
197
197
0
15
180
180
0
16
158
158
0
17
131
131
0
18
191
0
0
19
123
0
0
14.63 m Diameter 40.64 cm Spacing
Measurement in Centimeters
Rail #
Section 1
Section 2
Section 3
1
381
670.56
381
2
378.46
670.56
378.46
* 3
373.38
670.56
373.38
4
373.38
670.56
373.38
5
365.76
670.56
365.76
6
355.6
670.56
355.6
7
342.9
670.56
342.9
8
662.94
662.94
0
9
645.16
645.16
0
10
624.84
624.84
0
11
599.44
599.44
0
12
571.5
571.5
0
13
538.48
538.48
0
14
500.38
500.38
0
15
457.2
457.2
0
16
401.32
401.32
0
17
332.74
332.74
0
18
485.14
0
0
19
312.42
0
0
