Page 3
PNEG-1778
Page 3 of 6
36' Diameter 10K Roof Rafter Instructions
Special Roof Instructions for 36' Diameter Commercial 10K Roof
The 36' diameter commercial 10K roof comes standard with 12 roof rafter assemblies that are not
included in the 30° roof manual (PNEG-030). Install one roof rafter per sidewall sheet. Please refer to the
roof manual for the complete roof assembly details.
NOTE: Each rafter has two (2) sections.

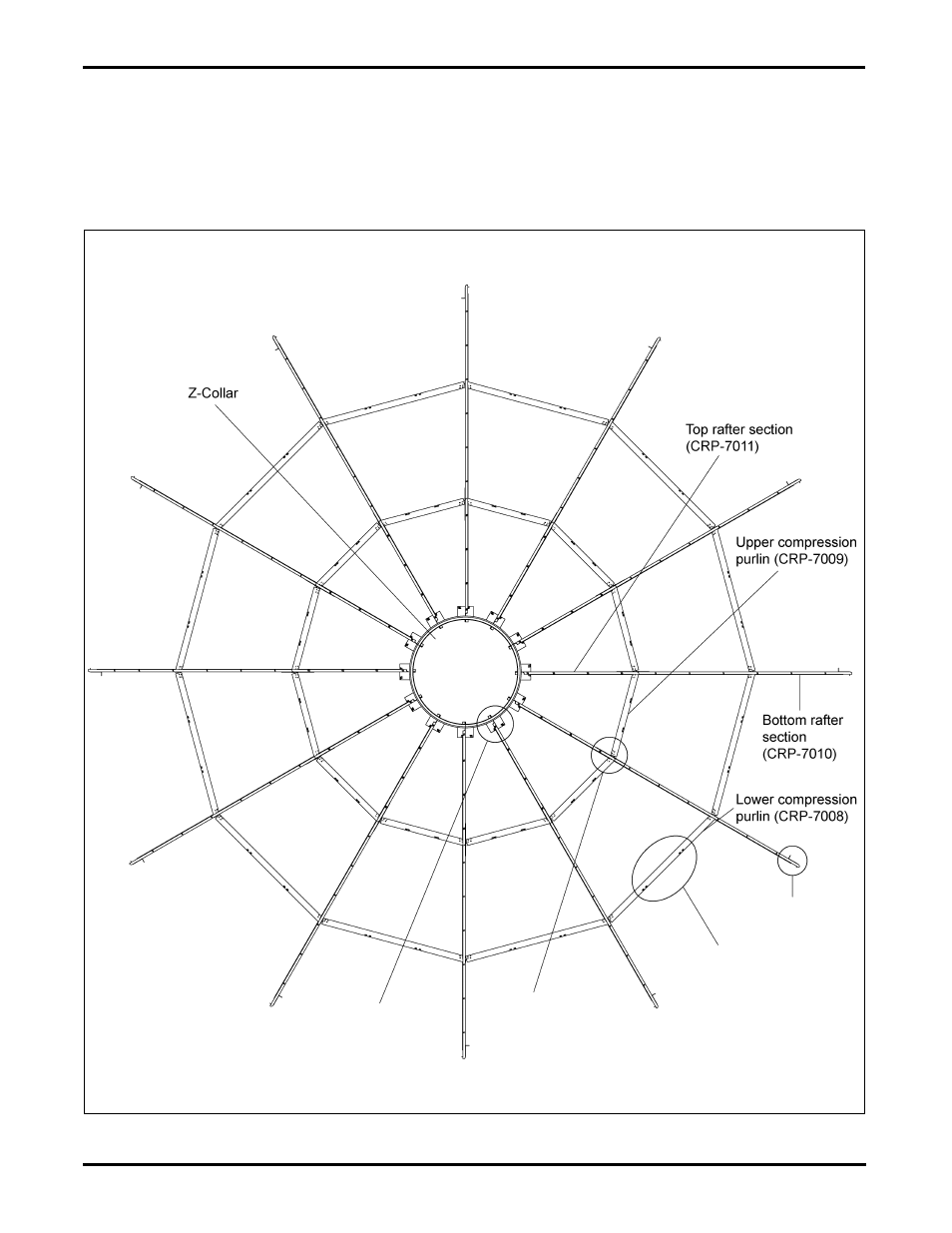

Figure 3
See detail A
See detail D
See detail C
See detail B
