PNEG-1805
24' Roof Rafter and Temp Cable Assembly Instructions

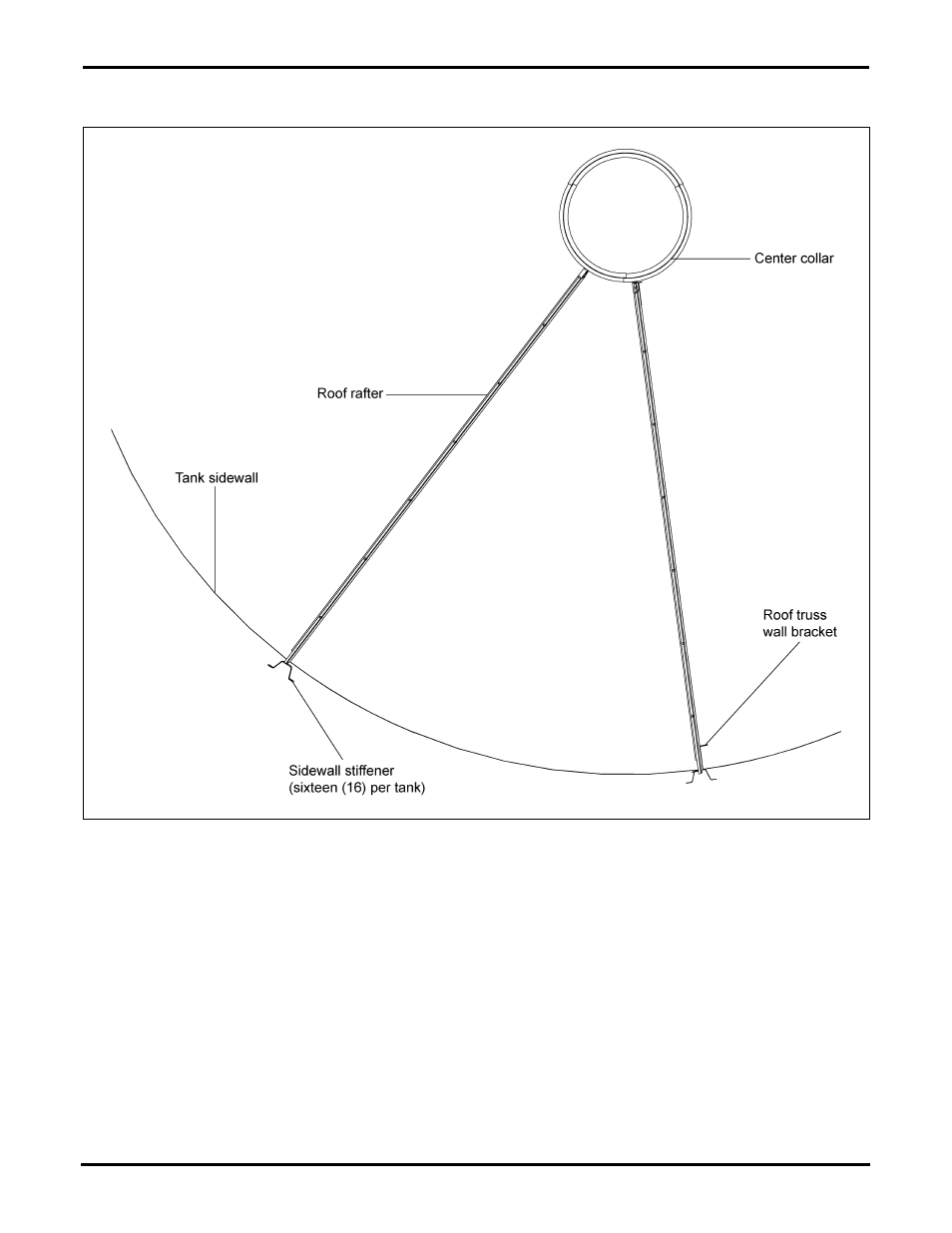

24' Roof Rafter Instructions
Figure 2
NOTE:
1. After assembling the first ring of sidewall, the roof truss wall brackets can be bolted to the sidewall
with the top stiffener and eave clips.
2. The rafter attachment bracket and clip can be pre-assembled to the top end of the roof truss.
3. As roof panels are installed, place one roof truss in every third roof rib. Bolt truss at bottom to
wall bracket and at top to center collar. Refer to
for details.
4. For general roof installation, refer to 30° roof construction manual (PNEG-1092).
