3. Inside Ladder Instructions
PNEG-1652 Reinforced Inside Ladder Instructions
17
4.00'' Corrugated Farm Bin

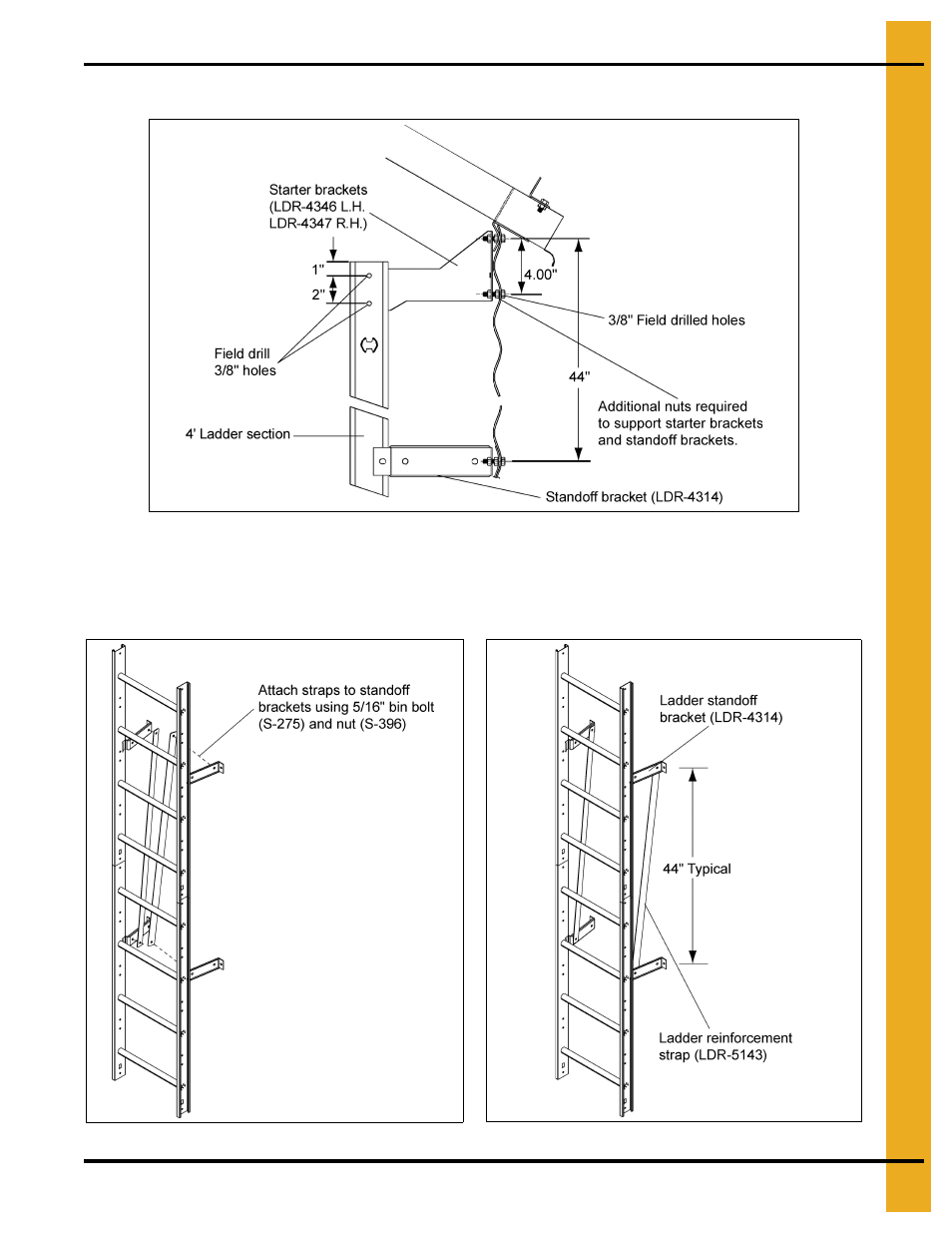

Figure 3M Inside Starter Bracket and Ladder Placement
NOTE: Be sure to push ladder sections up and tighten. Do not tighten ladder section splices with ladder
sections hanging under their own weight.
Now all standoff brackets and straps must be installed every 44" and attached to each 4' section required.
Figure 3N Un-Assembled Reinforcing Strap
Figure 3O Assembled Reinforcing Strap
