Chapter 7: Roof Assembly

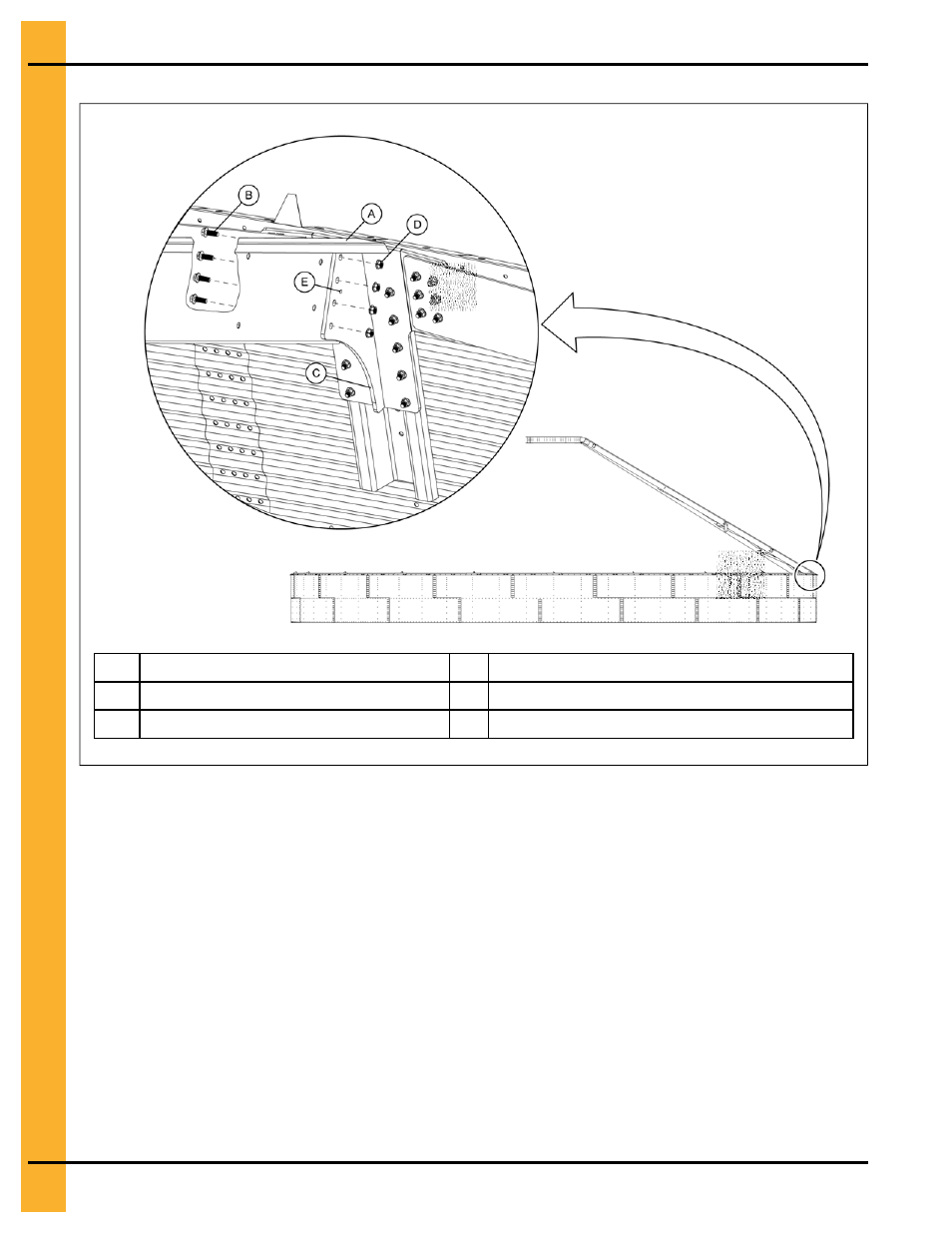

Figure 7-22 Attaching the rafter to the eave bracket
A A-frame rafter assembly D 7/16 in. flange nut (S-10251)
B 7/16 x 1-1/4 in. flange bolt (S-10250) E Hole for alignment tool
C Eave bracket (CTR-0498)
After You Finish
Continue to the next A-frame installation until all of the A-frame rafter assemblies are installed. See
About
Temperature Cable Brackets and A-Frame Assemblies, page 84 .
Assembling the Roof Panel Clips
The roof panel clips are located at the top of the roof rafters nearest to the center collar rafter clips.
Before You Begin
The A-frame rafters should be fully assembled and installed to the center collar and the eave brackets.
What You Should Know
The A-frame assembly consists of two roof rafters identified as the left-hand roof rafter (A) and the right-
hand roof rafter (C). The roof panel clip is installed between each rafter after the A-frame assemblies are
installed.
