3. 72' High Wind Roof Assembly Instructions
PNEG-1863 Special High Wind 72' Roof Assembly 21

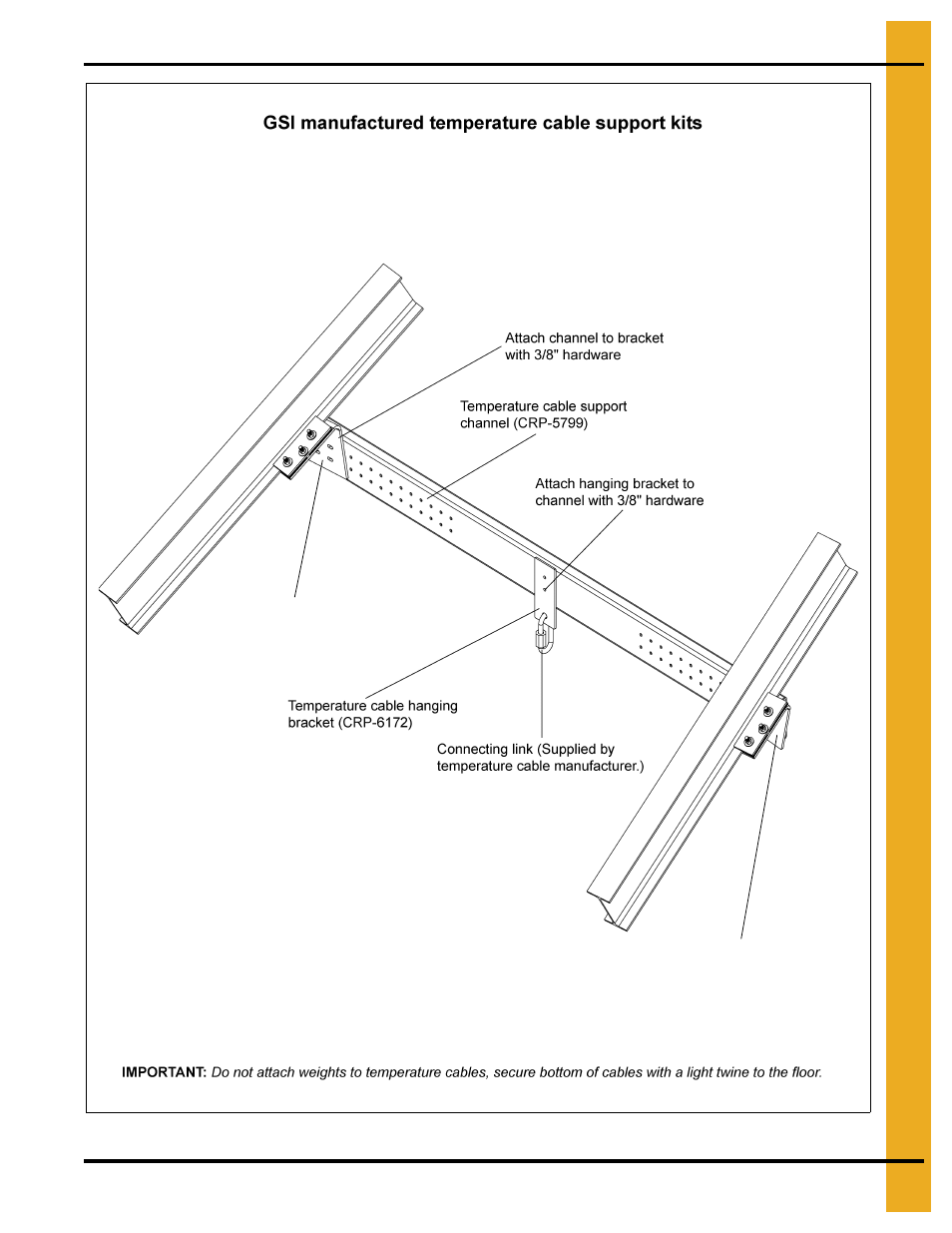

Figure 3K
Installation instructions: Attach left and right bracket assemblies to roof beams as shown in detail 14 on Page 22 .
Adjust bracket position along the roof beam to the desired radius. Attach support channel to the left and right bracket
assemblies with 3/8" x 1-1/2" flange head bolt, washer and nut. Attach hanging bracket to the support channel with
3/8" x 1-1/2" flange head bolt, washer and nut. Tighten all 1/2" bolts to a minimum torque of 120 ft. lbs.
Right bracket assembly
(See detail 14
on Page 22 .)
Left bracket assembly
(See detail 14
on Page 22 .)
