Chain Loop Torque Arm Repair Kit
NOTE: Motor mount and belt guard removed for clarity.
Attach both torque plate assemblies to each side of the gear reducer using the bolts provided. Re-use the
lock washer and hex nut provided with the gear reducer.
(See Figure 1.)
NOTE: Leave the hardware loose to allow for ease of assembly.
TA3 - 3/8"-16 Bolt
TA4 and TA5 - 1/2"-13 Bolt

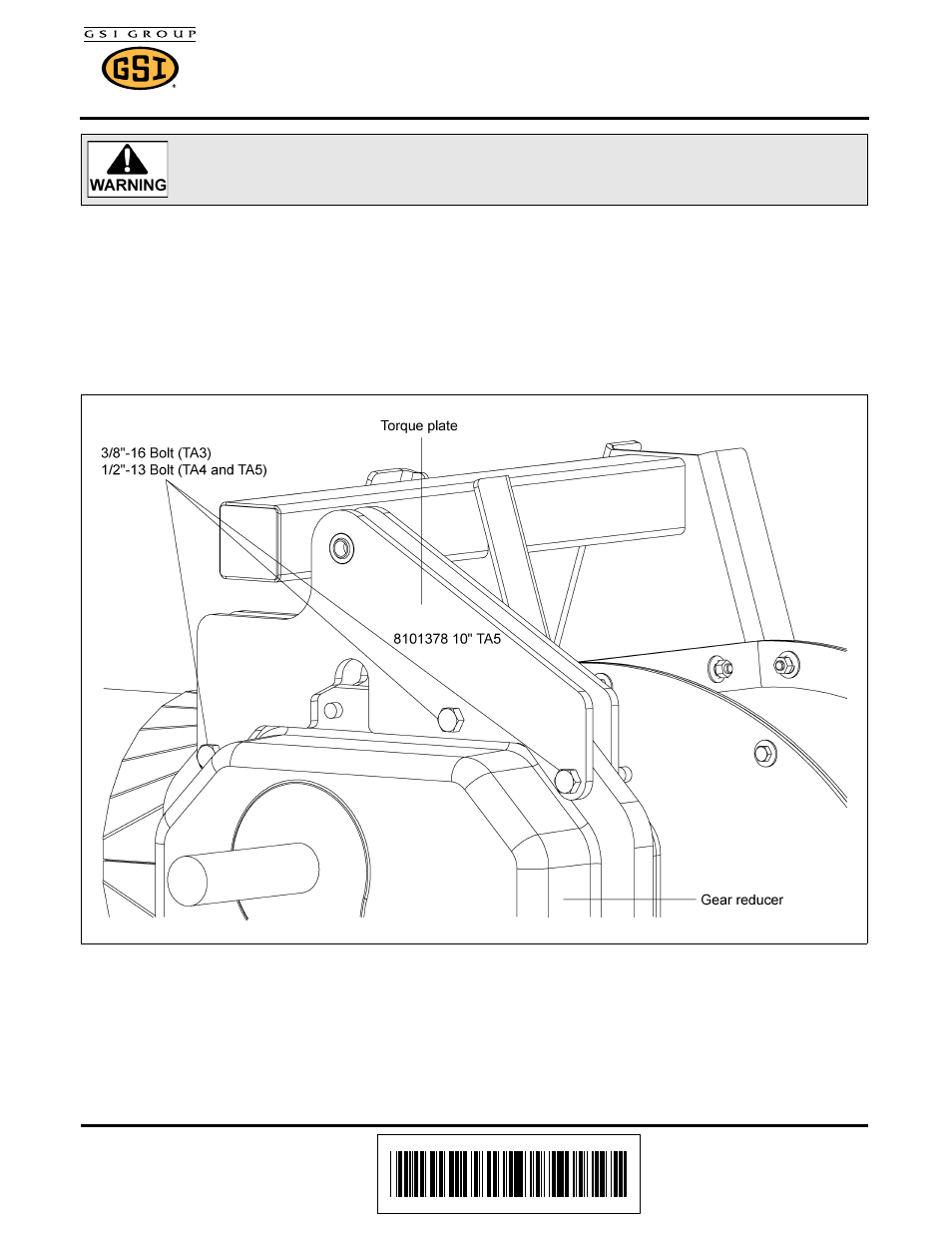

Figure 1
Secure the motor mount from both sides to prevent the drive unit from pivoting
either direction on the shaft.
