3. 24'-36' Diameter Roof Rafter Instructions
PNEG-1795 Special 24'-36' Diameter Roof Rafter Instructions
17
Special Roof Instructions for 30' Diameter Tank
The 30' diameter tank comes with 30' roof rafter assemblies that are not included in PNEG-1092.
Install one roof rafter under each roof panel rib as shown in this manual. Please refer to PNEG-1092
for complete roof assembly details.
NOTE: Each rafter has two (2) sections.

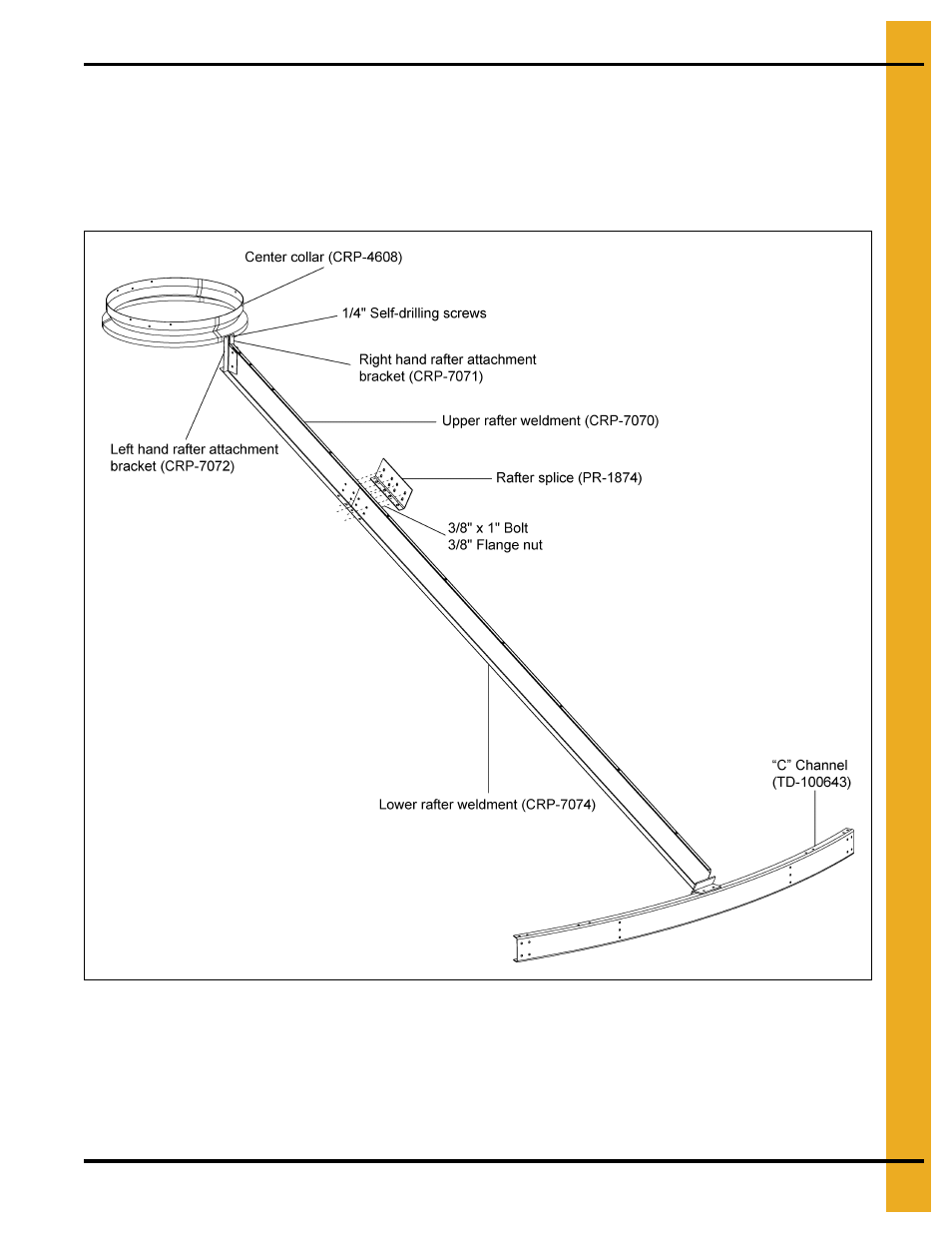

Figure 3K
