8. 33' Grandstand Layouts, 33' Maximum Wall Height
PNEG-219 33' Cor-Lok and Cut-Lok Flooring 21

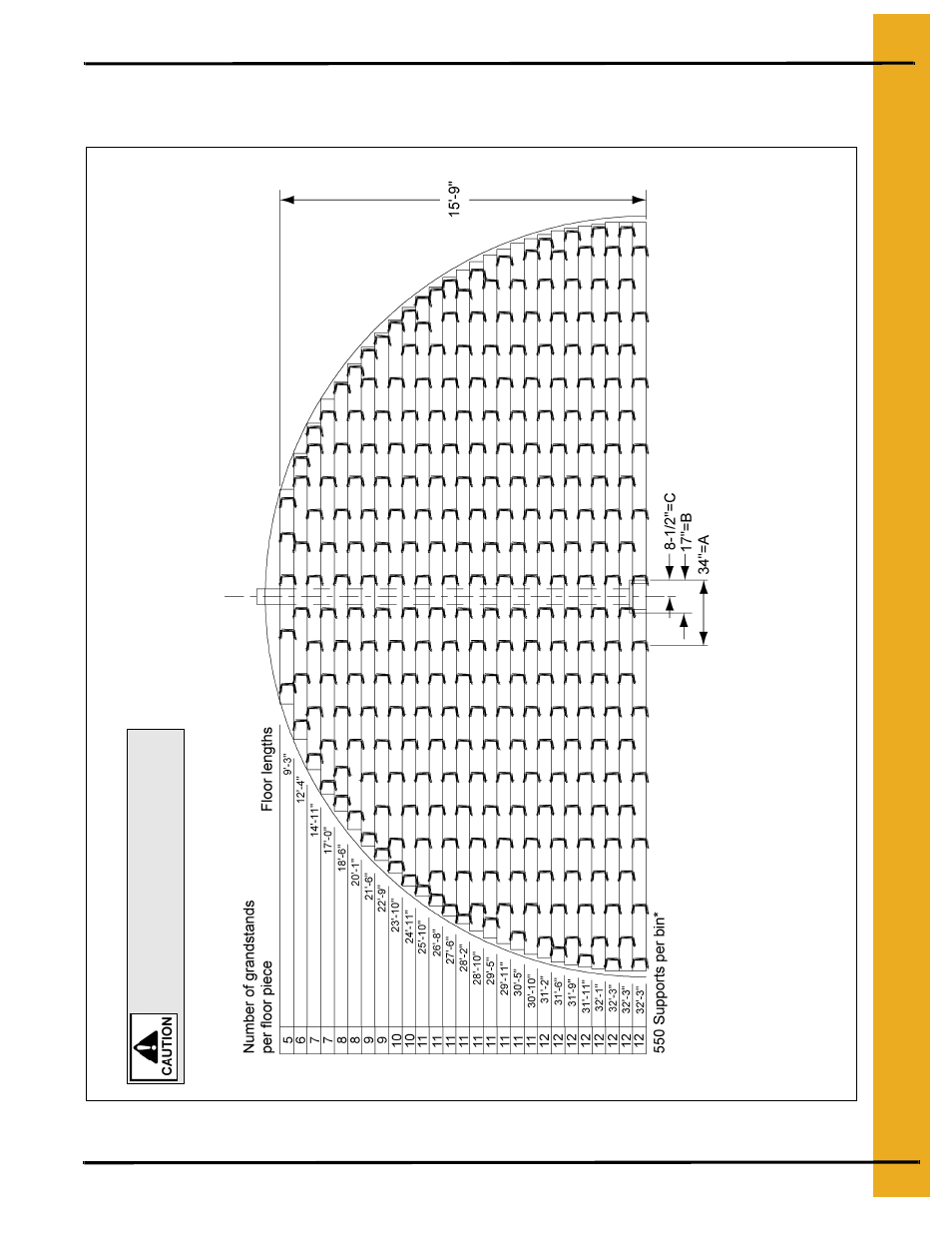

33' Cor-Lok/Cut-Lok and 20 Gauge Grandstand Layout
2.66" Corrugated Bins 12 Rings and 4.00" Corrugated Bins 9 Rings
Figure 8G
