PNEG-1784
BFT Bin Lid Assembly

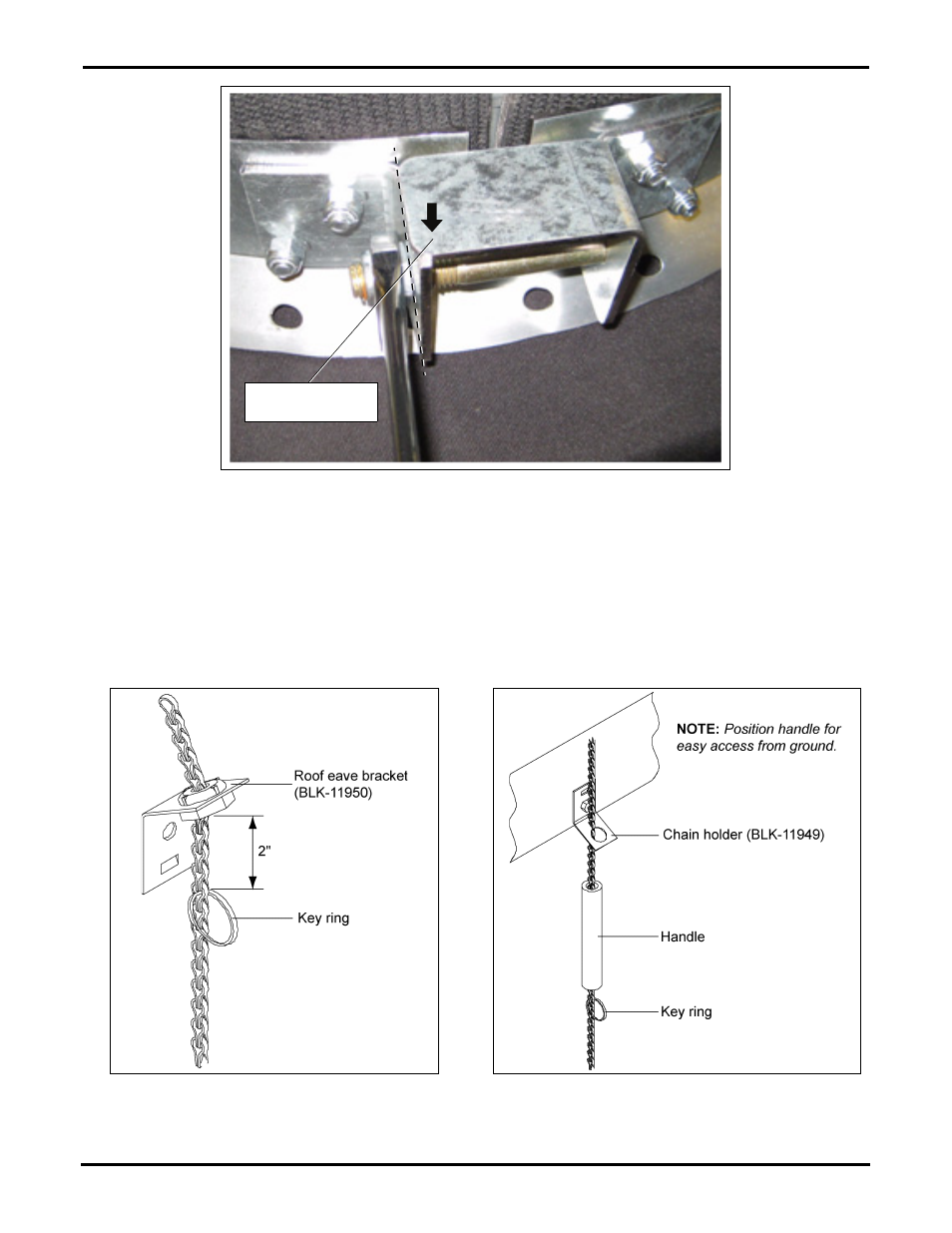

Figure 7 Tighten Bolts Until Flush with Bracket
4. Thread the existing chain through the hole on the end of the lever arm and fasten it to the provided
key ring.
Ensure that the ground control chain is freely looped through the
roof eave bracket and chain holder. After removing the slack in the chain while the lid is fully closed
and in latched position, re-position the key ring 2" below the roof eave bracket.
Re-adjust the existing handle and key ring so the handle is positioned for easy access from
ground.
Check to make sure that the key rings allow the cap to fully close, but will
not allow the chain enough slack on top of the cap to become wrapped around the lever arm in a
high wind condition.
Figure 8
Figure 9
5. Install the decal DC-2123 to the inside of peak ring on the hinge side of the lid as shown
. Decal should be clearly visible when lid is open.
Bracket should
extend over flange.
