Locate the supplied filter hose
clamp and install onto the Banks filter.
8.
Locate the supplied rubber AIT
grommet from your Banks kit and
install onto the air intake tube.
9.
Insert the Banks intake tube onto
the Banks Ram-Air Housing; be sure to
insert the end of the intake tube that has
an arrow on it.
10.
Insert the Banks air filter into the
end of the Banks intake tube that is
inside of the Banks Ram-Air Housing.
For proper fit be sure that the arrows
on the Banks air filter and intake tube
line up. Tighten Banks filter hose
clamp. See Figure 6.
11.
Install the hose and two hose
clamps onto the intake tube where it
will attach to the throttle body.
12.
Insert the Banks intake tube into the
throttle body opening first. Then, Insert
the three Banks air filter housing mounting
pegs onto the stock grommets.
Note: Be sure that the mounting pegs have
been properly inserted onto the grommets.
13.
Tighten the two hose clamps that
connect the Banks Ram-Air intake tube to
the throttle body.
14.
Install the AIT sensor flush into
the grommet on the air intake tube.
See Figure 7.
15.
Re-Connect the Connector and
the AIT sensor.
16.
Re-Install the CCV vent hose
connection to the Banks Ram-Air intake
tube. Secure the connections by using
stock spring clamps.
17.
You have successfully completed the
installation of the Banks Ram-Air Intake
system. Make sure to go over all hose
clamps for tightness and connectors for a
sure fit. Make sure that the intake tube is
not touching any engine components.
-EnD, SECTIOn 2-

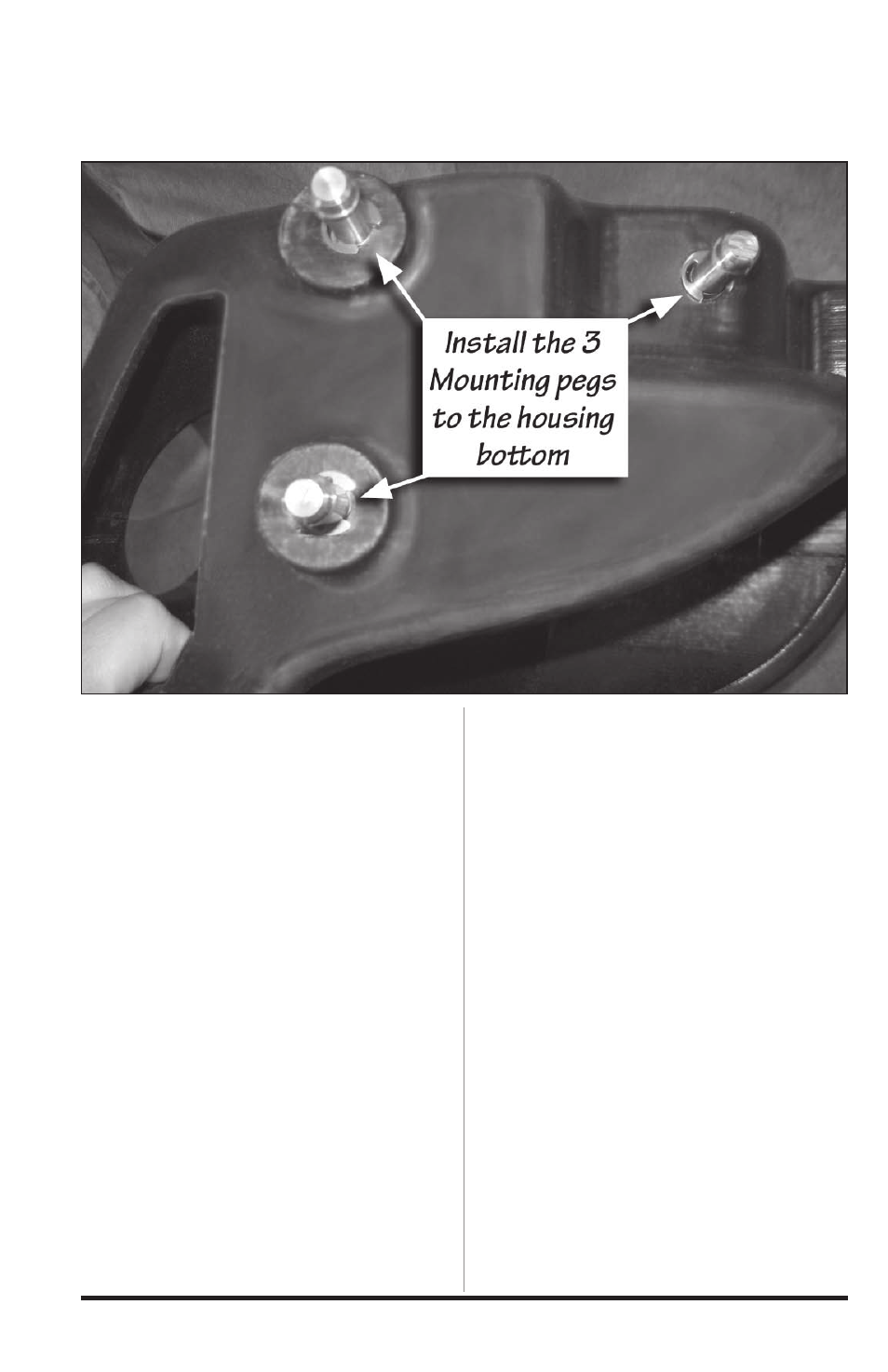

Figure 5- Attaching mounting pegs to the housing bottom
