Banks Power Ford Trucks: (Diesel ’94 - 97 7.3L Power Stroke) Speed Control- Repair Kit, SmartLock ('97 models only) - Manual (Page 2)

1 / 2
"
T-TAP
CONNECTOR
WHITE JUMPER
WIRE
0 8 / 2 7 / 0 3 P N 9 6 4 1 6 v . 1 . 0
© 2 0 0 3 G A L E B A N K S E N G I N E E R I N G

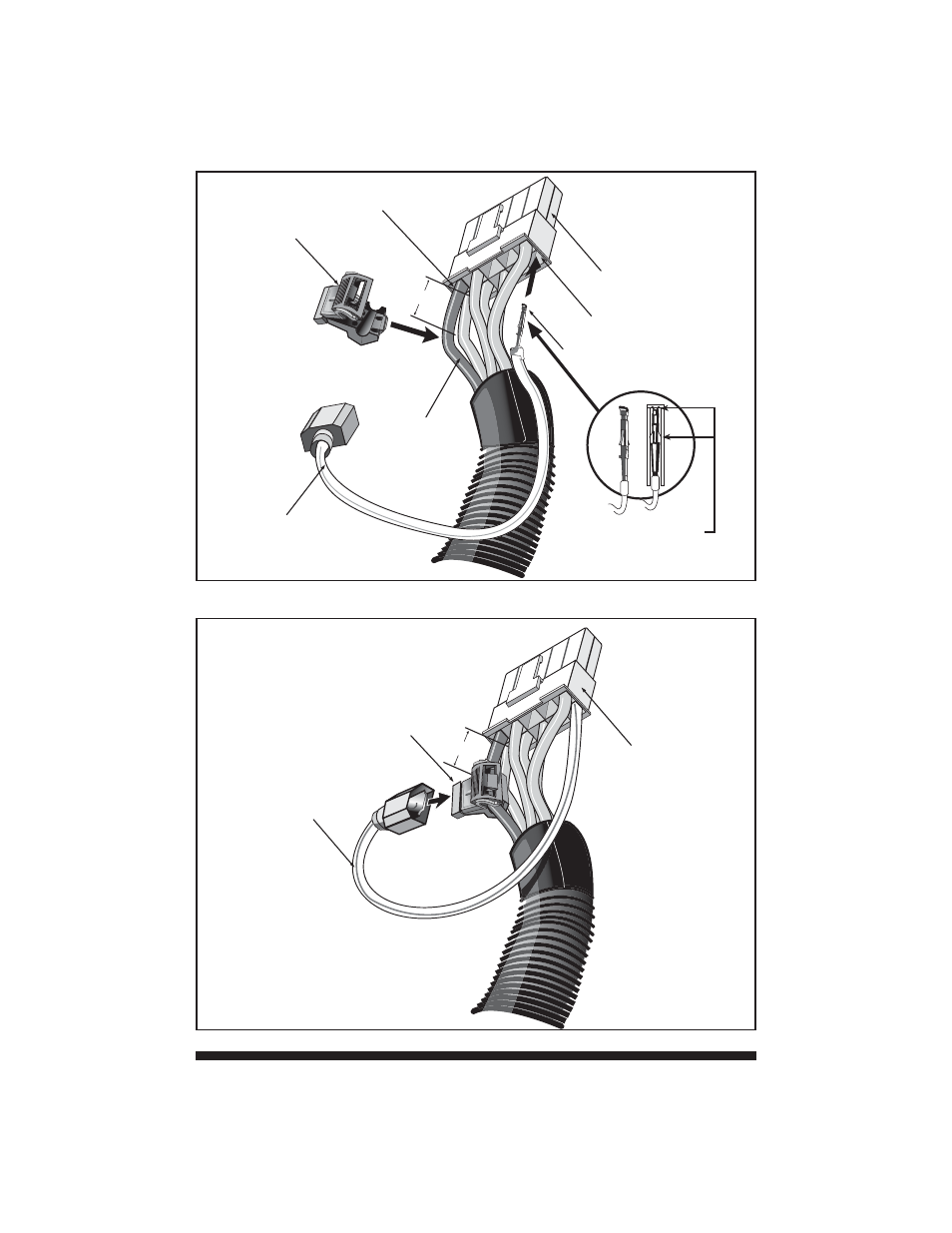

Figure 2
1 / 2
"
T-TAP
WHITE JUMPER
WIRE
CONNECTOR
CAVITY 1
TERMINAL
CAVITY 10
GREEN WIRE
TERMINAL WINGS
GRIP WALL OF CAVITY
AT DISPLAYED ANGLE
Figure 1
