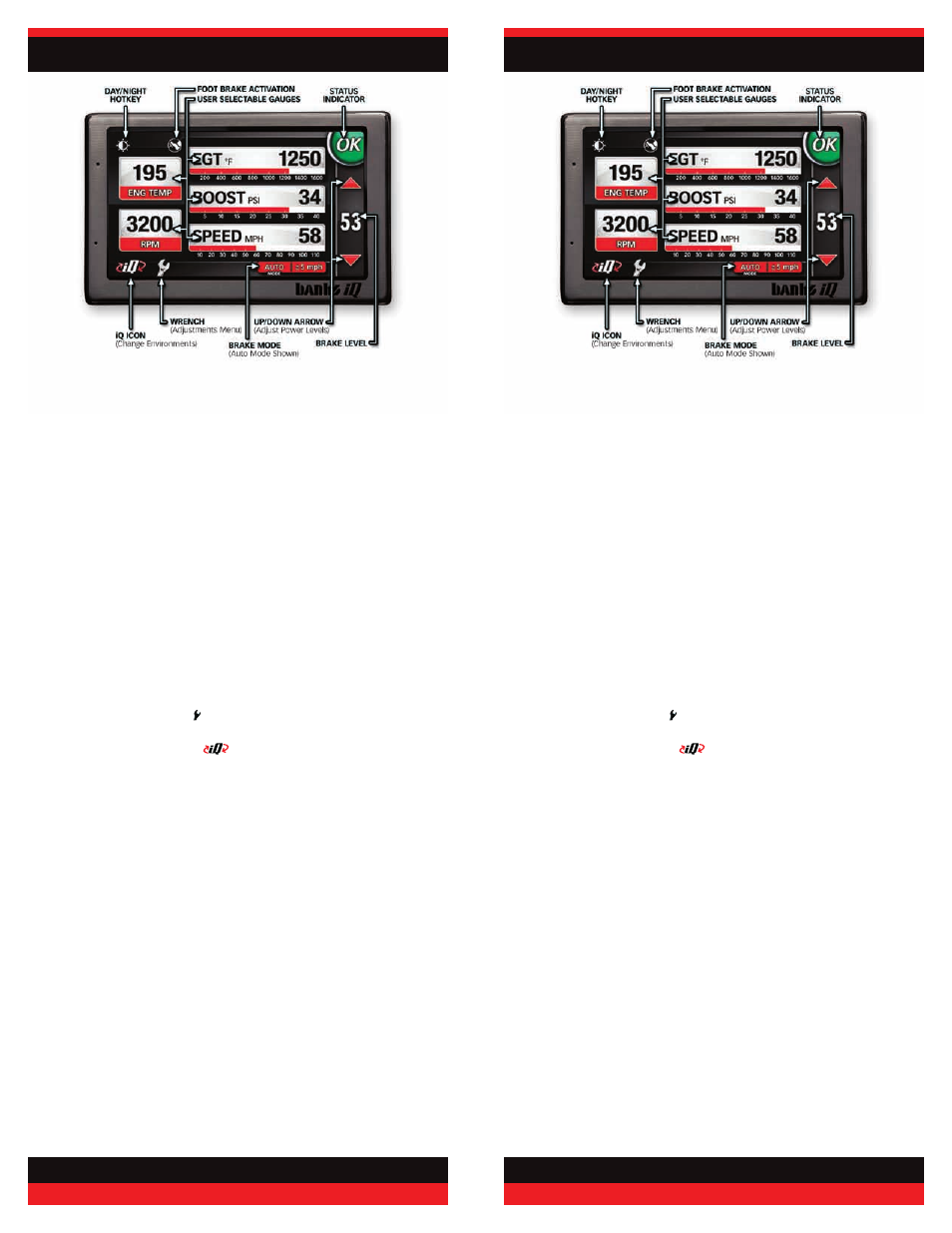

background image

1. Turn your vehicle on to ‘WAKE UP’ Banks iQ from
‘Sleep’ mode.

Note: If Banks iQ does not ‘WAKE UP’ from ‘SLEEP’ mode
make sure the USB interface connection is connected
and/or the sliding switch on the left side is slid up to the
‘ON’ position.

2. In the Safety Environment you will be able to switch between
‘MANUAL’, ‘AUTO’ (Automatic) and ‘OFF’ mode. Press on

the ‘Brake’ mode button on the lower part of the screen to
toggle to the ‘AUTO’ mode.

3. Press on the ‘TARGET SPEED iNCREMENT SWiTCH’ to
select the increment value of 1 or 5 MPH in the lower right
side of the iQ screen.

4. Press on the ‘UP’

p

or ‘DOWN’

q

arrow to increase

or decrease the target speed by the increment selected.
Target speed will be displayed in-between the ‘UP’

p

and

‘DOWN’

q

arrows.

5. Press the ‘WRENCH’ icon to open the ‘ADjUSTMENTS’
menu to customize the functionality of Banks iQ or press
the ‘BANKS iQ HOME’

icon to return to the

‘ENviRONMENT SELECT’ menu on the lower left of the
iQ screen.

For more detailed information on SpeedBrake features,
consult the Banks iQ Owner’s Manual.

1. Turn your vehicle on to ‘WAKE UP’ Banks iQ from
‘Sleep’ mode.

Note: If Banks iQ does not ‘WAKE UP’ from ‘SLEEP’ mode
make sure the USB interface connection is connected
and/or the sliding switch on the left side is slid up to the
‘ON’ position.

2. In the Safety Environment you will be able to switch between
‘MANUAL’, ‘AUTO’ (Automatic) and ‘OFF’ mode. Press on

the ‘Brake’ mode button on the lower part of the screen to
toggle to the ‘AUTO’ mode.

3. Press on the ‘TARGET SPEED iNCREMENT SWiTCH’ to
select the increment value of 1 or 5 MPH in the lower right
side of the iQ screen.

4. Press on the ‘UP’

p

or ‘DOWN’

q

arrow to increase

or decrease the target speed by the increment selected.
Target speed will be displayed in-between the ‘UP’

p

and

‘DOWN’

q

arrows.

5. Press the ‘WRENCH’ icon to open the ‘ADjUSTMENTS’
menu to customize the functionality of Banks iQ or press
the ‘BANKS iQ HOME’

icon to return to the

‘ENviRONMENT SELECT’ menu on the lower left of the
iQ screen.

For more detailed information on SpeedBrake features,
consult the Banks iQ Owner’s Manual.

Gale Banks Engineering
546 Duggan Ave., Azusa, cA 91702
(626) 969-9600 • Fax (626) 334-1743

Product Information & Sales: (888) 635-4565

Caution: Your Banks SpeedBrake is not a substitute

for the hydraulic brakes on your truck. the device will

not correct or compensate for improperly maintained

hydraulic brakes. also, please be aware that your Banks

SpeedBrake is not designed to be used as a parking brake

or to bring your vehicle to a complete stop. Your Banks

SpeedBrake is a supplementary braking system designed

to help you slow down or to assist you in maintaining a

more constant speed when descending a grade. Remember

that this SpeedBrake is first and foremost a preemptive

device and it is most efficient when used to help prevent,

rather than correct, a vehicle over speed situation.

the use of a Banks SpeedBrake does not increase the load
capacity of your vehicle. Gross combined Weight Rating
specifications should always be adhered to. the Banks
SpeedBrake will allow you to slow your vehicle more
effectively within your vehicle’s weight specifications.

Caution: Your Banks SpeedBrake is not a substitute

for the hydraulic brakes on your truck. the device will

not correct or compensate for improperly maintained

hydraulic brakes. also, please be aware that your Banks

SpeedBrake is not designed to be used as a parking brake

or to bring your vehicle to a complete stop. Your Banks

SpeedBrake is a supplementary braking system designed

to help you slow down or to assist you in maintaining a

more constant speed when descending a grade. Remember

that this SpeedBrake is first and foremost a preemptive

device and it is most efficient when used to help prevent,

rather than correct, a vehicle over speed situation.

the use of a Banks SpeedBrake does not increase the load
capacity of your vehicle. Gross combined Weight Rating
specifications should always be adhered to. the Banks
SpeedBrake will allow you to slow your vehicle more
effectively within your vehicle’s weight specifications.
