Figure 2
7.

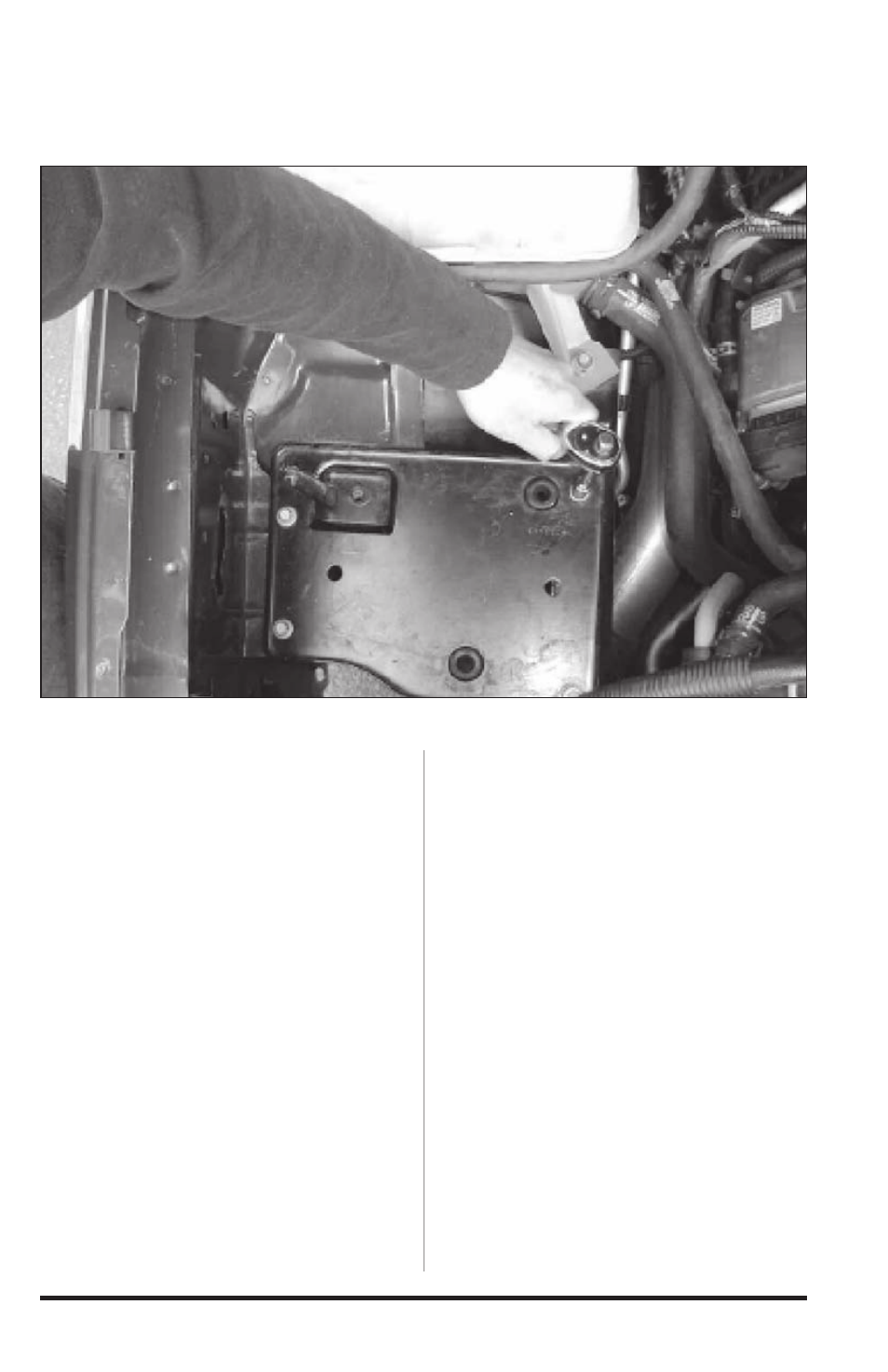

Locate your Banks Ram-Air filter
housing from your kit. Align the Banks
Ram-Air filter housing to fit parallel to
fender edge. Install and tighten the
previously removed bolts to secure the
Banks Ram-Air filter housing.
Note: The cutout on Banks Ram-Air
filter housing must face passenger side
fender. See Figure 3.
8.
Locate your Banks Torx tool,T20H in
your Banks Ram-Air kit. Use the Torx
tool bit to remove the two (2) screws
securing the MAF sensor to the stock
air box cover.
Note: Be careful when removing the
MAF Sensor. When removing the MAF
sensor, grasp its body and pull up
and out. Do not twist or bend when
removing.
9.
Install the supplied Banks MAF
sensor o-ring onto the MAF sensor.
Ensure o-ring is mounted flush to MAF
sensor edge as shown (Figure 4).
Note: Retain the stock 0-ring. The
Banks o-ring will be slid over the stock
o-ring on the MAF sensor.
10.
Locate your Banks Ram-Air intake
tube in your kit. Install the stock MAF
sensor (with the additional Banks
gasket) to MAF sensor mounting
boss as shown. Tighten the screws
(included) to 3 in/lbs. See Figure 5.
Note: Ensure correct alignment as
shown otherwise screw holes will not
align with screw holes in the Banks
Ram-Air intake tube.
Caution: Do NoT oVER TIGHTEN
SCREWS
