Note: Leave the remaining (2) rubber
isolator attached to the compressor.
10.
Refer to
Figure 2 to identify
which electric solenoid valve is used.
11.
If the style I electric solenoid is
being used then see
Figure 4a for
reassembly reference. If the style II
electric solenoid is being used then see
Figure 4b for reassembly reference.
12.
Locate the retrofit compressor
panel.
13.
Install the electric solenoid valve
and relay onto the retrofit compressor
panel in their designated locations as
shown in
Figure 4a or Figure 4b.
14.
Install the rubber isolator removed
in
step 9 onto the compressor panel
and finger tighten.
Note: The air compressors ground
terminal will be fastened to this point
in a later step.
15.
Slide the air compressor into the
retrofit compressor panel. Install base
bracket into position to accept the
rubber isolator and fasten nut to air
compressor bracket.
16.
Install air compressor ground
terminal to rubber isolator.
NOTE: Make sure to have the ground
terminal touching the retrofit
compressor panel.
17.
Tighten all nuts to rubber
isolators.
18.
Install the pneumatic hose from
the air compressor to the electric
solenoid as shown in
Figure 4a or 4b.
Trim the hose to fit with a sharp knife
or razor blade. Avoid cutting with
scissors because this can collapse the
hose. If a longer pneumatic hose is
needed then cut off from the
pneumatic hose that leads to the
exhaust brake actuator (this hose will

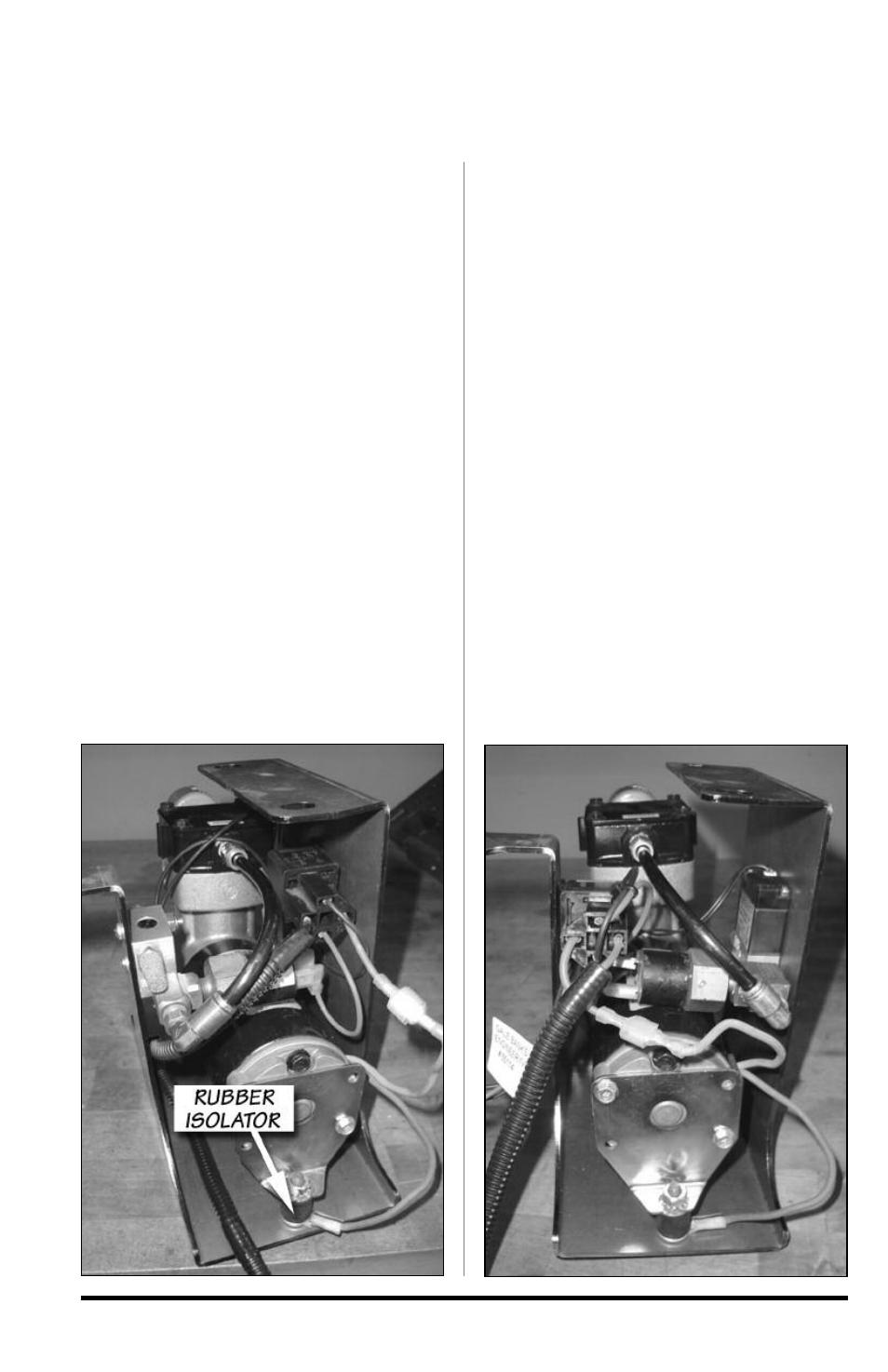

Figure 4a
Figure 4b
