51238 pg 2 0807 Rev. B
Installation

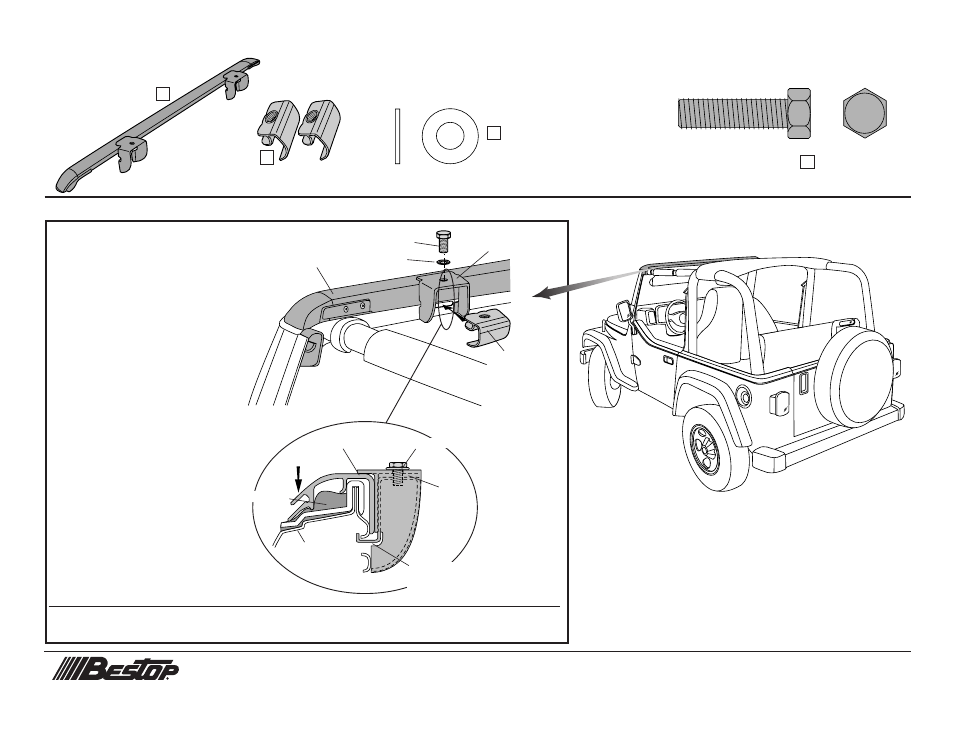

Step One
I NSTALL W INDSHIELD R ETAINER
Place the Windshield Retainer as-
sembly on top of the bulb seal along
the top of the Windshield.
Locate the two J-Hook Brackets in
the parts kit. Orient a bracket with
the hook toward the front and the
threaded insert toward the top. Slide
the bracket into one of the J-Hook
Bracket Bases mounted to the
Windshield Retainer and catch the
hook in the slot in the windshield.
Insert a 5/16 x 1-1/4" Bolt and a 5/16"
Washer from the top of the base into
the J-Hook Bracket to secure the
bracket to the base. Repeat this on
the other side of the vehicle.
Note: While installing the Windshield Retainer/J-Hook Bracket Assembly, apply fi rm pressure toward the
front of the vehicle to make sure that the assembly is installed correctly over the bulb seal.
Windshield
Frame
J-Hook Bracket -
Hook into slot in
windshield
5/16" Washer
J-Hook Bracket
- Hook into slot
in windshield
5/16 x 1-1/4" Bolt
Windshield Retainer
Cross Section
5/16"
Washer
Windshield
Retainer
Bulb Seal
Push Down Here
5/16 x 1-1/4" Bolt
J-Hook Bracket Base -
(Windshield Retainer)
Windshield
Retainer
Parts List and Hardware Identifi cation
5/16" Washer, Qty - 2,
Part Number 233.04
J-Hook Brackets, Qty - 2,
Part Number 378.61
Windshield Header, Qty - 1,
Part Number 378.36
5/16 x 1-1/4" Bolt, Qty - 2,
Part Number 378.59
