FEATURES
Super IR Control
These units have the capability of being controlled via IR signals. The splitter can be controlled from the
display. This is accomplished by using an optional IR Receiver pigtail (Part #280721) pointing away from the
display(s), which can be connected with the optional HDMI IR Adapter (Part # 280703), and inserted between
the HDMI cable connector and the display with the toggle switch at the “IR” position. The IR Transmitter pigtail
(Part # 280720) is then connected to the splitter and pointed at the source(s). A remote control is used at
the display to control the source.
*** These products are only compatible with Vanco’s Super HDMI IR Accessories.
Over-Current Over-Voltage Protection
The circuit boards are equipped with both over-current and over-voltage protection and automatically power
down if these are encountered. The power circuit will restore itself automatically once the excessive current or
voltage conditions are rectified. The 4x8 splitter also features RS-232 control.
HDMI® 4 x 8 Splitter with IR and RS232 Control
Part # 280705
• Allows 4 HDMI Sources to be Connected to 8
HDMI Displays Devices
• High Speed Chip Set that Supports 3D, 4K x 2K
• Full HD1080P/120HZ
• HDCP Compliant
• Super IR & RS232 control system, IR transport
channel can be forward or backward, an IR
adapter and transmit and receive pigtails are
needed
• Supports Digital Audio Format, DTS-HD/Dolby-
True HD/LPCM7.1/AC3/DTS/DSD
• Built-in equalization support output
• Unique Circuit Design Allows for Protection
against High Voltage and Peak Currents
• Tested for Compatibility with all leading HD
Video brands
• Tested with Whole Series 7.1 Home Theater
Systems
• Locking HDMI Compatible
• 19” Rack Mounting
• 5V DC, UL Listed Power Supply
• Dimensions: 17.25”W x 2”H x 8”D

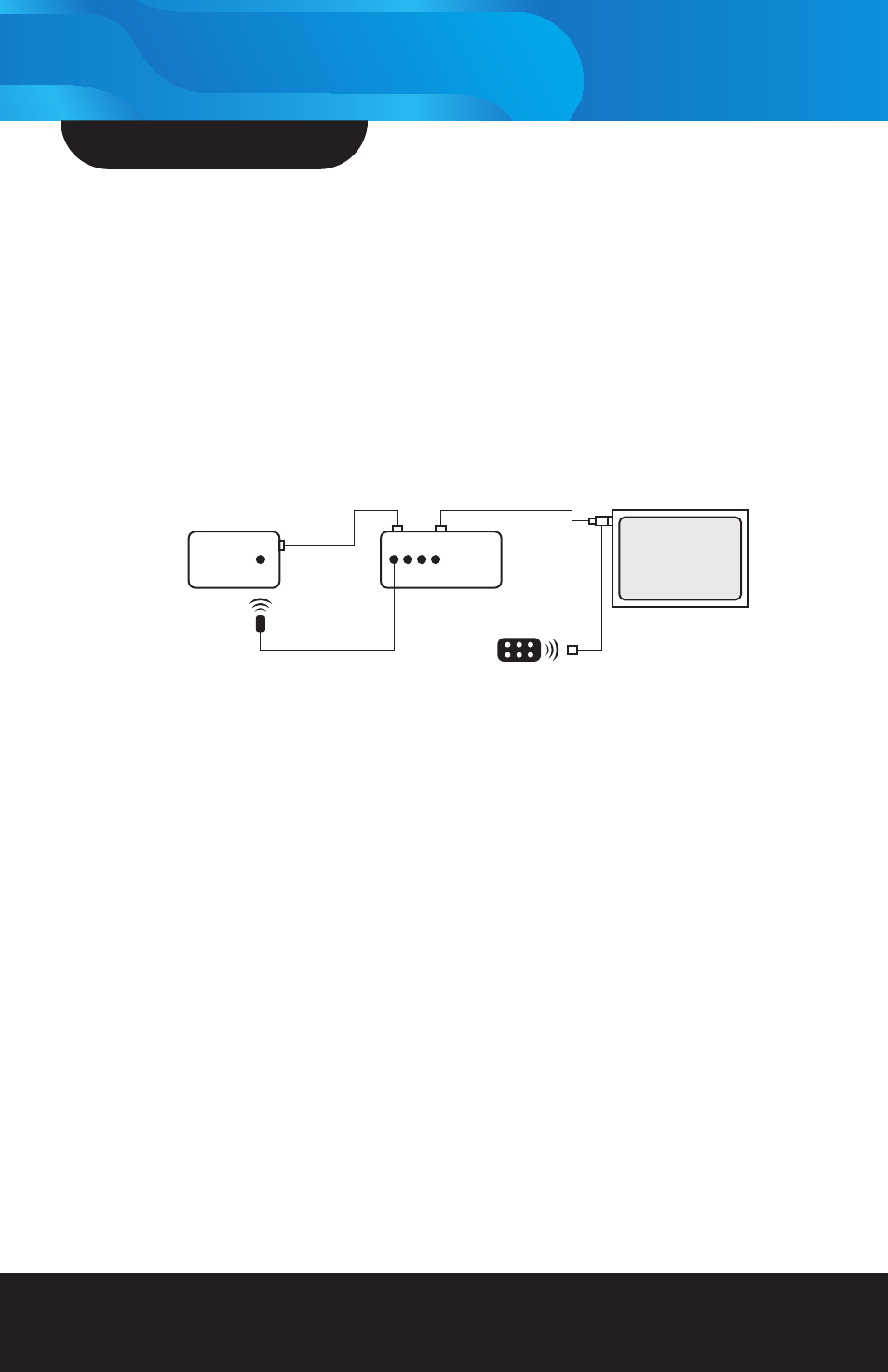

Super IR Control System Over HDMI Cable
Blu-Ray
Player
Matrix, Splitter,
or Switch
IR TX
Pigtail
IR IR
HDMI IR
Adapter
IR
RX Pigtail
IR Remote
HDMI
HDMI
(1 per display for Matrix, Switches, Extenders
1 per source for Splitters)
HDTV
