5

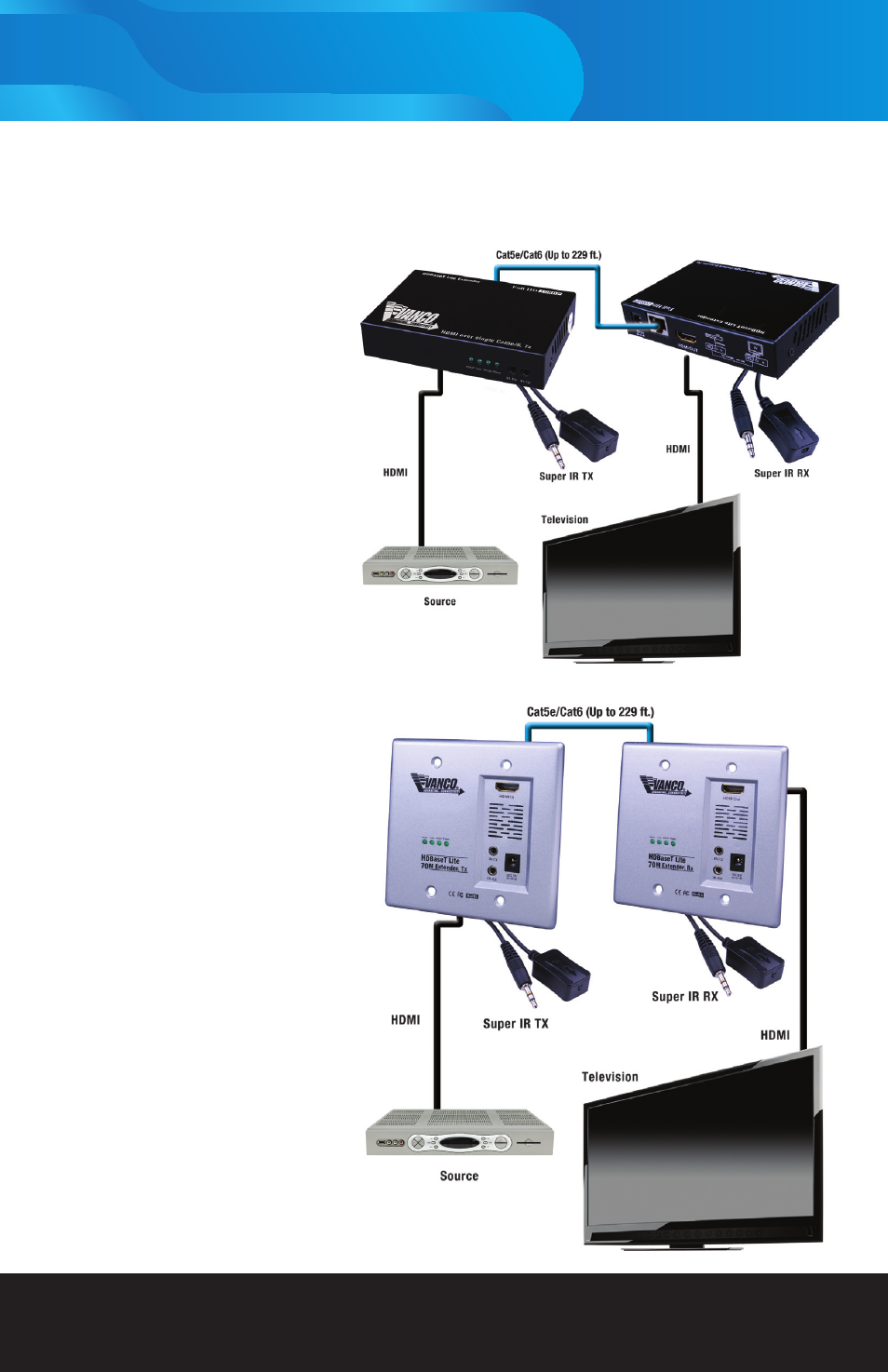

CONNECT AND OPERATE
1. Connect signal source (Blu-Ray,
PS3, or cable/satellite receiver)
to the HDMI In transmitter port
using a short (16 ft or less)
HDMI cable.
2. Connect the display (LCD, LED,
or Plasma HDTV) to the HDMI
Out port of the receiver using
a short (16 ft or less) HDMI
cable.
3. Connect a long (229 ft or
less) Cat 5e or Cat 6 cable to
the output RJ-45 jack of the
transmitter.
4. Connect the other end of the
long Cat 5e or Cat 6 cable to
the RJ-45 jack of the receiver.
5. Connect the 5 VDC power
supplies to the transmitter and
to the receiver.
6. Attach the Super IR TX pigtail to
the transmitter and the Super
IR RX pigtail to the receiver.
Position the IR TX to illuminate
the IR receptor of the source
and position the IR RX close
to the HDTV so that the IR
hand-held remote can be easily
aimed at it.
7. Turn on the source and the
display and check video
resolution using the information
button on the HDTV hand-held
remote.
8. Control the source using its
hand-held remote. You can also
program a universal remote for
these functions.
