Toner Cable RTC 360 Cable Pro RTC 360 Crimp Tool User Manual
Page 2
Telephone:
Nationwide:
Fax:
E-mail:
Internet:
215-675-2053
800-523-5947
215-675-7543
http://www.tonercable.com
Toner Cable Equipment, Inc.
Specifications Subject To Change Without Notice.
Ca
ble Pr
o R
T
C 360 and F-Conn Connector
s
FFC
C FF-C
CO
ON
NN
N IIN
ND
DU
USSTTR
RIIEESS R
RG
G-6
6 &
& R
RG
G-5
59
9 FF C
CO
ON
NN
NEEC
CTTO
OR
RSS
FEATURES

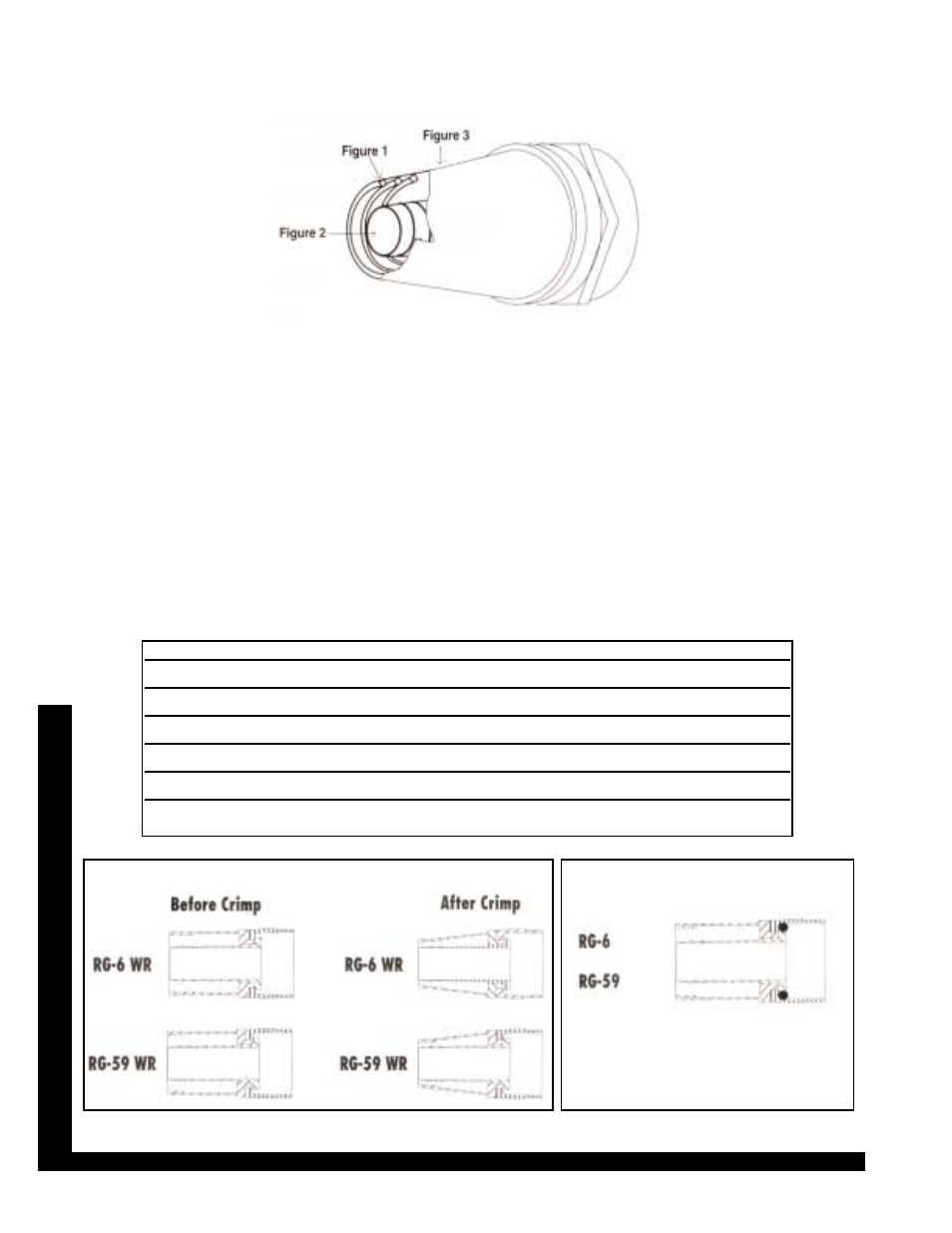

1. Internal Rings are drawn into smaller rings around the outer jacket. This forms
two small, half O-Rings out of the cable’s outer jacket (see Figure 1).
2. The internal post is extended to provide a larger surface area at the crimp point
(See Figure 2).
3. This reduction provides space for the braid to be folded back. The braid cannot
reach the crimp area (Figure 1), and therefore the O-Ring seal is preserved. By
keeping the loose braid out of the crimp area, we reduce the chance of uneven
braid distribution that might cause an impedance problem. The 360° crimp pro-
vides exceptional pull out strength while creating a 360° tight electrical connec-
tion (See Figure 3).
WR SERIES
WRO SERIES
The WRO Series incorporates an
O-Ring in the nut for added sealing
against moisture and dirt.
CONNECTOR
I.D.
O-RING
CABLE SIZE
UNIVERSAL
RG-6 NR
.342
NO
QUAD TO 67%
YES
RG-6 NRO
.342
YES
QUAD TO 67%
YES
RG-6 WR
.336
NO
TRI TO 67%
YES
RG-59 WR
.312
NO
QUAD TO 53%
YES
RG-6 WRO
.336
YES
TRI TO 67%
YES
RG-59 WRO
.312
YES
QUAD TO 53%
YES
Connectors to use with CABLE PRO RTC-360 Crimper
