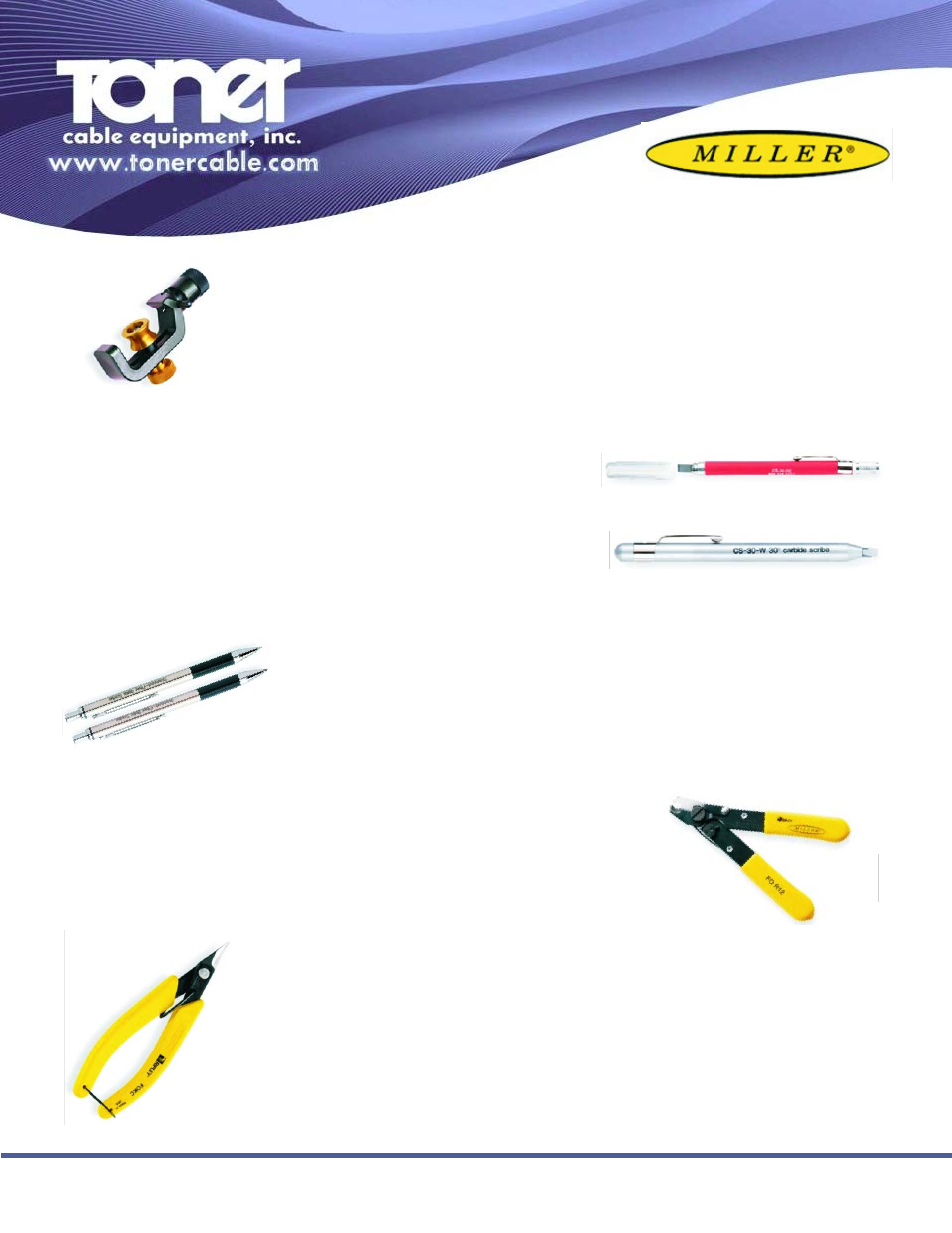

Fiber Optic Tools
ACS Armored Cable Slitter
Professional grade tool, ideal for slitting the corrugated copper, steel or aluminum armor layer on
fiber feeder, central tube, stranded loose tube fiber optic cables and other armored cables. Tool
slits outer polyethylene jacket and armor in one operation. Performs longitudinal slitting and cir-
cumferential (ringing) for end stripping blade rotates 90° by activating blade lever, allowing easy
mid-span preparation (ringing and slitting). Adjustable from 0.315” (8 mm) to 1.125” (28.6 mm)
cable O.D. Adjustable blade depths to accommodate different cable coverings “roller” style cable
follower provides cable stability and allows for easier tool movement along the cable rugged
anodized aluminum and steel construction.
CS-30-DE Double End Carbide Fiber Scribe
– Reversible carbide blade edged on both ends to double the life of the tool
– 5 mm wide blade wider than conventional scribe blades for greater visibility
CS-30-W Carbide Tip Fiber Optic Scribe
– The CS-30-W is a 30-degree wedge-tip carbide scribe 3.8 mm wide for long life
and simple fiber termination
– Housed in a rugged, anodized aluminum casing 112 mm long and 25 mm in
diameter, the CS-30-W fits comfortably in either hand and in your pocket or tool kit
ACS
CS-30-W
DS-60-C and DS-90-W Diamond-Tip Fiber Optic Scribes
– Quality fiber optic scribes featuring a protective retractable barrel with pocket clip and a
stainless steel mounted diamond tip in your choice of conical or wedge shapes
– These scribes are specially made for the "scratch and pull" technique of scribing optical fiber.
The wedge shape provides a more durable edge.
– The DS-60-C is a 60° Cone Angle-Diamond Tip Retractable Scribe, Part No.: 46137
– The DS-90-W is a 90° Wedge-Diamond Tip Retractable Scribe, Part No.: 46140
– Made in the USA
FO-R12 Fiber Ribbon Access Tool
– Removes outer jackets from 12 count fiber ribbons
– Factory set, requires no adjustment
– Prevents scratching and nicking of optical fibers
– All cutting surfaces are precision formed, hardened, tempered and ground assuring
precise buffer removal
– Tools for other fiber counts available upon request
FOKC: Fiber Optic Kevlar® Cutter
– Designed to cut Kevlar® strength members in fiber optic cables
– Powerful quick cutting action
– Full serrated edge for consistent, fast and clean cuts
– Lightweight and compact
– Return spring designed for precise repeated cuts
– Ergonomic handles with cushioned non-slip grips
– Made of high carbon steel specially treated for long life and trouble free cuts
– Made in the USA
DS-60-C
DS-90-W
FO-R12
FOKC
CS-30-DE
