Sna

p-N-Seal Compr

ession Connector

s & T

ools

215-675-2053

800-523-5947

215-675-7543

[email protected]

http://www.tonercable.com

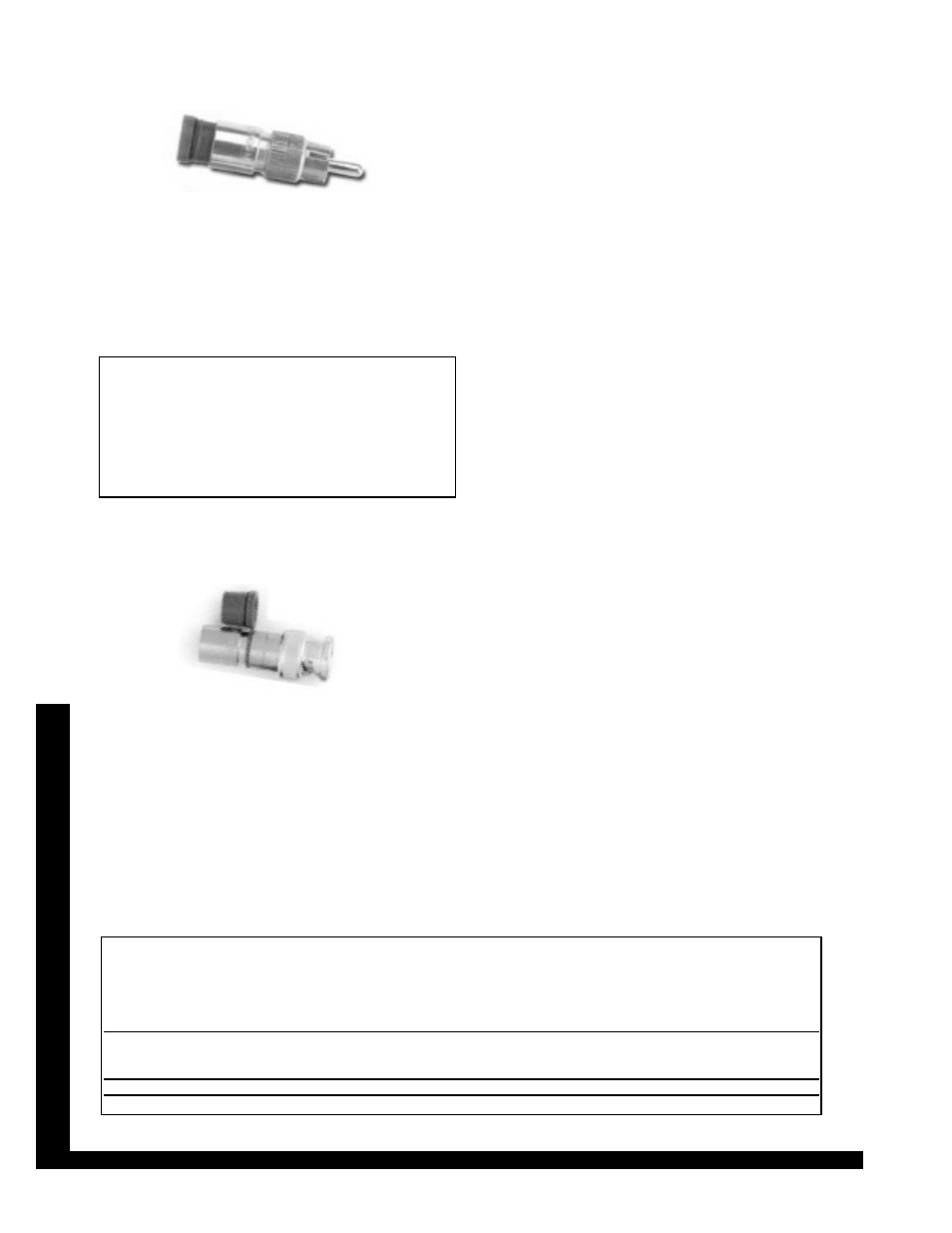

Extending the use of our Snap-N-Seal® technology,
Thomas & Betts introduces the Snap-N-Seal® RCA
connector. Designed to interface with all standard RCA
female jacks and utilizing standard or tri-shield SCTE
specification 6 series drop cable, this product gives the
installer maximum flexibility for creating and placing
audio cables in home entertainment systems.

Model Sleeve

Tool*

Number

Color

SNS1P6RMBL

Blue

1,2

SNS1P6RMY

Yellow

1,2

SNS1P6RMW

White

1,2

SNS1P6RMR

Red 1,2

SNS1P6RMG

Green

1,2

SNS1P6RMBK

Black

1,2

Introducing super premium Snap-N-Seal® precision
BNC compression connectors from Thomas & Betts.
Four connector options are available. SNS59HECBNC
designed for applications using CommScope® series
F59HEC-2 Headend Cable, S59HEC Headend Cable,
or Times Fiber Communications, Inc. series 02241V
Headend Cables. SNS59HECBNCB designed for
applications using Belden® series 1505A Serial Digital
Video Cable, 9167 Broadband Headend Cable or
Belden® 9275 or 8241 cables. SNS6BNC designed for
applications using RG6 cable. SNS6QSBNC designed
for applications using RG6 quad shield cable.

Model Cable

Center

Cond

Post

Sleeve

Tool*

Number

Types

Dia Range

Color

SNS59HECBNC

Commscope F59 HEC-2

0.22 to .036

0.154

0.290

White

1,2

Times Fiber 02240V
Times Fiber 02241V
Commscope S59 HEC

SNS59HECBNCB

Belden 9167 Broadband Headend

0.22 to 0.36

0.154

0.253

Orange

1,2

Belden 1505A Serial Digital Video
Belden 8241

SNS6BNC

RG6

0.32 to .040

0.191

0.290

Blue

1,2

SNS6QSBNC

RG6QS

0.32 to .040

0.191

0.315

Violet

1,2

Technical Specification

PHYSICAL PROPERTIES
Body Components:

Brass

Body Finish:

Cadmium

Terminal/Contact:

Brass Beryllium Copper

Insulators:

TPX

ELECTRICAL PROPERTIES
Return Loss:

-30 dB up to 20 MHz Typical

Insertion Loss:

-0.05 dB up to 20 MHz Typical

RFI Shielding:

-120 dB Typical up to 20 MHz Typical

MECHANICAL PROPERTIES
Cable Retention :

40 lbs minimum

Complies to SCTE IPS-SP-404

Cable Insertion Force:

<20 lbs

ENVIRONMENTAL PROPERTIES
Temperature Rating:

-40°F (-40°C) to 140°F (60°C)

RCA Type Male Compression Connectors

BNC Compression Connectors

Technical Specification

PHYSICAL PROPERTIES
Body Components:

Brass CDA 360

Body Finish:

Nickel

Nut:

Zinc Alloy with Nickel Plate

Terminal/Contact: Beryllium

Copper

with Silver Plate

Insulators:

TPX

O-Rings: Ethylene

Propylene

ELECTRICAL PROPERTIES
Return Loss:

-30 dB up to 1 GHz Typical
