DeLOCK 89251 - Manual

DATA SHEET W W W. D E L O C K . C O M
Description
Specification
© 2010 by Delock. All names and symbols mentioned here are property of the respective producer.
Printing errors, changes and errors excepted.
Images
Ref.
EAN
Country of origin
Customs tariff number
PCI / PCI Express card >
2x SATA 2.5 HDD/SSD

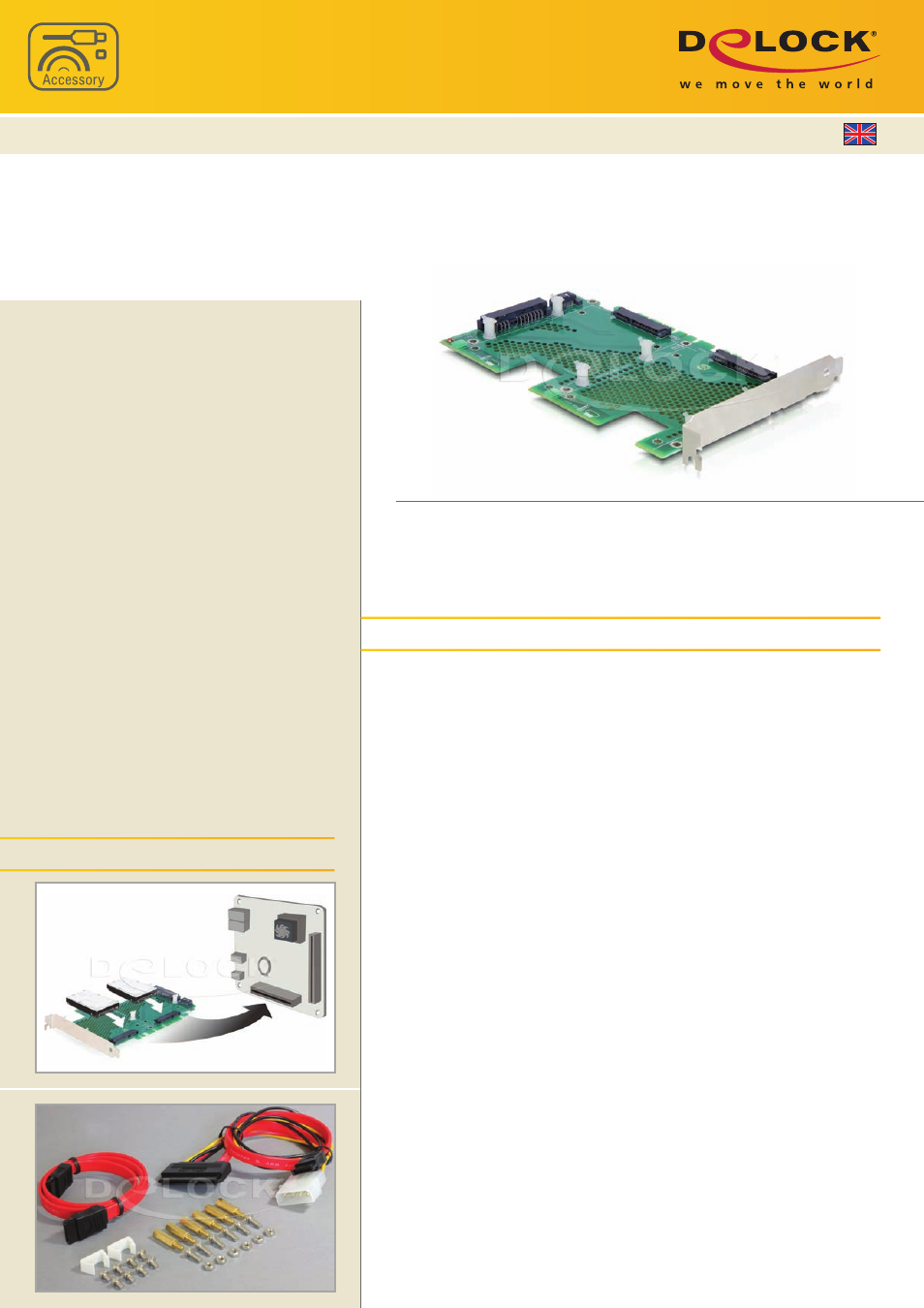

This PCI Express card by Delock is
a SATA backplane and can either be
inserted into a PCI or PCI Express slot.
It enables the installation of up to two
SATA 2.5 drives. e.g. HDD or SSD.
The SATA drives can be connected to
the two SATA 22pin ports and over the
third SATA 22pin + 7pin port to your
mainboard. The card provides holes
for cooling the drives and 2 LEDs
for access indication. By using the
included extension pins you can use
an additional PCI Express card and
install up to two drives. Together with
the existing card you can build up e.g. a
RAID system.
• Suitable for PCI Express and PCI slot
• For connection of SATA 2.5 HDD and SSD
• Connection: 2x SATA 22pin for 2 SATA drives
(SATA 15pin power + SATA 7pin data)
1x SATA 22pin + 1x SATA 7pin mainboard connection
• 2x LED indicator for access
• 6 holes for extension pins
• Cooling holes
• Dimension: 171 x 113 x 23 mm
System requirement
• A free PCI or PCI Express slot
Package content
• PCI Express card
• 6 extension pins
• SATA 7pin cable
• SATA 22pin cable
Package
• Delock Poly bag
89251
4043619892518
Taiwan
84733020
