DeLOCK 89304 - Manual

DATA SHEET
WWW.DELOCK.COM
Description
© 2011 by Delock. All names and symbols mentioned here are property of the respective producer.
Printing errors, changes and errors excepted.
Specification
Images
Ref.
EAN
Country of origin
Customs tariff number

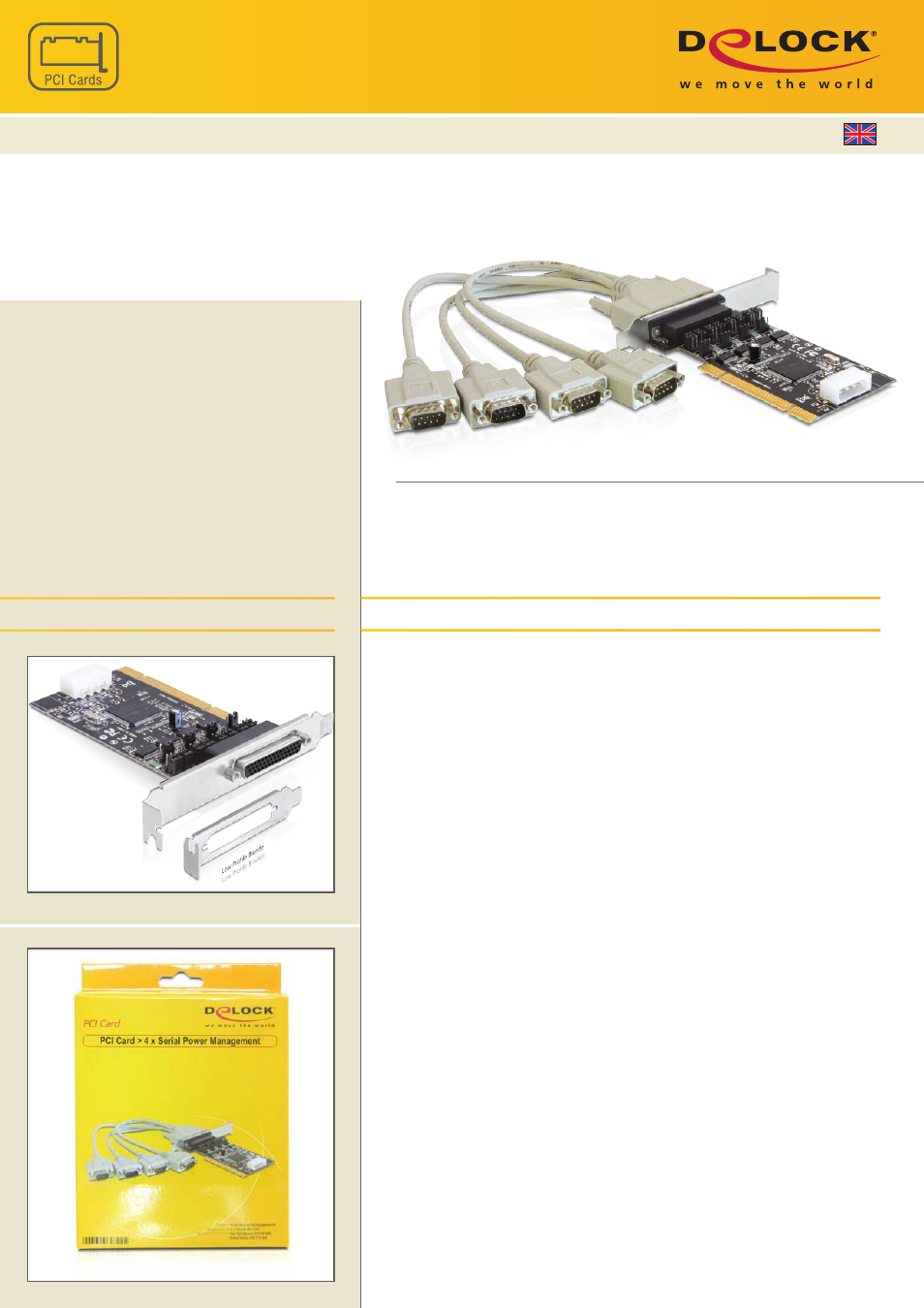

The Delock PCI card expands your
PC by four external serial ports. The
serial ports support a voltage of 5 V
and 12 V, which can be set through
the jumper. Thus you do not require
an additional power supply for the
connected devices.
• Chipset: Oxford OXuPCI954
• Connector: 4 x serial RS-232 DB9 male
1 x internal power connector 4 pin Molex male
• Serial connector will be lead outside through a cable
• Data transfer rate up to 230.4 Kb/s
• Compatible with 16C950 UART
• FIFO: 128 byte
• ±15KV ESD protection on all signal pins
• 5 V or 12 V voltage can be set individually for each port through
the jumper (Pin 1/4/8/9)
• I/O address and IRQ assigned by BIOS
• 32-Bit PCI standard 3.0
• Also suitable for a 64-bit PCI slot
System requirements
• Windows XP/XP-64/Vista/Vista-64/7/7-64
• PC with one free PCI Slot
• Power supply with a free Molex power connector
Package content
• PCI card, 1 serial connecting cable
• Low profile bracket, Driver CD, User manual
Package
• Retail Box
PCI Card > 4 x Serial
with power management
89304
4043619893041
China
84733020
