DATA SHEET

W W W. D E L O C K . C O M

Description

© 2011 by Delock. All names and symbols mentioned here are property of the respective producer.

Printing errors, changes and errors excepted.

Specification

Images

Ref.
EAN
Country of origin
Customs tariff number

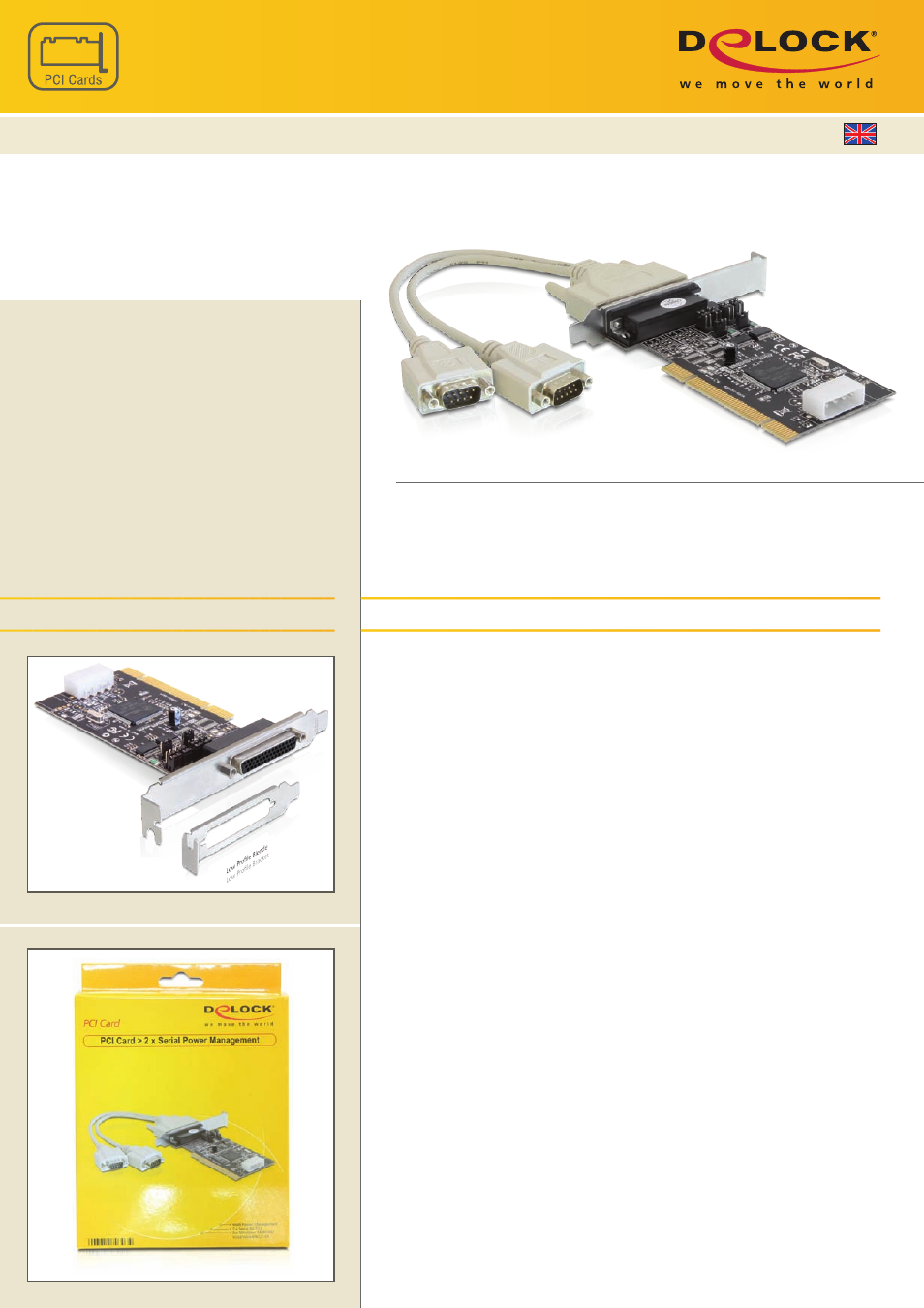

The Delock PCI card expands your

PC by two external serial ports. The
serial ports support a voltage of 5 V
and 12 V, which can be set through

the jumper. Thus you do not require

an additional power supply for the
connected devices.

• Chipset: Oxford OXuPCI952
• Connector: 2 x serial RS-232 DB9 male

1 x internal power connector 4 pin Molex male

• Serial connector will be lead outside through a cable
• Data transfer rate up to 230.4 Kb/s
• Compatible with 16C950 UART
• FIFO: 128 byte
• ±15KV ESD protection on all signal pins
• 5 V or 12 V voltage can be set individually for each port
through the jumper (Pin 1/4/8/9)
• I/O address and IRQ assigned by BIOS
• 32-Bit PCI standard 3.0
• Also suitable for a 64-bit PCI slot

System requirements
• Windows XP/XP-64/Vista/Vista-64/7/7-64
• PC with one free PCI Slot
• Power supply with a free Molex power connector

Package content
• PCI card, 1 serial connecting cable,
• Low profile bracket, Driver CD, User manual

Package
• Retail Box

89303
4043619893034
China
84733020

PCI Card > 2 x Serial
with power management
