DeLOCK 89305 - Manual

DATA SHEET W W W. D E L O C K . C O M
Description
© 2011 by Delock. All names and symbols mentioned here are property of the respective producer.
Printing errors, changes and errors excepted.
Specification
Images
Ref.
EAN
Country of origin
Customs tariff number

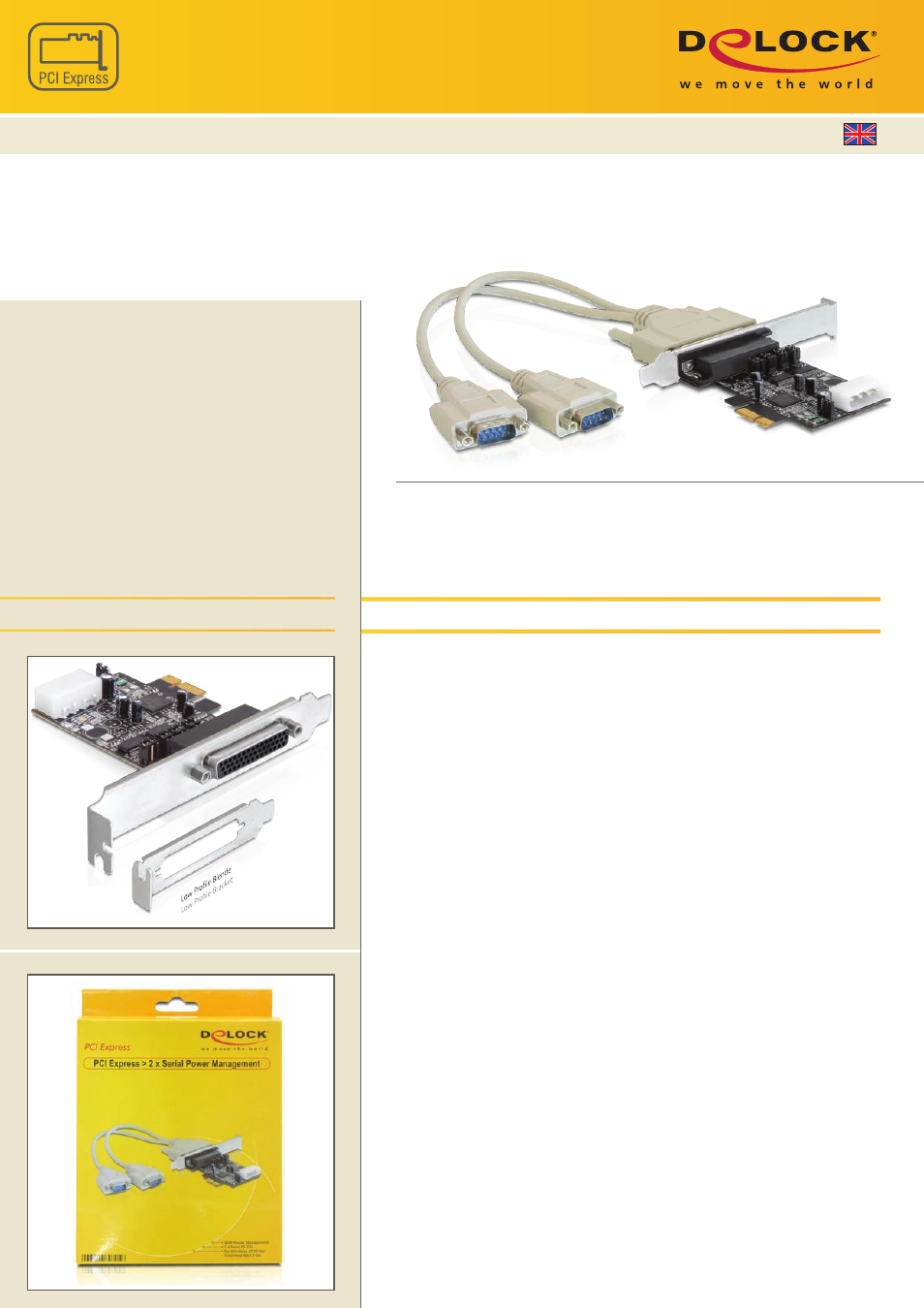

PCI Express Card > 2 x Serial
with power management
The Delock PCI Express card expands
your PC by two external serial ports.
The serial ports support a voltage of
5 V and 12 V, which can be set through
the jumper. Thus you do not require
an additional power supply for the
connected devices.
• Chipset: Oxford OXPCIe952
• Connector: 2 x serial RS-232 DB9 male
1 x internal power connector 4 pin Molex male
• Serial connector will be lead outside through a cable
• Data transfer rate up to 230.4 Kb/s
• Compatible with 16C950 UART
• FIFO: 128 byte
• ±15KV ESD protection on all signal pins
• 5 V or 12 V voltage can be set individually for each port through
the jumper (Pin 1/4/8/9)
• I/O address and IRQ assigned by BIOS
• PCI Express x1, V1.1
System requirements
• Windows XP/XP-64/Vista/Vista-64/7/7-64
• PC with one free PCI Express Slot
• Power supply with a free Molex power connector
Package content
• PCI Express card, 1 serial connecting cable
• Low profile bracket, Driver CD, User manual
Package
• Retail Box
89305
4043619893058
China
84733020
