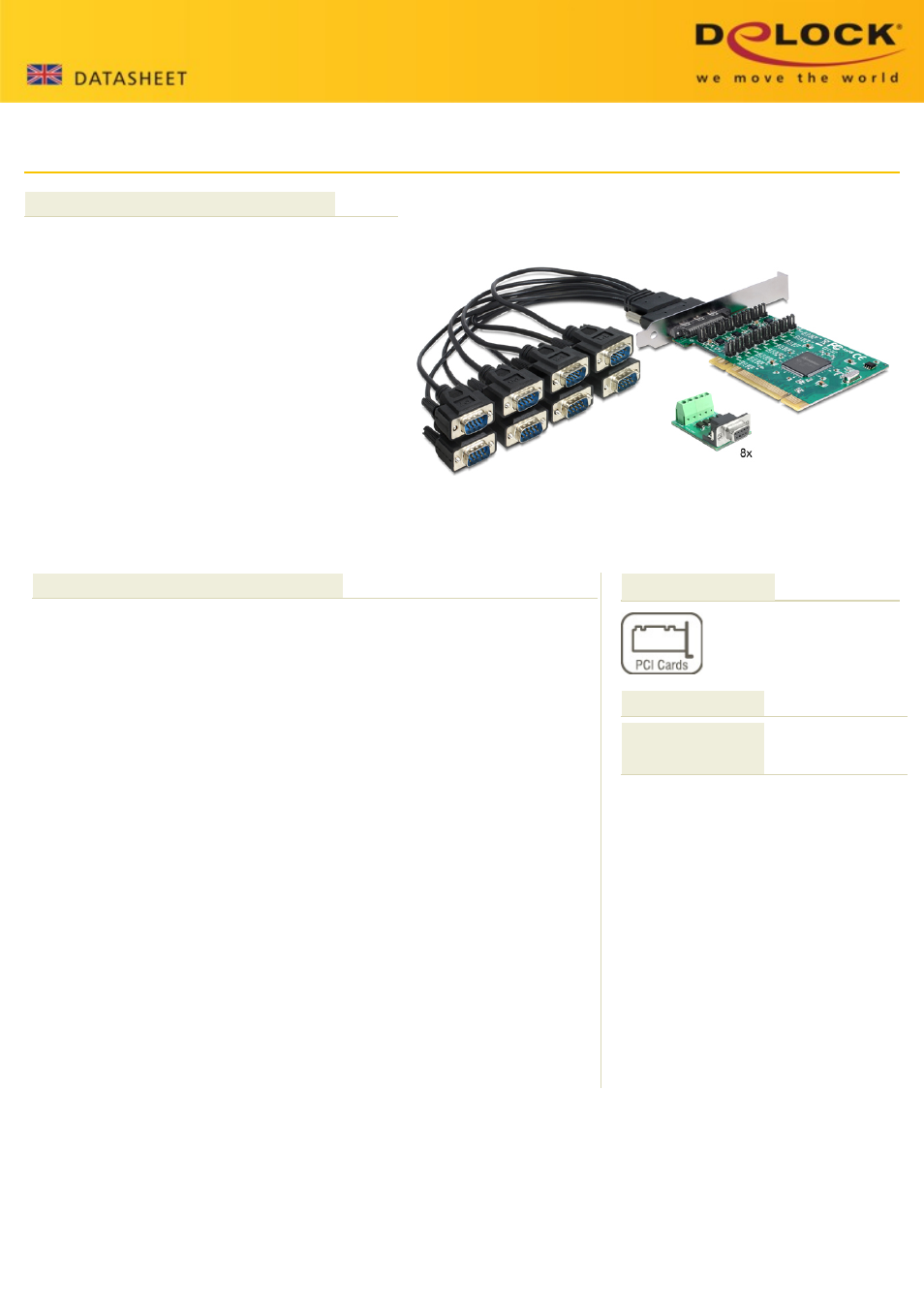

Delock PCI Card > 8 x Serial RS-422/485 High Speed 921K 600 W Surge

Description

The Delock PCI card expands your system by eight High
Speed RS-422/485 ports. Use this card for applications like
data logging, machine control systems, automation,
development or communication. By the extensive surge
protection and the wide temperature range this card can be
used in the industrial area.

Specification

• Chipset: Systembase SB16C1058PCI
• Connector:
external:
1 x VHDCI 68 Pin female
connecting cable: VHDCI 68 pin male > 8 x Serial RS-422/485
Sub-D 9 pin male
internal:
1 x PCI
• Baud rate: up to 921.6 Kb/s
• Compatible to 16C550 UART
• FIFO 256 Byte
• Data bit: 5, 6, 7, 8
• Stop bit: 1, 1.5, 2
• Parity: None, Even, Odd, Space, Mark
• Flow Control: RTS / CTS, XON / XOFF
• Operating temperature: -30 °C ~ +75 °C
• Storage temperature: -40 °C ~ +85 °C
• Ambient relative humidity max. 95 % (non-condensing)
• 15 kV ESD protection for all signals
• Additional external surge protection 600 W for RS-422/485
• Bus: universal 32/64 Bit 3.3/5 V PCI version 2.1, 2.2, 2.3 and PCI-X
• I/O address and IRQ assigned by the system

Item No. 89332

EAN

4043619893324

Country of origin

Taiwan, Republic of

China
