DeLOCK 65286 User Manual
Connector dualport female hdmi + displayport, Images
DATA SHEET
W W W. D E L O C K . C O M
Description
Specification
© 2011 by Delock. All names and symbols mentioned here are property of the respective producer.
Printing errors, changes and errors excepted.
Images
Ref.
EAN
Country of origin
Customs tariff number

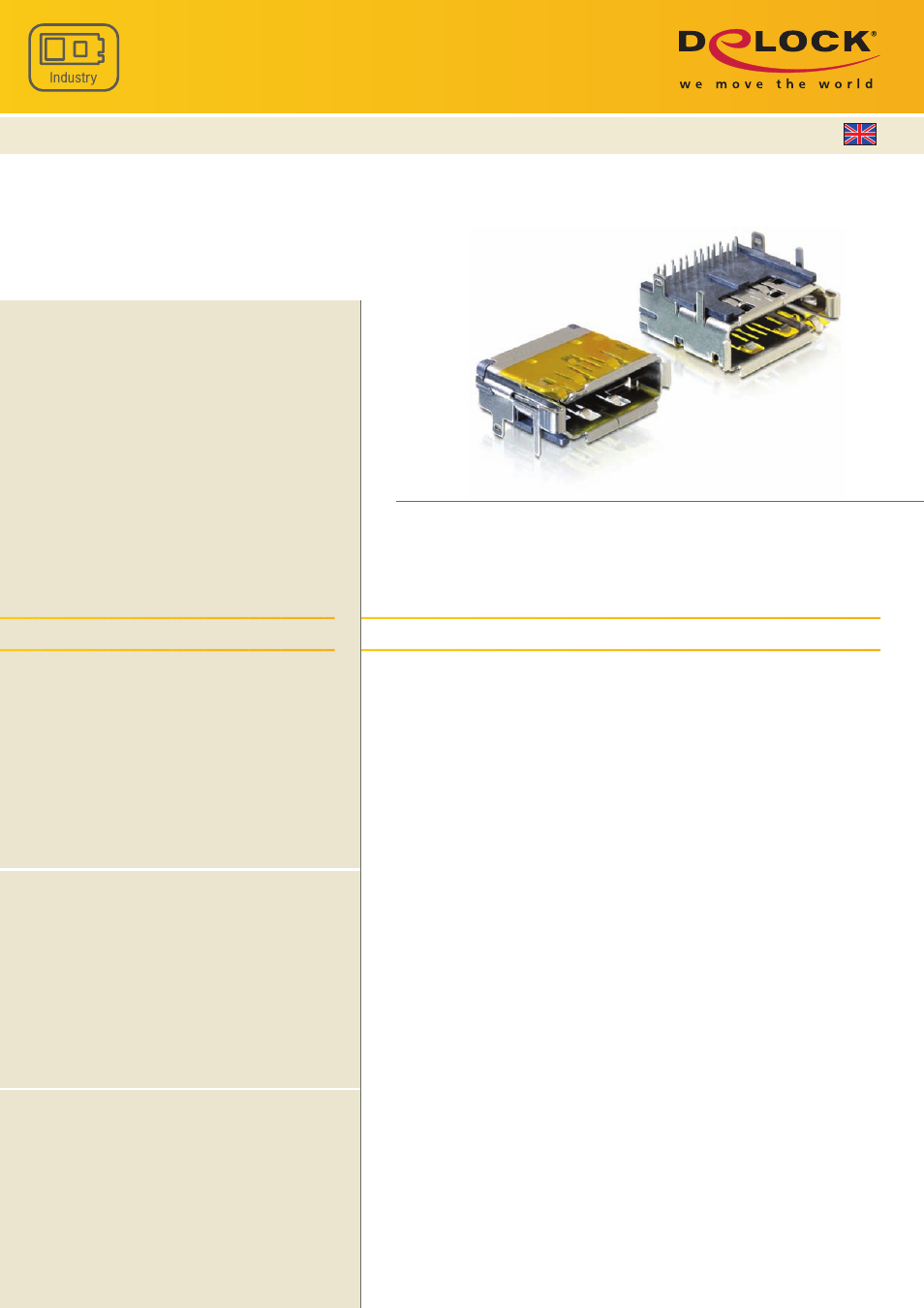

Connector Dualport
female HDMI + Displayport
This connector by Delock can be
soldered on your PCB. The combination
of DP and HDMI port enables you to
connect a DP cable or a HDMI cable.
• Connector: HDMI + Displayport > 21 pin DIP type
• THT PCB assembly
• Solder pin 1-20: Ø 0.5 mm
• Solder pin 21: Ø 0.85 mm
• Housing material: thermoplastic high temp UL 94-V0
• Contact area: gold-plated
• Dimension (LxWxHeight on PCB):
15.85 mm x 19.05 mm 7.26 mm
System requirement
• PCB with HDMI + Displayport through holes
Package content
• Connector
Package
• Delock poly bag
65286
4043619652860
Taiwan
84718000
