DeLOCK 65285 - Manual

DATA SHEET W W W. D E L O C K . C O M
Description
Specification
© 2011 by Delock. All names and symbols mentioned here are property of the respective producer.
Printing errors, changes and errors excepted.
Ref.
EAN
Country of origin
Customs tariff number

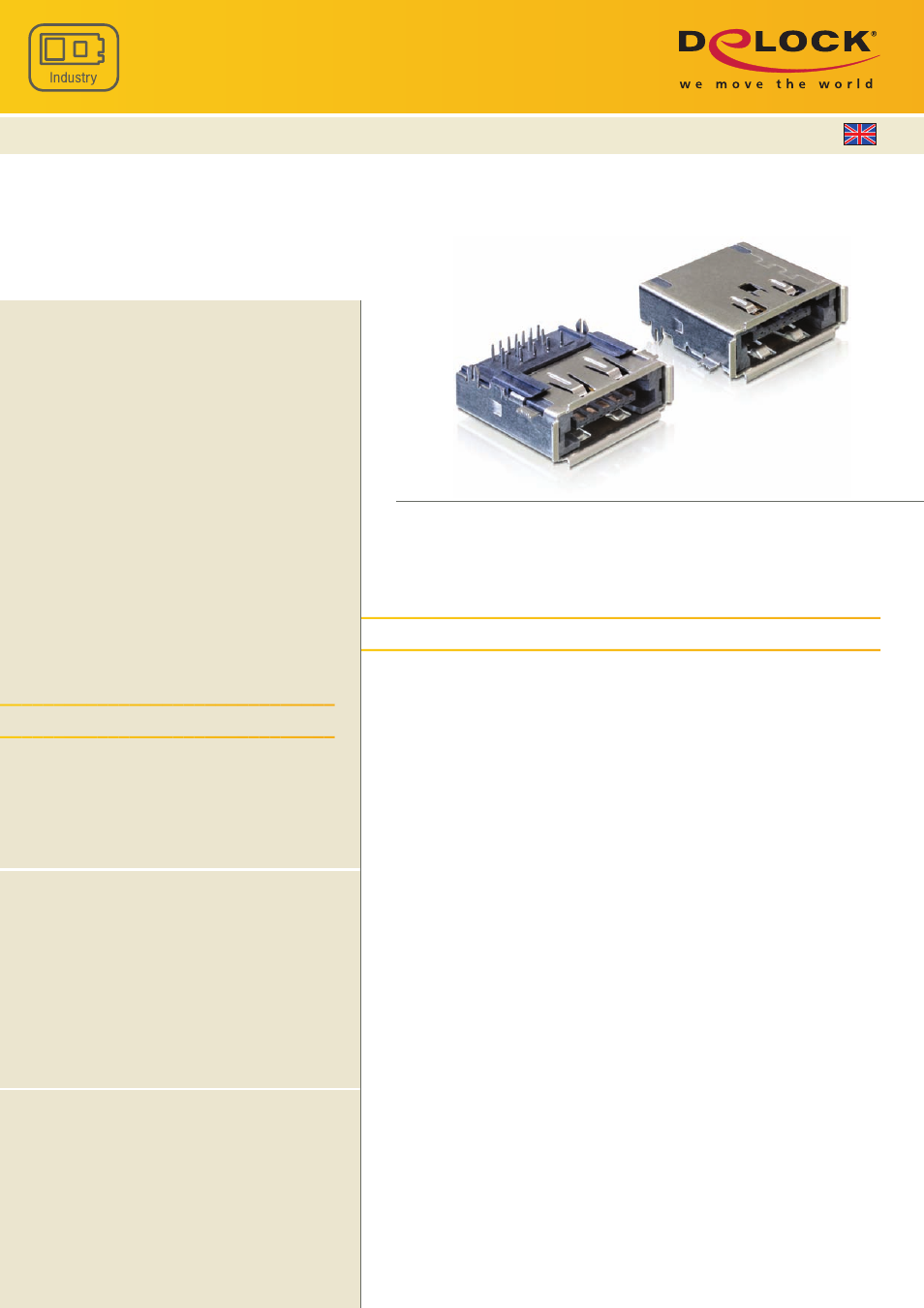

Images
Connector Multiport
female eSATAp + USB 3.0
This connector by Delock can be
soldered on your PCB. The Multiport is
a combination of eSATA and USB 3.0
interface, which supports a fast data
transfer and a voltage supply of up to 5
V. The Multiport interface supports up to
four connecting options:
1. USB 3.0 (Power via USB)
2. USB 2.0 (Power via USB)
3. eSATAp (Power Over eSATA combo-
connection eSATA+USB - eSATA for
data and USB for power)
4. eSATA (eSATA for data and power
via USB)
• Connector: eSATAp + USB 3.0 female > 16 pin DIP type
• THT PCB assembly
• Solder pin 1-4 (USB 2.0): Ø 0.92 mm
• Solder pin 5-11 (eSATA): Ø 0.75 mm, pitch: 1.27 mm
• Solder pin 12-16 (USB 3.0): Ø 0.92 mm, pitch: 2.25 mm
• Housing material: thermoplastic high temp UL 94-V0
• Operating temperature: -40 to +85 °C
• Contact area (eSATAp + USB): gold-plated
• Dimension (LxWxH): 18.39 mm x 20.42 mm 7.7 mm
System requirement
• PCB with eSATAp + USB 3.0 through holes
Package content
• Connector
Package
• Delock poly bag
65285
4043619652853
Taiwan
84718000
