DeLOCK 65283 User Manual
Connector esatap female esatap + usb 2.0, Images
DATA SHEET
W W W. D E L O C K . C O M
Description
Specification
© 2011 by Delock. All names and symbols mentioned here are property of the respective producer.
Printing errors, changes and errors excepted.
Images
Ref.
EAN
Country of origin
Customs tariff number

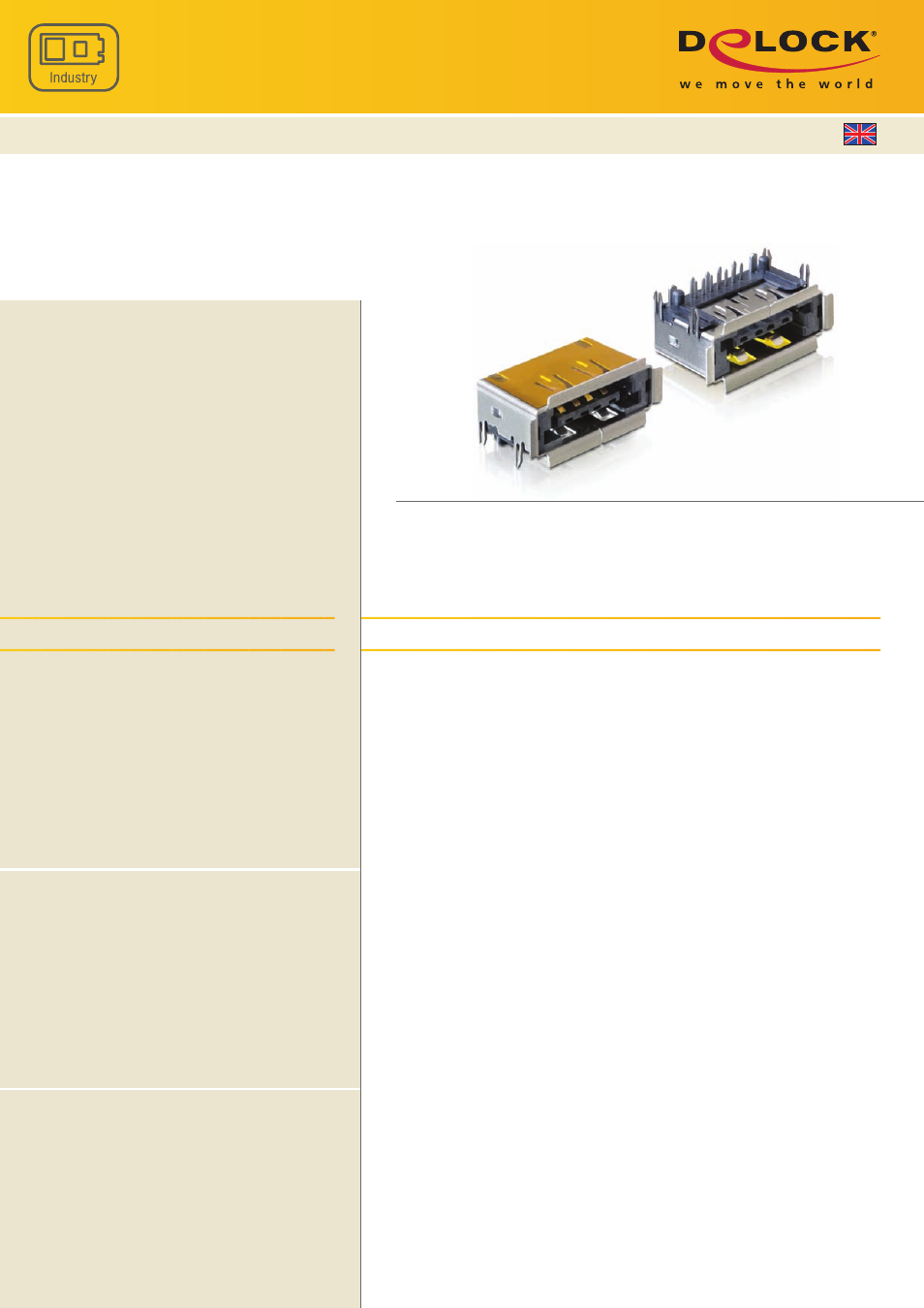

Connector eSATAp
female eSATAp + USB 2.0
This connector by Delock can be
soldered on your PCB. Due to the
multifunctional Power Over eSATA
interface, you have 3 options for
connection:
1. Power Over eSATA port
2. USB port
3. eSATA port + USB port for power
supply
• Connector: eSATAp + USB 2.0 female > 11 pin DIP type
• THT PCB assembly
• USB solder pins: Ø 0.6 mm
• eSATA solder pins: Ø 0.44 mm, pitch: 1.27 mm
• Housing material: thermoplastic high temp UL 94-V0
• Operating temperature: -40 to +85 °C
• Contact area (eSATA + USB): gold-plated
• Dimension (LxWxH): 18.7 mm x 11.35 mm 8.68 mm
System requirement
• PCB with eSATA + USB 2.0 through holes
Package content
• Connector
Package
• Delock poly bag
65283
4043619652839
Taiwan
84718000
