DeLOCK 61651 - Manual

DATA SHEET WWW.DELOCK.COM
Description
Specification
Ref.
EAN
© 2008 by Delock. All names and symbols mentioned here are property of the respective producer.
Printing errors, changes and errors excepted.

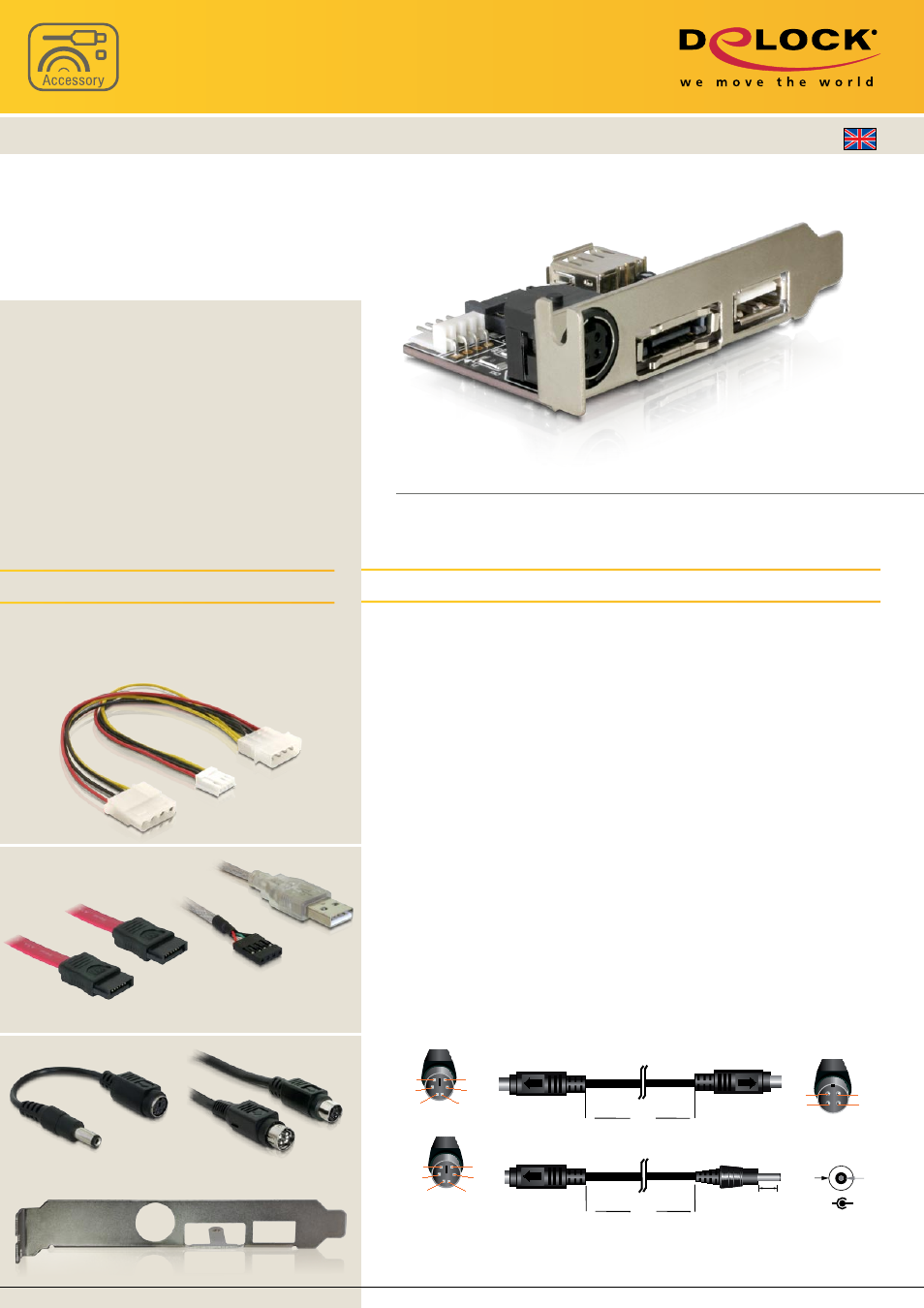

Images
Slotbracket
USB / SATA / POWER
61651
4043619616510
This slot bracket enables you to can
lead out your internal +5V and +12
power as well as USB and SATA. Thus
you cannot only connect external HDD
drives but also devices which require
extra power but you don’t want to use
an external power supply. Respective
adapters can be found in the package
content for 12V, DIN 4-pin and Mini-Din
6-pin.
Specification
• Internal: 1x USB, 1x SATA, 1x Power 4-Pin
• External: 1x USB, 1x eSATA, 1x Power 4 DIN / Power 6 DIN /
Power 12V connector
• Incl. Low Profile bracket for Mini-PCs
System requirements
• PC with one free Slot
Package content
• Slot bracket
• Low profile Slot bracket, SATA cable
• Power cable DIN 4-pin (M) to Mini-DIN 6-pin (M)
• Power cable Mini-DIN 6-pin (F) to DC +12 V
• USB cable (M) A to 4-Pin
• Y-power cable DC +12V/+5V
• User manual
Package
• Retail Box
O.D. 2.0mm
I.D. 5.5mm
Dimension of DC plug
-
+
DC12 V
11,6 mm
4:DC+12V
2:GND
1:GND
3:DC+12V
5:DC+5V
6:DC+5V
2:GND
1:DC+12V 4:DC+5V
3:GND
180 cm
7,5 cm
3:DC+12V
5:NC*
6:NC*
4:DC+12V
2:GND
1:GND
*NC=No Connection
