Technical specifications

Video

CCD Image Sensor

1/3 in SuperHAD CCD

Type

Color / monochrome, video level switching

Resolution

380 TVL

Effective Pixels (H x V)

PAL: 500 x 582, NTSC: 510 x 492

Night-Time Sensitivity

0 lux (infrared on)

Electronics Iris

1/50 to 1/100,000 s (PAL),

1/60 to 1/100,000 s (NTSC)

Output Signal

1 Vpp composite video, 75 ohm

S/N Ratio

Greater than 45 dB

Gamma

0.45

Lens

Fixed 4 mm lens

LEDs

Infrared array, photocell-controlled

Wavelength

850 nm

Number of LEDs

Electrical

Voltage

12 VDC

Power Draw

250 mA to 420 mA.

Power Supply

Not included

Mechanical

Construction

Aluminum

Finish

Silver-gray

Sunshield

Included

Bracket

Pan-tilt bracket included

Weight

0.39 kg (0.86 lb)

Dimensions

64.5 x 67 x 112 mm
(2.5 x 2.6 x 4.4 in.)

Environmental

Operation Temperature

Range

-30 ºC to +50 ºC (-22 ºF to +122 ºF)

Environment

IP67 compliant

Certifications and approvals

Region

Certification

Europe

Standards

ANSI C63.4: 2003
FCC Part 15 subpart B, Class A

UL 60065, 7th Edition. 2007-12-11

CAN/CSA-C22.2 No. 60065-03, 1st Edition,
2006-04 + A1:2006

EN55022:2006, Class A

EN50130-4:1995+A1:1998+A2:2003

EN61000-3-2:2006

EN61000-3-3:1995 + A1:2001 + A2:2005

LVD 2006/95/EC
EN60065:2002 + A1:2006 + A11:2008

IP67, IEC 60529 (2001)

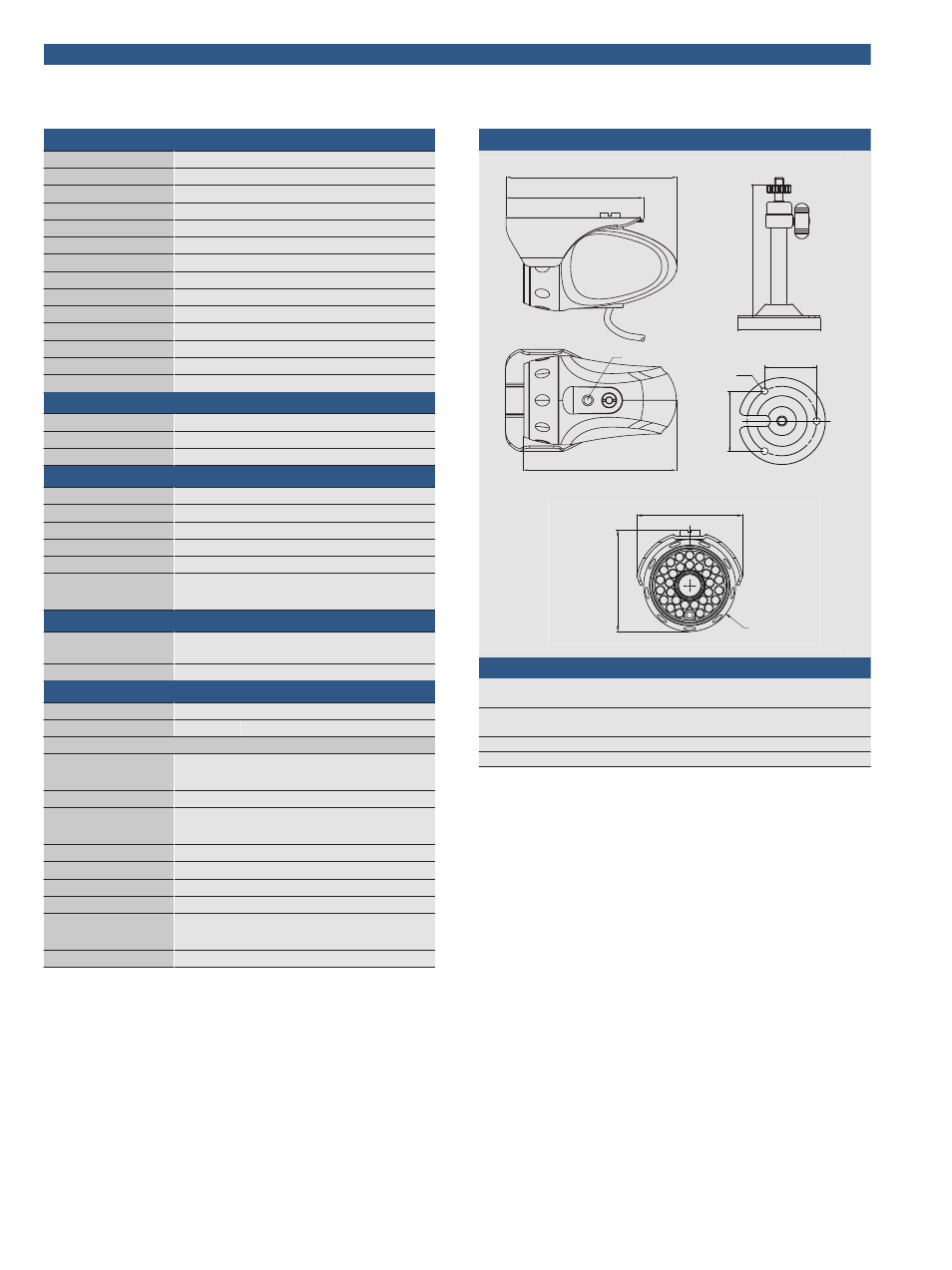

Installation/configuration notes

112 (4.41)

90 (3.54)

67 (2.64)

64.5

(2.54)

Ш58
(2.28)

(3.82)

Ш60 (2.36)

Ш4.5

(0.18)

.6 (

1.6

36 (1.42)

mm (in)

100.5 (3.96)

1/4”-20 UNC

Ordering information

VTI-214F04-4 WZ14 Integrated IR Bullet

Camera, NTSC

VTI-214F04-4

VTI-214F04-3 WZ14 Integrated IR Bullet

Camera, PAL

VTI-214F04-3

UPA-1220-60 Power Supply

UPA-1220-60

UPA-1220-50 Power Supply

UPA-1220-50
